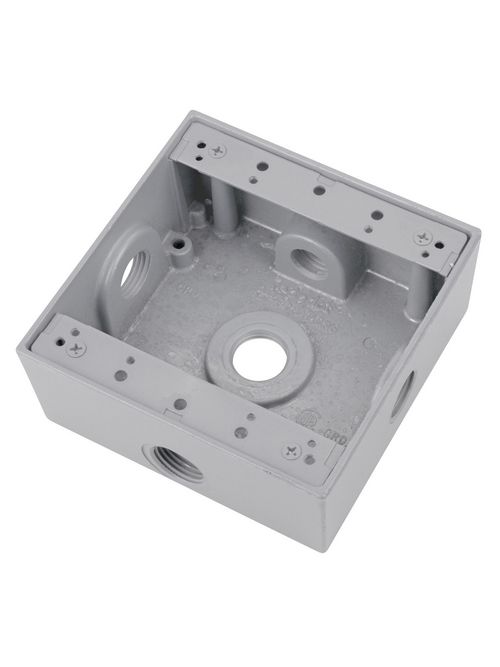

Red Dot 2IH5S2-2 5- Hole 2-Gang 1/2 Inch Hubs Raintight Device Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,379.99/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Thomas & Betts
Mfg Catalog # 2IH5S2-2
Codale Part # 122091

Features

  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Clean cover edges provide good gasket sealing.
  • Precision cast and machined surfaces permit safer wire pulling.
  • Clear UL and cubic content markings speed approval by inspectors
  • Convenient mounting lugs for a variety of mounting methods
  • Securely fastened mounting plates reduce costly call backs

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121305 Weatherproof boxes
  • IGCC: 4429 Weatherproof boxes
  • Brand Name: Red Dot
  • Type: Device Boxes, Covers & Accessories
  • Special Features: Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Application: Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
  • Standard: UL E28688
  • Number Of Outlet: 5
  • Material: Aluminum Die Cast
  • Color: Silver
  • Cubic Capacity: 31.8

European Specifications (ETIM)

  • ETIM: EC002601 Box/housing for built-in mounting in the wall/ceiling
  • Mounting method: Other
  • Shape: Rectangular
  • Construction type: Device connection box (round/square)
  • Equipped with: None
  • Length: 115.8748mm
  • Width: 117.475mm
  • Depth: 52.3748-52.3748mm
  • Mounting switching equipment: Screwing
  • With screws: N
  • Pipe locking: N
  • Pipe locking optional: N
  • Inlet from the rear: Y
  • Number of inlets: 5
  • Material: Other
  • Colour: Other
  • Cover: None
  • Cover attachment: Not applicable
  • Sealable: N

Packaging

  • Inner Quantity: 1
  • Inner Dimensions (inches): 4.75x4.63x2.13
  • Outer Quantity: 10
  • Outer Dimensions (inches): 10.5x9.8x5.3
  • Weight Uom: 0.81 lbs. Each

Overview

Codale Part No. 122091
Product Long Description Two Gang Universal Weatherproof Box, 31.8 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 5 Outlets (2-Sides) with 1 on Top, Bottom, Both Sides, and Back
Material Die Cast Aluminum
Color Silver
Finish Powder-Coated
Product UPC 04226939398
Finish Anodized
Color Silver Gray
Type 5-Outlet, Universal, 5-Inlet, Rectangular, 5-Hole, Sealable
Material Aluminum
Applications Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Depth 51 mm
Family Brand Name Red Dot
Number of Gangs 2 Gang
Standard UL E28688
Length 115.874 mm
Width 117.475 mm
Construction Type Device Connection Box (round/square)
Shape Rectangle
Box Quantity 10
