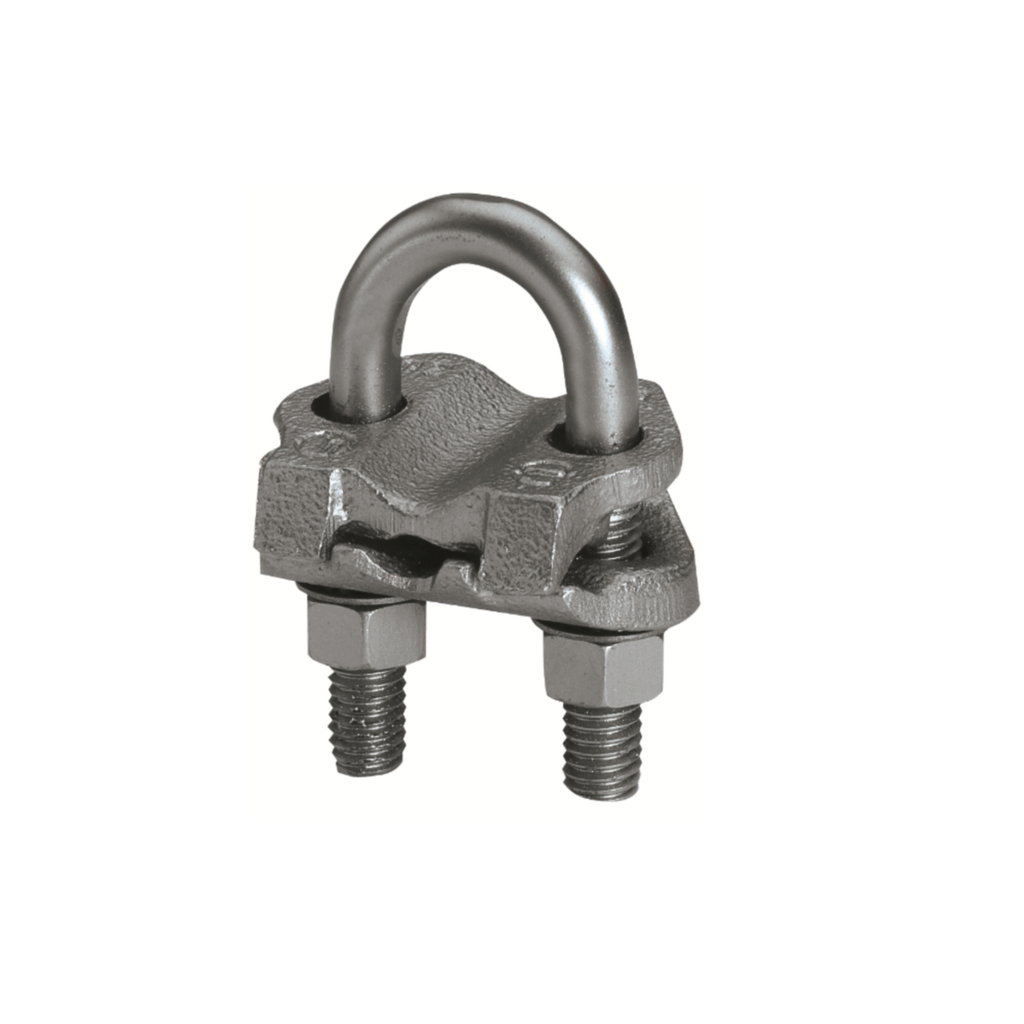

BUR GAR1129 2/0-250CU 1/4IPS
Product image thumbnail 0
Product image thumbnail 1
$57.99/ea
In Stock | 3 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell-Burndy
Mfg Catalog # GAR1129
Codale Part # 451192

Features

  • High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Ground Rod Size: 1/2 IN, Tube (ips) Size: 1/4 IN, Installation Torque: 240 IN-LB, Width: 1-7/8 IN, Height: 2-1/2 IN

Specifications

  • Conductor - Copper Solid Size: 2/0 AWG
  • Conductor - Copper Solid Size Range: 2/0 AWG-4/0 AWG
  • Conductor - Copper Str Size: 250 kcmil
  • Conductor - Copper Str Size Range: 1/0 -250 kcmil
  • Conductor - Copper Tube Std Size: 1/4 IPS IPS
  • Conductor - Copper Tube Std Size Range: 1/4 IPS IPS
  • Conductor - Pipe or Round Tube Size Range: 1/4 in
  • Conductor - Rod Size: .5 in
  • Conductor - Rod Size Range: 1/2 in
  • Country of Origin: US
  • Dimension - B Length inch: 1.75 in
  • Dimension - Height fraction: 2-1/2 in
  • Dimension - Height inch: 2.50 in
  • Dimension - L Length Overall mm: 46 mm
  • Dimension - Length Overall inch: 1.81 in
  • Dimension - Outside Diameter inch: 0.54 in
  • Dimension - Width fraction: 1-7/8 in
  • Dimension - Width inch: 1.88 in
  • Dimension - Width mm: 48 mm
  • Each - Height: 2.5 in
  • Each - Length: 1.81 in
  • Each - Width: 1.87 in
  • Industry Standard(s): UL467
  • Installation Torque Recommended in-lb: 240 LBS/in
  • Installation Torque Recommended Run in-lb: 240 Lb in
  • Plated: N
  • Plating Type: Bright Dipped
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • U Bolt Type: 271
  • Sub Brand: MECHANICAL CONNECTOR
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/GAR1129_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/GAR1129_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/GAR1129_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181023140
Codale Part No. 451192
Product Long Description Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG ( Sol.) - 250 kcmil, 1/2" Rod, 1/4" Pipe, Bright Dipped.
Type GAR
Sub Brand MECHANICAL CONNECTOR
Application For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
Material Copper
Item Long Description Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG ( Sol.) - 250 kcmil, 1/2" Rod, 1/4" Pipe, Bright Dipped.
Type GAR
Material Copper
Applications For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
Bolt Size 3/8 IN
Family Brand Name Burndy
Sub Brand MECHANICAL CONNECTOR
Length 1.81 in
Width 1.88 in
Conductor Size 250 MCM
Height 2.50 in
Plating Type Bright Dipped
Plated? No
CSA No
