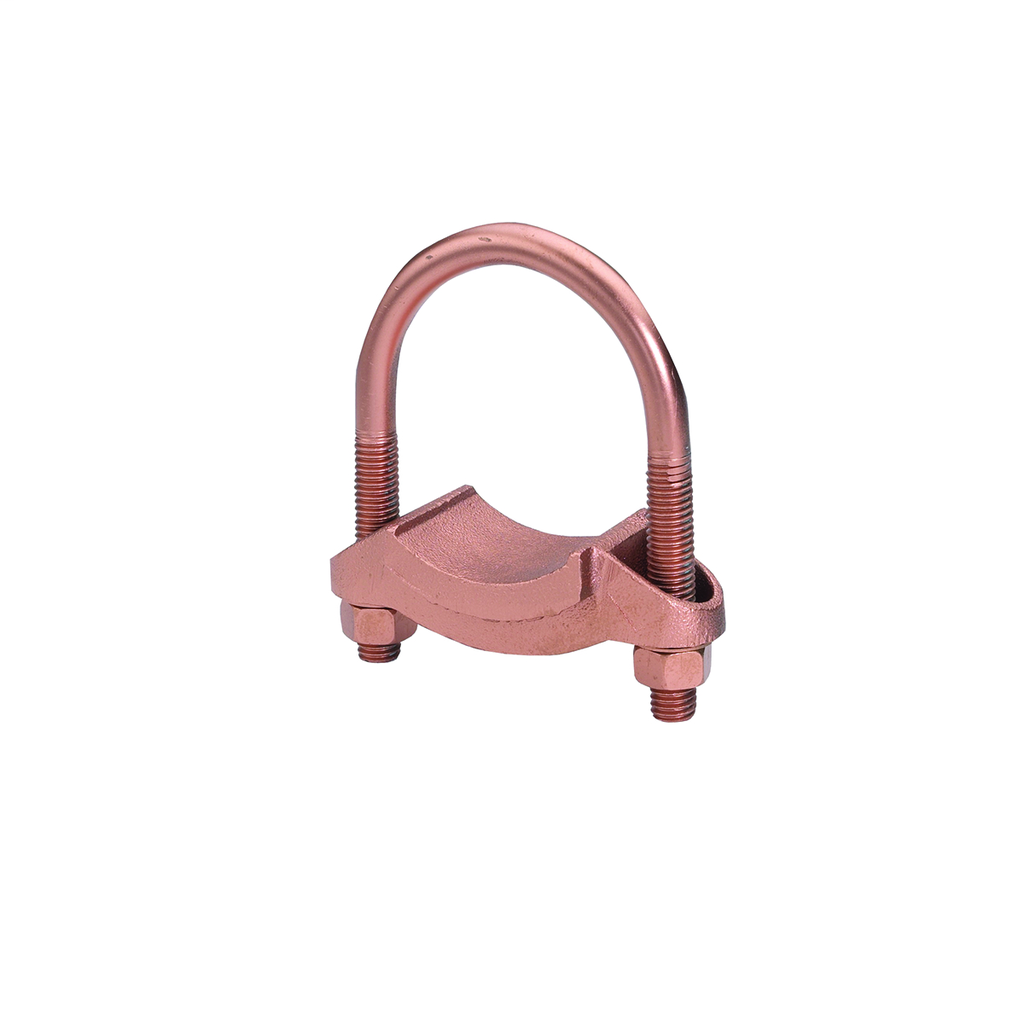

BUR GG182 2 BRAID TO 2 IPS
Product image thumbnail 0
Product image thumbnail 1
$230.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell-Burndy
Mfg Catalog # GG182
Codale Part # 436113

Features

  • High Copper Alloy Ground Connector For Joining Bar, Strap, Braid Or Cable To Rod Or Tube, High Copper Alloy Cast Body, DURIUM U-Bolts, Nuts And Lockwashers Make The GG Particularly Effective For Use With Braid For Ground Rods, Switch Handles, Fence Posts And Gates, One-Wrench Installation, Dimension A: 2 IN, Ground Rod Size: 2 - 2-3/8 IN, Tube (ips) Size: 2 IN, Installation Torque: 480 IN-LB, Width: 4-1/8 IN, Height: 4-3/8 IN

Specifications

  • Country of Origin: MX
  • Dimension - B Length inch: 1.75 in
  • Dimension - Width inch: 4.06 in
  • Dimension - Width mm: 103 mm
  • Each - Height: 4.3175 in
  • Each - Length: 4.06 in
  • Each - Width: 1.75 in
  • Industry Standard(s): UL467
  • Installation Torque Recommended in-lb: 480 LBS/in
  • Material Type - Screw: DURIUMâ„¢ Silicon Bronze
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • U Bolt Type: 230
  • Sub Brand: MECHANICAL CONNECTOR
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/GG182_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/GG182_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/GG182_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181026008
Codale Part No. 436113
Product Long Description Mechanical Grounding Connector, Copper Bar, Strap, Braid or Cable to Rod or Tube, 2" Pipe, 2"-2 3/8" Rod, 4.06 IN Width.
Type GG
Sub Brand MECHANICAL CONNECTOR
Application For Joining Copper Bar, Strap, Braid Or Cable To Rod Or Tube, Direct Burial Cables
Material Copper Alloy, Cast
Item Long Description Mechanical Grounding Connector, Copper Bar, Strap, Braid or Cable to Rod or Tube, 2" Pipe, 2"-2 3/8" Rod, 4.06 IN Width.
Type GG
Material Cast,Copper Alloy
Applications For Joining Copper Bar, Strap, Braid Or Cable To Rod Or Tube, Direct Burial Cables
Bolt Size 1/2 IN
Family Brand Name Burndy
Sub Brand MECHANICAL CONNECTOR
Width 4.06 in
Plating Type Unplated
Plated? No
CSA No
