BUR K2C26 2-2/0 STR 17/32 POST 2 C
Product image thumbnail 0
Product image thumbnail 1
$57.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell-Burndy
Mfg Catalog # K2C26
Codale Part # 466252

Features

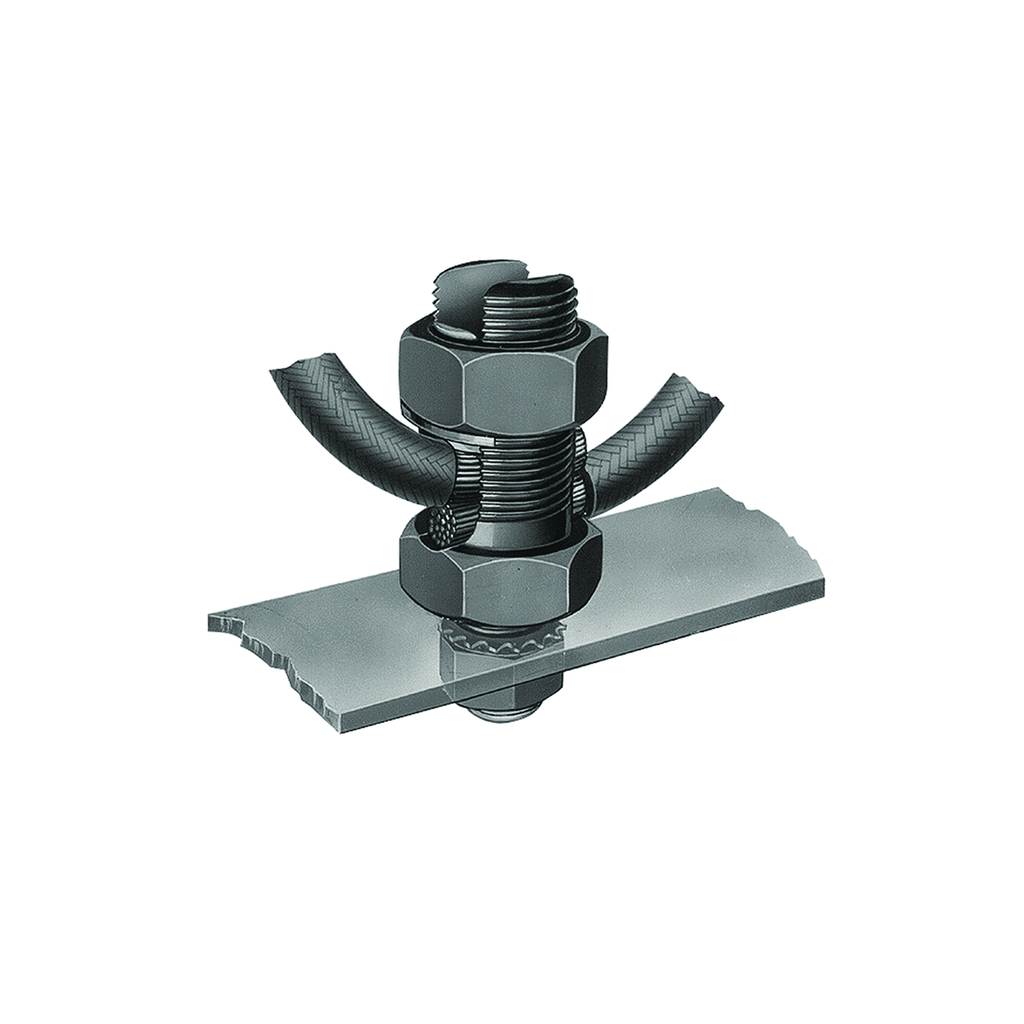

  • SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, For 1 Or 2 Conductors, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Stud/bolt Size: 1/2-13 Diameter, 17/32 IN Length, Height: 2-5/8 IN, Cross Flats: 1, 7/8 IN

Specifications

  • Conductor - Copper Solid Size: 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
  • Conductor - Copper Solid Size Range: 2 AWG-3/0 AWG
  • Conductor - Copper Str Size: 2 AWG;1 AWG;1/0 ;2/0 AWG
  • Conductor - Copper Str Size Range: 2/0 AWG - 2 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 17/32 in
  • Dimension - B Length inch: 0.52 in
  • Dimension - Body Width inch: 0.88 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - D inch: 0.75 in
  • Dimension - Height fraction: 1-3/8
  • Dimension - Height inch: 1.81 in
  • Dimension - L Length Overall mm: 67 mm
  • Dimension - Length Overall inch: 2.62 in
  • Dimension - Nut Width inch: 1.04 in
  • Dimension - P inch: 0.44 in
  • Dimension - Threads per inch: 13
  • Dimension - Width inch: 46 mm
  • Each - Height: 1.04 in
  • Each - Length: 2.62 in
  • Each - Width: 1.04 in
  • Industry Standard(s): UL467
  • Physical Attribute - Number of Conductors Accommodated Total: 2
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • Stud Installation Torque inch pounds: 480 LBS/in
  • Trade Name: SERVIT POSTâ„¢
  • Sub Brand: SERVIT POST
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/K2C26_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/K2C26_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/K2C26_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181025740
Codale Part No. 466252
Product Long Description Mechanical Grounding Connector, Cable to Flat, 2-2/0 AWG (Str) / 2-3/0 AWG (Sol), 1/2" Stud,Body height:1.81.
Type KC and K2C Series
Sub Brand SERVIT POST
Application For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar
Material Bronze Alloy, Leaded
Item Long Description Mechanical Grounding Connector, Cable to Flat, 2-2/0 AWG (Str) / 2-3/0 AWG (Sol), 1/2" Stud,Body height:1.81.
Finish Unplated
Type KC and K2C Series
Material Bronze Alloy,Leaded
Applications For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar
Bolt Size 1/2 IN
Family Brand Name Burndy
Sub Brand SERVIT POST
Length 2.62 in
Width 46 in
Conductor Size 1 AWG
Height 1.81 in
Plating Type Unplated
Plated? No
CSA No
