BUR YGC6C6 CRIMPIT 6 SLO/STR
Product image thumbnail 0
Product image thumbnail 1
$7.09/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell-Burndy
Mfg Catalog # YGC6C6
Codale Part # 462460

Features

  • UL467 Listed For Direct Burial In Earth Or Concrete, Prefilled With PENETROX E2 Oxide Inhibitor, Die Index: BG Element A, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, WBG Die, (2), OUR840 Tool, XBG Die, (2)

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Solid Run: 6 AWG
  • Conductor - Copper Solid Run Range: 6 AWG
  • Conductor - Copper Solid Tap: 6 AWG
  • Conductor - Copper Solid Tap Range: 6 AWG
  • Conductor - Copper Str Run: 6 AWG
  • Conductor - Copper Str Run Range: 6 AWG
  • Conductor - Copper Str Tap: 6 AWG
  • Conductor - Copper Str Tap Range: 6 AWG
  • Country of Origin: MX
  • Dimension - Height fraction: 19/25 in
  • Dimension - Height inch: 0.76 in
  • Dimension - L Length Overall mm: 16 mm
  • Dimension - Length Overall inch: 0.62 in
  • Each - Height: 0.76 in
  • Each - Length: 0.62 in
  • Each - Width: 0.68 in
  • Industry Standard(s): UL467
  • Physical Attribute - Number of Crimps Required: 2
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • Trade Name: CRIMPITâ„¢
  • Application: For Direct Burial In Earth Or Concrete
  • Special Features: Features: UL467 Listed For Direct Burial In Earth Or Concrete, Prefilled With PENETROX E2 Oxide Inhibitor, Die Index: BG Element A, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, WBG Die, (2), OUR840 Tool, XBG Die, (2)
  • Standard: UL467
  • Sub Brand: HYGROUND, CRIMPIT
  • Type: Taps

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181010262
Codale Part No. 462460

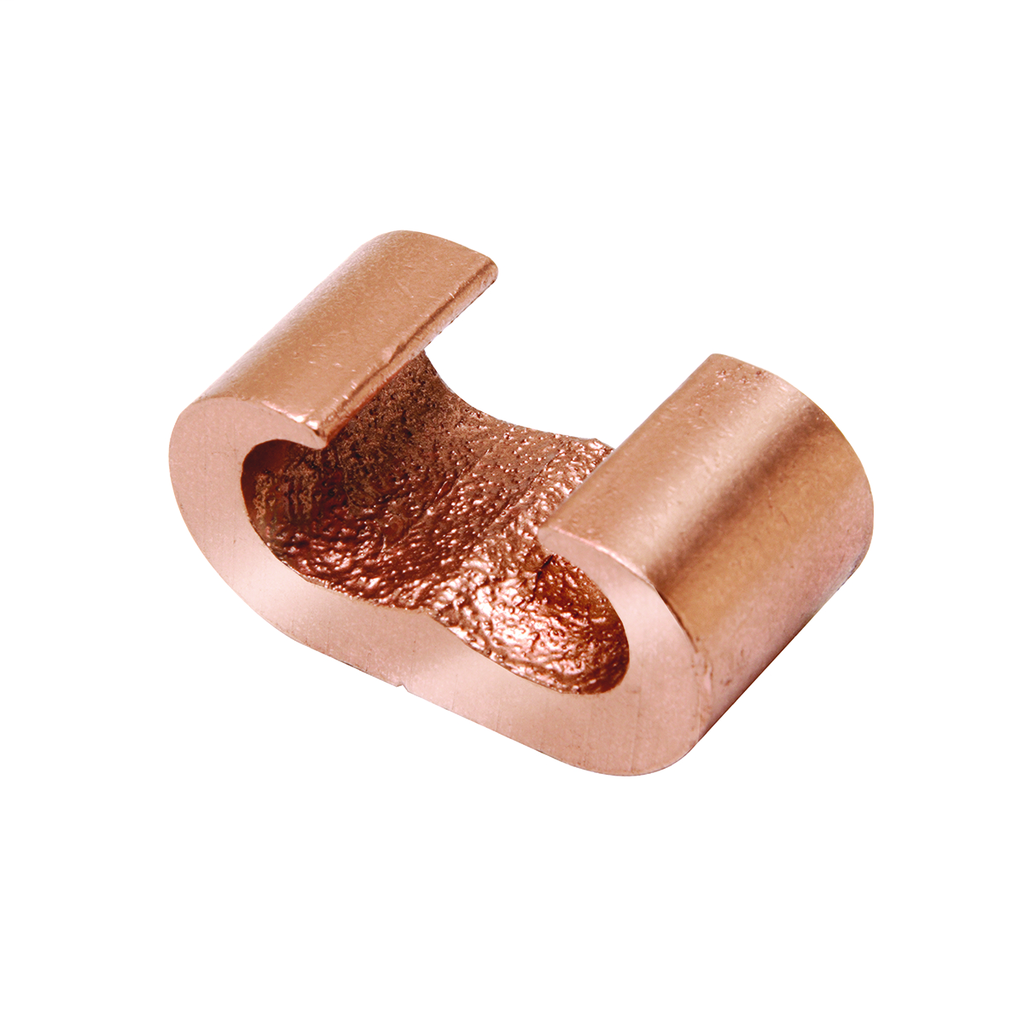

Product Long Description Copper Crimpit, .62 in L, #6 Sol. #6 Sol. (Run), #6 Sol. #6 Sol. (Tap).
Type Taps
Sub Brand HYGROUND, CRIMPIT
Application For Direct Burial In Earth Or Concrete
Material Copper
Connector Type Tap
Item Long Description COPPER CRIMPIT Compression C Connector, .62 in L, #6 Sol. #6 Sol. (Run), #6 Sol. #6 Sol. (Tap).
MDM Pkg GTiN 00781810102626
Size 0.76 IN Height X 0.62 IN Length
Type Taps
Material Copper
Conductor Size Run: 6 AWG Solid, 6 AWG Stranded
Applications For Direct Burial In Earth Or Concrete
Family Brand Name Burndy
Tap Size 6 AWG Solid, 6 AWG Stranded
Sub Brand HYGROUND, CRIMPIT
Length 0.62 in
Height 0.76 in
Connection Type Tap
Plating Type Unplated
Plated? No
CSA No
