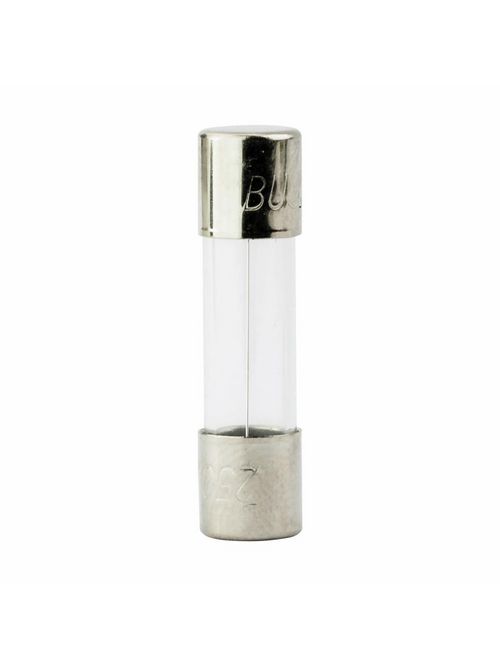

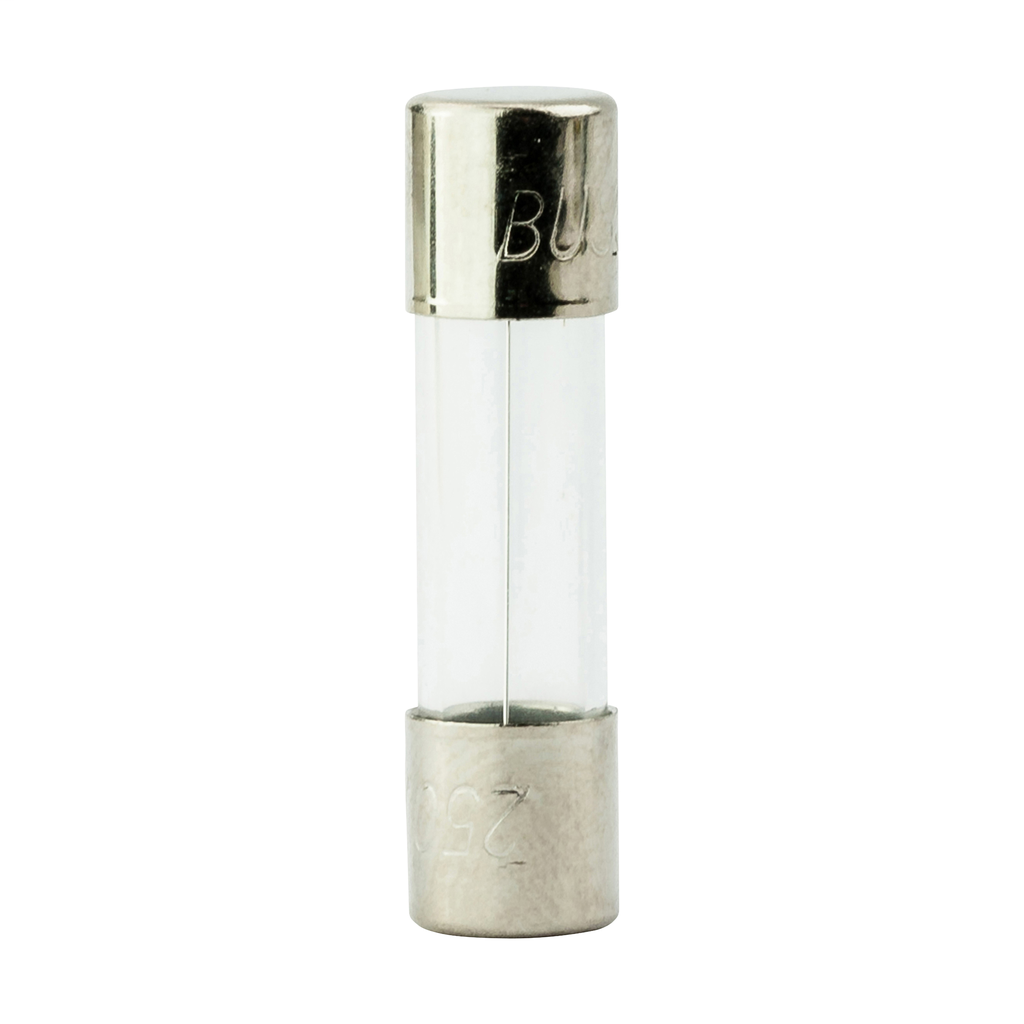

Bussmann Series AGX-2 Small Dimension Fast Acting Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.17/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # AGX-2
Codale Part # 44392

Specifications

  • Height: .25 IN
  • Length: 1 IN
  • Width: .25 IN
  • Weight: .003 LB
  • Type: Electronic- small dimension
  • Application: Electronic circuits
  • Voltage Rating: 250 Vac, 32 Vdc
  • Amperage Rating: 2A
  • Interrupt Rating: 10 kAIC at 125 Vac
  • Connection: Ferrule end X ferrule end
  • Packaging Type: Standard
  • Fuse Indicator: Non Indicating
  • Response Time: 4 hr minimum at 110%, 60 min maximum at 135%, 5 s maximum at 200%

Overview

UPC 05171270476
Codale Part No. 44392
Type Electronic- small dimension
Application Electronic circuits
Voltage Rating 250 Vac, 32 Vdc
Length 1 IN
Amperage Rating 2A
Connection Type Ferrule end X ferrule end
Width .25 IN
Height .25 IN
Interrupt Rating 10 kAIC at 125 Vac
Weight .003 LB
Response Time 4 hr minimum at 110%, 60 min maximum at 135%, 5 s maximum at 200%
Packaging Type Standard
Item Long Description BUSS SMALL DIMENSION FUSE FAST ACTING
Length 1 in
Width .25 in
Size 0.25 In Diameter X 1.00 In Length
Voltage 250 Volt
Type Electronic,Small Dimension
Applications Electronic Circuits
Height .25 in
Weight .003 lb
Standard UL (Canada And US)
Connection Type Ferrule
Family Brand Name Bussmann Series
Tc Connection Ferrule End X Ferrule End
Amperage 2 Amp
Response Time 4 hours minimum at 110%,5 seconds maximum at 200%,60 minutes maximum at 135%
End Type Ferrule
Interrupt Rating 10 kA
