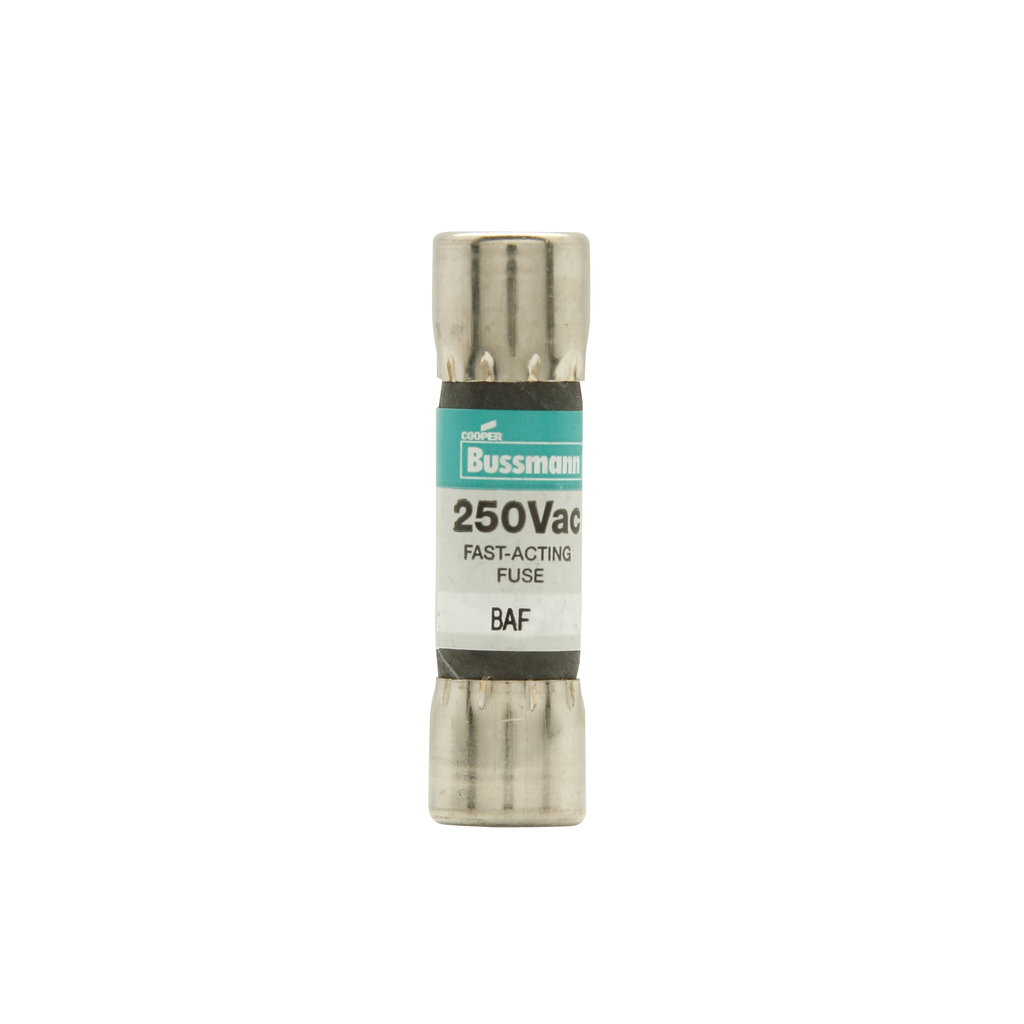

Bussmann Series BAF-10 Midget Fuse
Product image thumbnail 0
Product image thumbnail 1
$3.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # BAF-10
Codale Part # 44102

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 200 AIC at 250 Vac, 10 kAIC at 125 Vac
  • Type: Fast acting
  • Connection: Ferrule end X ferrule end
  • Material Type: Nickel-plated brass endcaps
  • Voltage Rating: 250V
  • Amperage Rating: 10A
  • Diameter: .40625 IN
  • Packaging Type: Standard

General

  • UPC: 051712320108
  • Product Length/Depth: 1.5 IN
  • Product Height: .41 IN
  • Product Width: .41 IN
  • Product Weight: .25 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171232010
Codale Part No. 44102
Type Fast acting
Voltage Rating 250V
Length .41 IN
Amperage Rating 10A
Connection Type Ferrule end X ferrule end
Width .41 IN
Height 1.5 IN
Interrupt Rating 200 AIC at 250 Vac, 10 kAIC at 125 Vac
Diameter .40625 IN
Weight .25 LB
Packaging Type Standard
Item Long Description Eaton Bussmann series BAF fuse, 250V, 10A, 200 AIC at 250 Vac, 10 kAIC at 125 Vac, Non Indicating, Fast acting, Ferrule end X ferrule end, Nickel-plated brass endcaps
MDM Pkg GTiN 00051712320108
Length 1.5 in
Width .41 in
Size 13/32 In Diameter X 1-1/2 In Length
Voltage 250 Volt
Type Fast Acting
Diameter .406 in
Material Fiber Tube
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .41 in
Weight .25 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
Class Supplemental
Tc Connection Ferrule End X Ferrule End
Amperage 10 Amp
End Type Ferrule
Interrupt Rating 10 kA
Blade Dimensions 1.5000 IN X 0.4100 IN X 0.4100 IN
Sub Brand Bussmann Series
