Bussmann Series FNQ-R-10 Class Time Delay

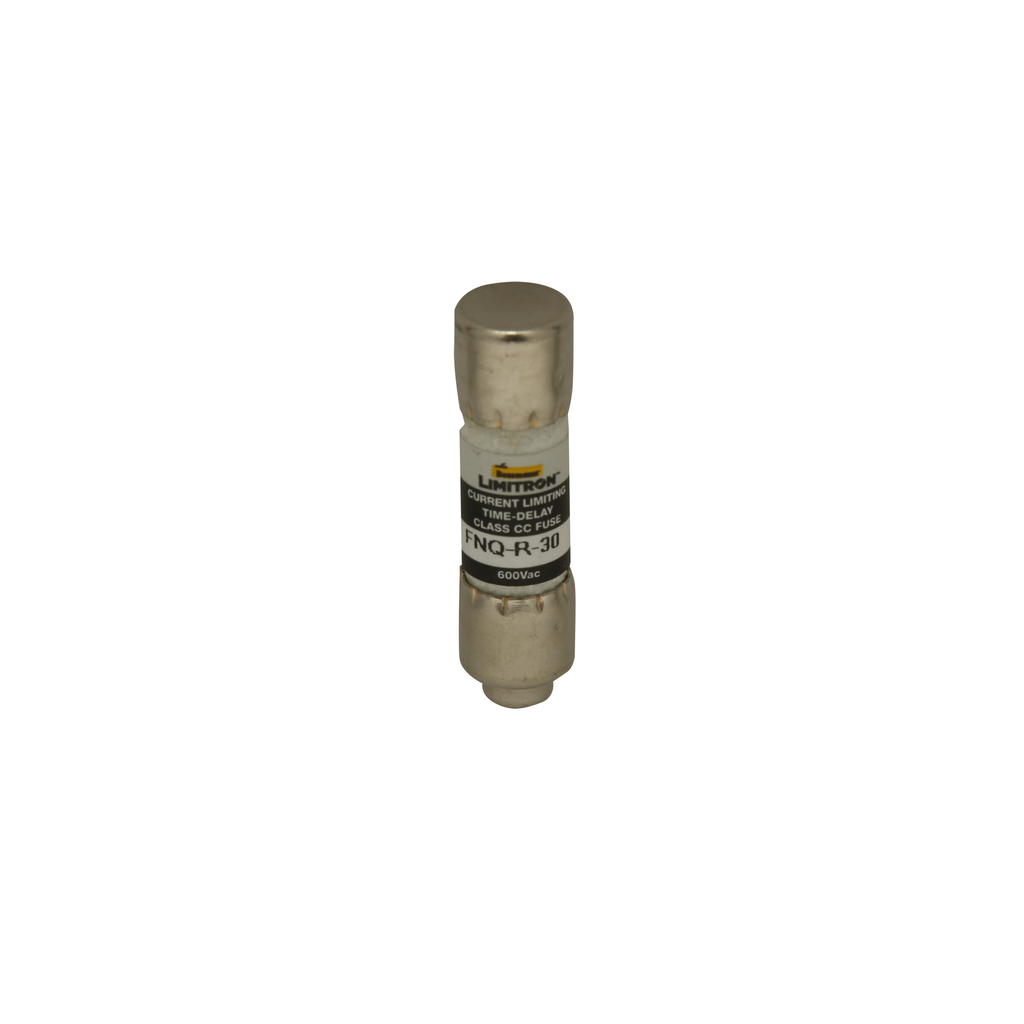

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$28.29/ea
In Stock | 210 available at 9 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FNQ-R-10
Codale Part # 44317

Specifications

  • Fuse Indicator: Non Indicating
  • Special Features: Rejection style
  • Interrupt Rating: 200 kAIC
  • Connection: Ferrule end X ferrule end
  • Response Time: 12s at 200%
  • Material Type: Melamine tube
  • Amperage Rating: 10A
  • Type: Current-limiting, high inrush, time delay
  • Class: Class CC
  • Voltage Rating: 600V
  • Application: Line protection, small control transformers, industrial control, branch circuits
  • Diameter: .40625 IN
  • Packaging Type: Standard

General

  • UPC: 051712497091
  • Product Length/Depth: 1.5 IN
  • Product Height: .41 IN
  • Product Width: .41 IN
  • Product Weight: .15 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171249709
Codale Part No. 44317
Type Current-limiting, high inrush, time delay
Application Line protection, small control transformers, industrial control, branch circuits
Voltage Rating 600V
Length .41 IN
Amperage Rating 10A
Connection Type Ferrule end X ferrule end
Width .41 IN
Height 1.5 IN
Interrupt Rating 200 kAIC
Diameter .40625 IN
Weight .15 LB
Class Class CC
Response Time 12s at 200%
Packaging Type Standard
Item Long Description Eaton Bussmann series FNQ-R fuse, Rejection style, 600V, 10A, 200 kAIC, Non Indicating, Current-limiting, high inrush, time delay, Ferrule end X ferrule end, Class CC, Melamine tube
Length 1.5 in
Width .41 in
Size 13/32 In Diameter X 1-1/2 In Length
Voltage 600 Volt
Type Current Limiting,High Inrush,Time-Delay
Diameter .406 in
Material Melamine Tube
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .41 in
Weight .15 lb
Standard CE,CSA,UL 248-4
Connection Type Ferrule
Family Brand Name Bussmann Series
Class CC
Tc Connection Ferrule end x ferrule end
Amperage 10 Amp
Response Time 12 seconds at 200%
End Type Ferrule
Interrupt Rating 200 kA
Sub Brand Bussmann Series
Blade Dimensions 1.5000 IN X 0.4100 IN X 0.4100 IN
