BUSSMANN FNQR8 600V TIME-DELAY CLASS-CC FUSE

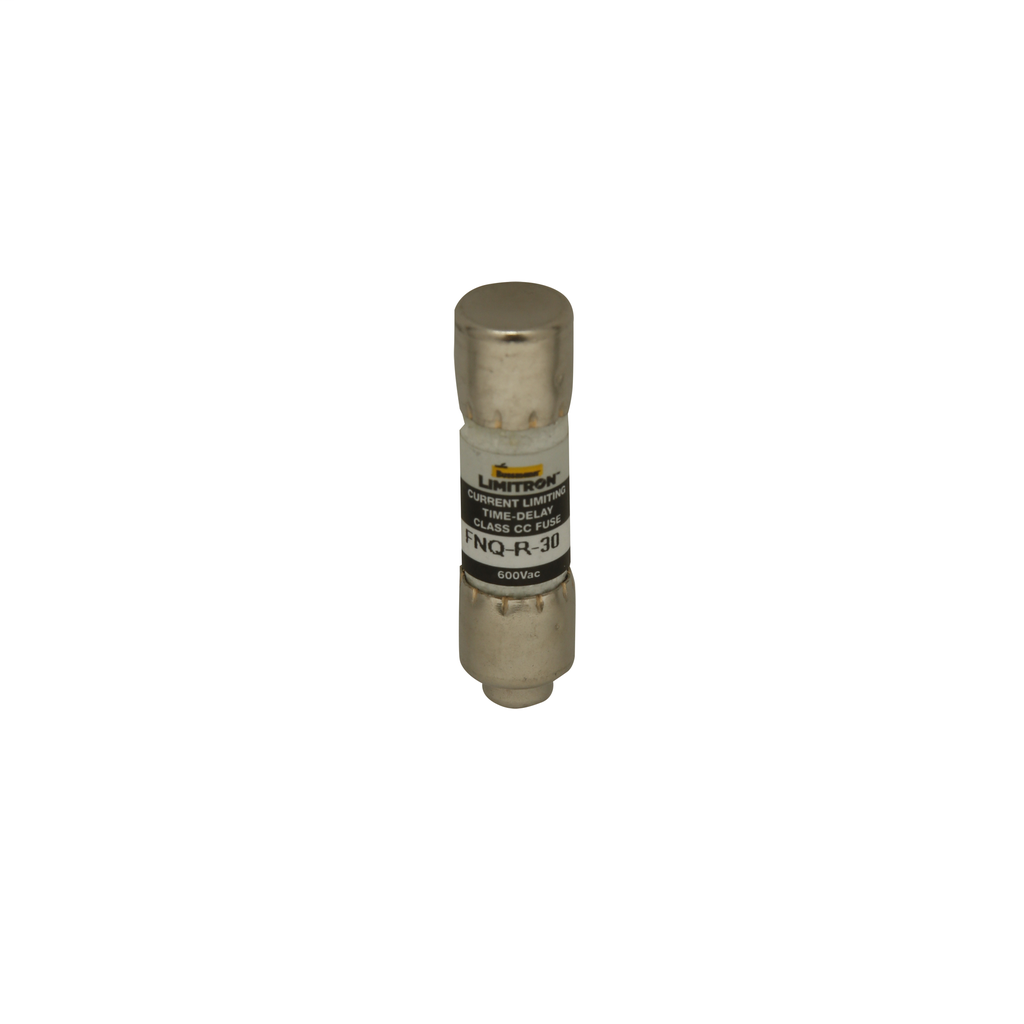

Product image thumbnail 0
Product image thumbnail 1
$29.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FNQ-R-8
Codale Part # 43908
BUSSMANN FNQR8 600V TIME-DELAY CLASS-CC FUSE

Overview

UPC 05171249706
Product Description CLASS CC TIME DELAY, MODEL FQN-R, 8 AMP
Codale Part No. 43908
Type Current-limiting, high inrush, time delay
Application Line protection, small control transformers, industrial control, branch circuits
Voltage Rating 600V
Length .41 IN
Amperage Rating 8A
Connection Type Ferrule end X ferrule end
Width .41 IN
Height 1.5 IN
Interrupt Rating 200 kAIC
Diameter .40625 IN
Weight .15 LB
Class Class CC
Response Time 12s at 200%
Packaging Type Standard
Catalog Description CLASS CC TIME DELAY 10 X 38 7.5A 600V AC
Product Short Description FNQ-R Limitron
MDM Item Long Description 8A 600V Class CC CC-
MDM Pkg GTiN 00051712497060
Length 1.5 in
Width .41 in
Size 13/32 In Diameter X 1-1/2 In Length
Voltage 600 Volt
Type Time-Delay,Current Limiting,High Inrush
Diameter .406 in
Material Melamine Tube
Applications Line Protection, Small Control Transformers, Industrial Control, Isolated, In-Line Fuse Holders
Height .41 in
Weight .15 lb
Standard UL 248-4,CSA,CE
Connection Type Ferrule
Family Brand Name Eaton
Class CC
Tc Connection Ferrule End X Ferrul
Amperage 8 Amp
Response Time 12 seconds at 200%
End Type Ferrule
Interrupt Rating 200 kA
Sub Brand CC-Tron
