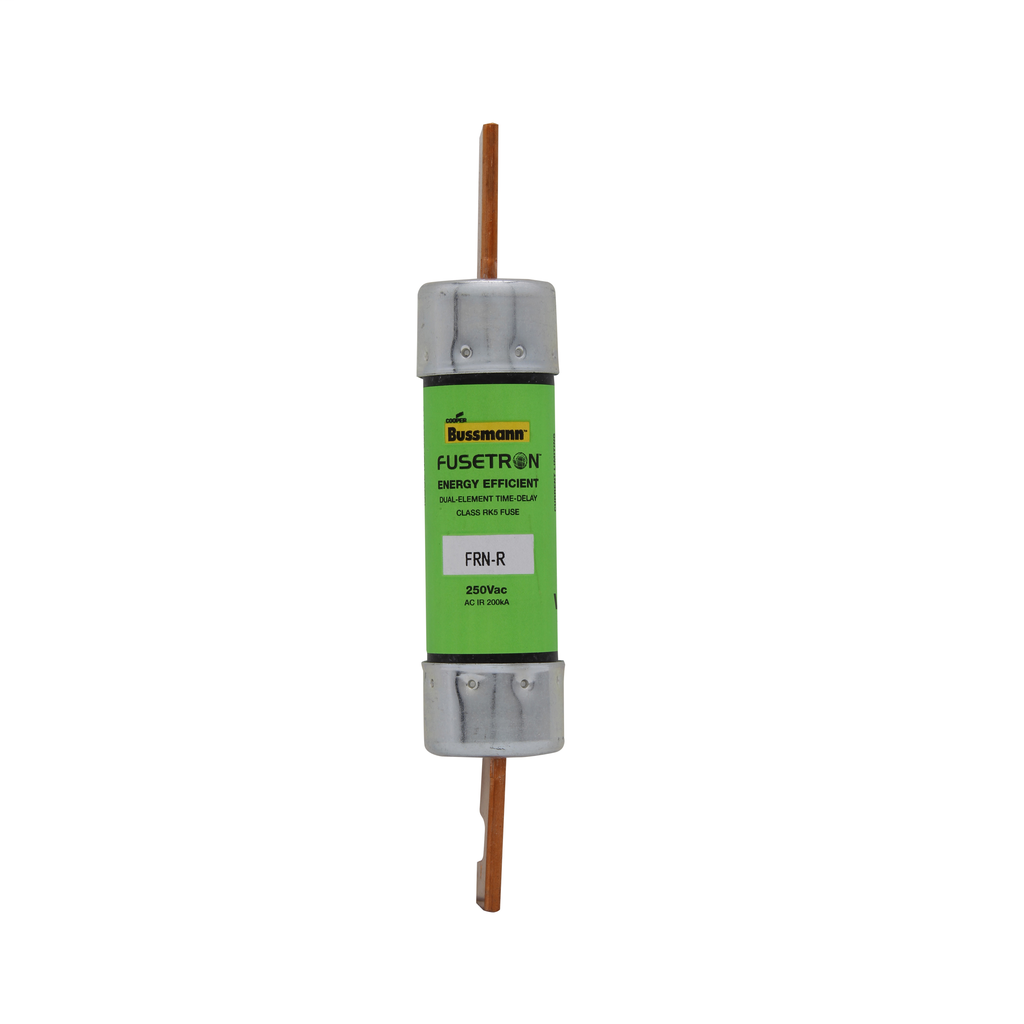

Bussmann Series FRN-R-100 Class RK5 Fusetron Dual Element Time Delay Power Fuse
Product image thumbnail 0
Product image thumbnail 1
$20.97/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRN-R-100
Codale Part # 44451

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
  • Type: Current-limiting, time delay
  • Number Of Elements: Dual
  • Connection: Blade end X blade end
  • Response Time: 10s at 500%
  • Class: Class RK5
  • Voltage Rating: 250 Vac, 125 Vdc
  • Application: Combination starters, motor control centers, machinery disconnects, power panelboards
  • Amperage Rating: 100A
  • Diameter: 1.06 IN
  • Packaging Type: Standard

General

  • UPC: 051712101851
  • Product Length/Depth: 2.1 IN
  • Product Height: .54 IN
  • Product Width: .54 IN
  • Product Weight: .5 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171210185
Codale Part No. 44451
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 250 Vac, 125 Vdc
Length 1 IN
Amperage Rating 100A
Connection Type Blade end X blade end
Width 1 IN
Height 5.875 IN
Interrupt Rating 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter 1.06 IN
Weight .294 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Item Long Description Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 100A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
MDM Pkg GTiN 00051712101851
Length 2.1 in
Width 1 in
Size 1.06 In Diameter X 5.88 In Length
Voltage 250 Volt
Type Current Limiting,Time Delay
Diameter 1.06 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .54 in
Weight .5 lb
Standard CE,CSA C22.2,UL 248-12
Connection Type Blade
Family Brand Name Bussmann Series
Class RK5
Tc Connection Blade end X blade end
Amperage 100 Amp
Response Time 10 seconds at 500%
End Type Blade
Interrupt Rating 20 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 2.1000 IN X 0.5400 IN X 0.5400 IN
