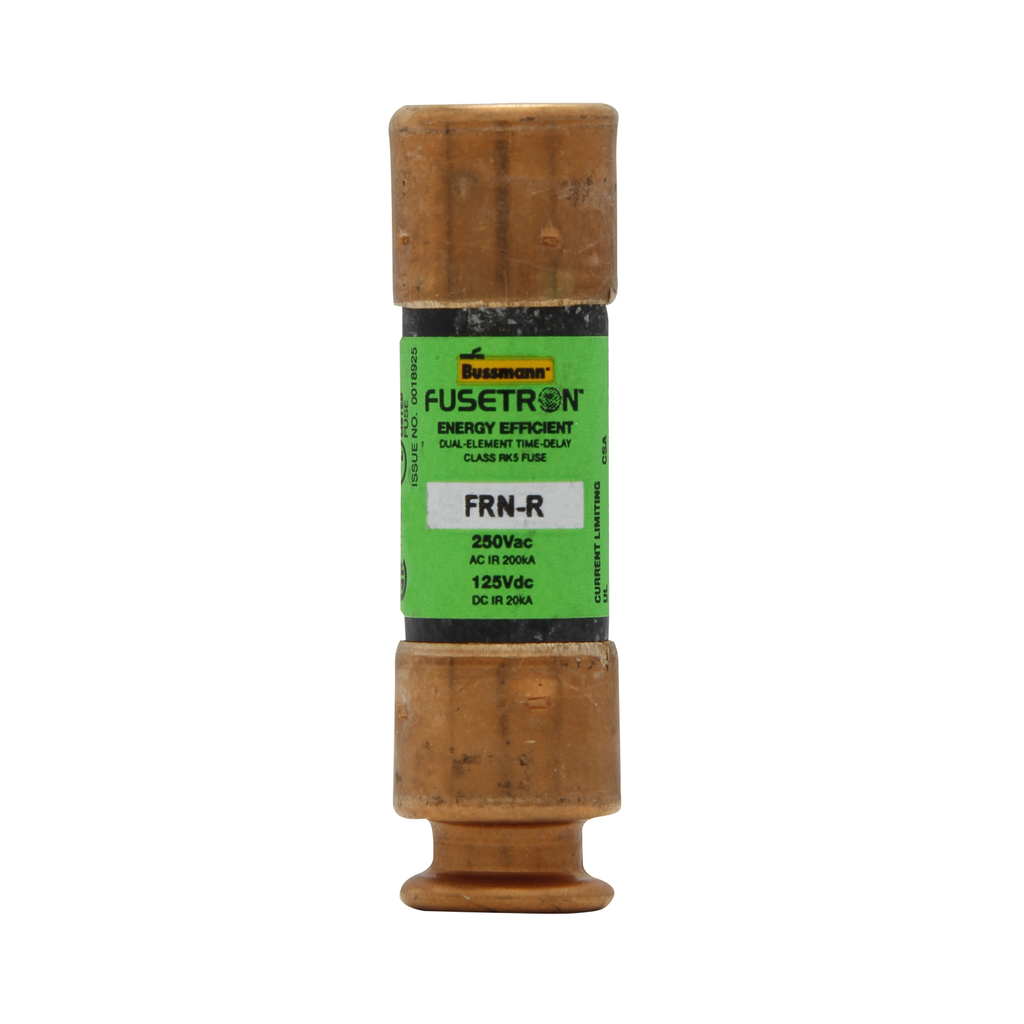

FRN-R Fusetron
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRN-R-10
Codale Part # 44450
FRN-R Fusetron


UPC 05171210173
Product Description DUAL-ELEMENT, FRN-R, CLASS RK5, 10 AMP
Codale Part No. 44450
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 250 Vac, 125 Vdc
Length .56 IN
Amperage Rating 10A
Connection Type Ferrule end X ferrule end
Width .56 IN
Height 2 IN
Interrupt Rating 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter .56 IN
Weight .5 LB
Class Class RK5
Response Time 8s at 500%
Packaging Type Standard
Product Short Description FRN-R Fusetron
Item Long Description Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 10A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Ferrule end X ferrule end, Class RK5 - FRN-R-10
MDM Pkg GTiN 00051712101738
Length 5.875 in
Size 0.56 In Diameter X 2.00 In Length
Voltage 125 Volt
Type Current Limiting,Time Delay
Diameter .56 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 1 in
Weight .294 lb
Connection Type Ferrule
Family Brand Name Bussmann Series
Class RK5
Tc Connection Ferrule end X ferrul
Amperage 10 Amp
Response Time 10 seconds at 500%
End Type Ferrule
Interrupt Rating 20 kA
Sub Brand Bussmann Series
Blade Dimensions 5.8750 IN X 1.0000 I
Standard CE,CSA,UL 248-12
Element Dual
