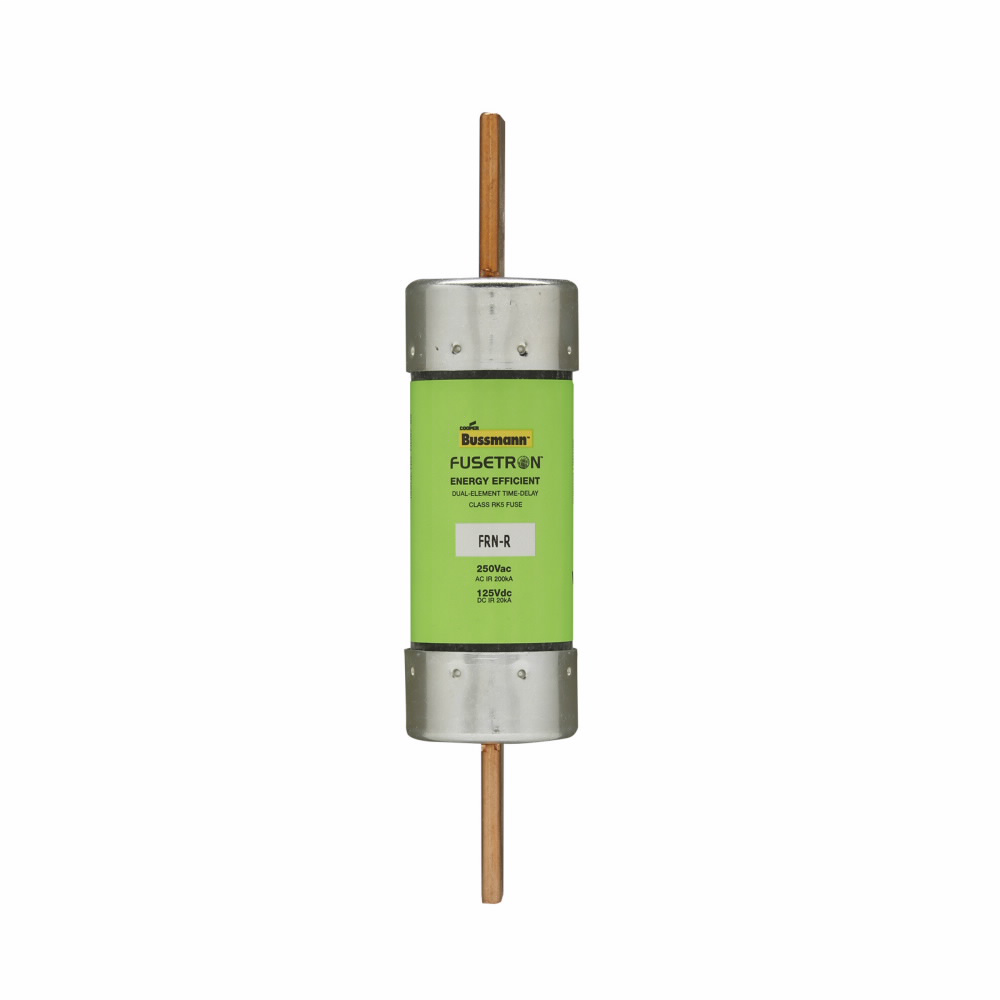

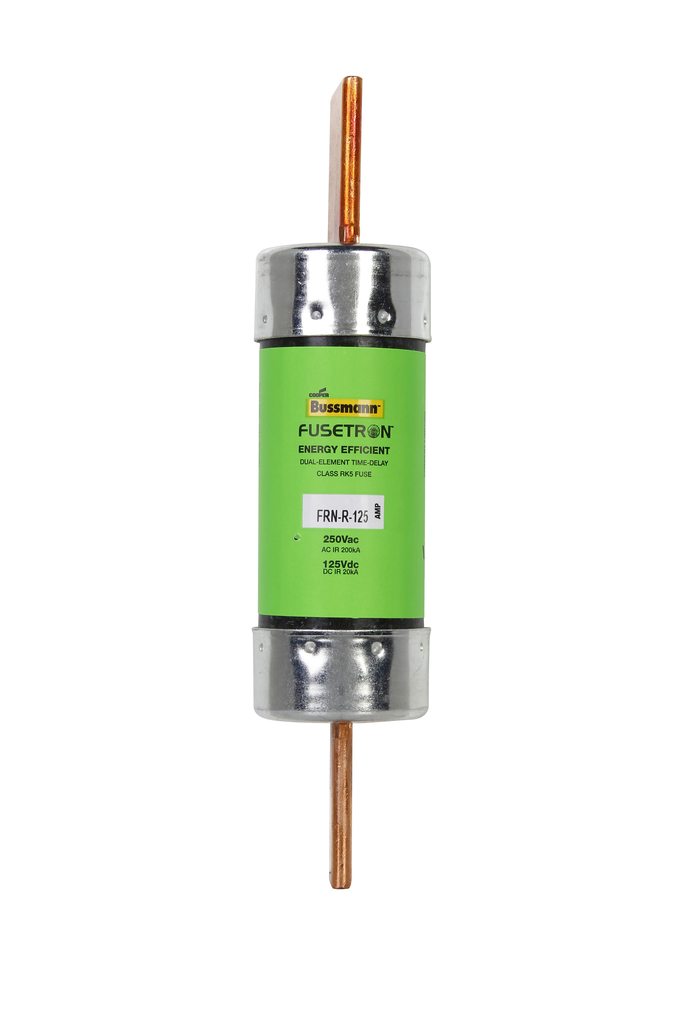

BUSSMANN FRNR125 250V DUAL-ELEMENT RK5 TIME-DELAY FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$41.79/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRN-R-125
Codale Part # 44453
BUSSMANN FRNR125 250V DUAL-ELEMENT RK5 TIME-DELAY FUSE

Overview

UPC 05171250745
Product Description DUAL-ELEMENT, FRN-R, CLASS RK5, 125 AMP
Codale Part No. 44453
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 250 Vac, 125 Vdc
Length .81 IN
Amperage Rating 125A
Connection Type Blade end X blade end
Width .81 IN
Height 3 IN
Interrupt Rating 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter 1.56 IN
Weight .8 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Catalog Description FUSETRON DUAL-ELEMENT CLASS RK5
Product Short Description FRN-R Fusetron
MDM Item Long Description 125A 250V Class RK5
MDM Pkg GTiN 00051712507455
Length 2.1 in
Width .81 in
Size 1.56 In Diameter X 7.13 In Length
Voltage 250 Volt
Type Time Delay,Current Limiting
Diameter 1.56 in
Applications Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Height .54 in
Weight .5 lb
Standard CSA C22.2,CE,UL 248-
Connection Type Blade
Family Brand Name Eaton
Class Class RK5
Tc Connection Blade End X Blade En
Amperage 125 Amp
Response Time 10 seconds at 500%
End Type Blade
Interrupt Rating 200 kA
Element Dual
Sub Brand Fusetron
