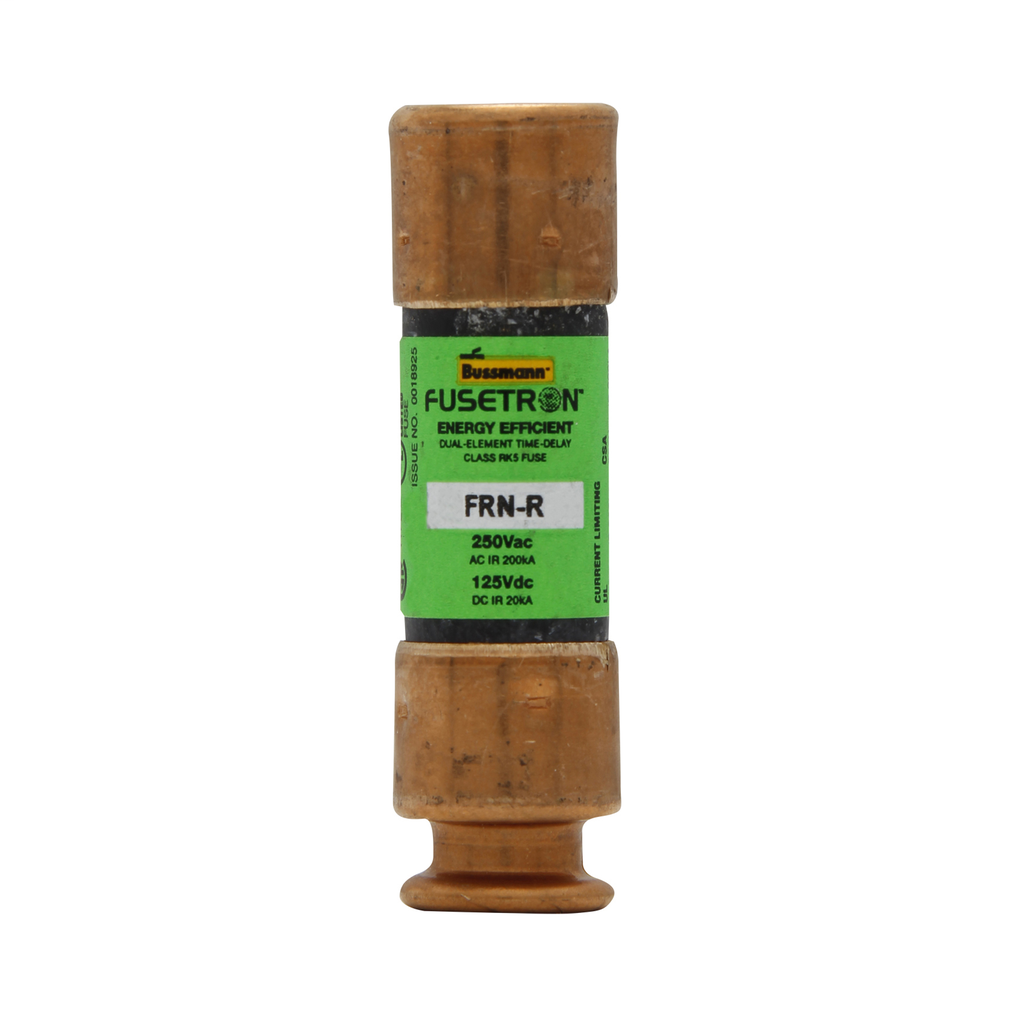

BUSSMANN FRNR12 12AMP 250V DUAL-ELEMENT RK5 TIME-DELAY FUSE
Product image thumbnail 0
Product image thumbnail 1
$7.39/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRN-R-12
Codale Part # 44452
BUSSMANN FRNR12 12AMP 250V DUAL-ELEMENT RK5 TIME-DELAY FUSE

Overview

UPC 05171250729
Codale Part No. 44452
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 250 Vac, 125 Vdc
Length .56 IN
Amperage Rating 12A
Connection Type Ferrule end X ferrule end
Width .56 IN
Height 2 IN
Interrupt Rating 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter .56 IN
Weight .5 LB
Class Class RK5
Response Time 8s at 500%
Packaging Type Standard
Catalog Description FUSETRON DUAL-ELEMENT CLASS RK5
Product Short Description FRN-R Fusetron
MDM Item Long Description 12A 250V Class RK5 F
MDM Pkg GTiN 00051712507295
Length 3 in
Width .56 in
Size 0.56 In Diameter X 2.00 In Length
Voltage 125 Volt
Type Time Delay,Current Limiting
Diameter .56 in
Applications Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Height .81 in
Weight .8 lb
Connection Type Ferrule
Family Brand Name Eaton
Class Class RK5
Tc Connection Ferrule End X Ferrul
Amperage 12 Amp
Response Time 10 S at 500%
End Type Ferrule
Interrupt Rating 200 kA
Sub Brand Fusetron
