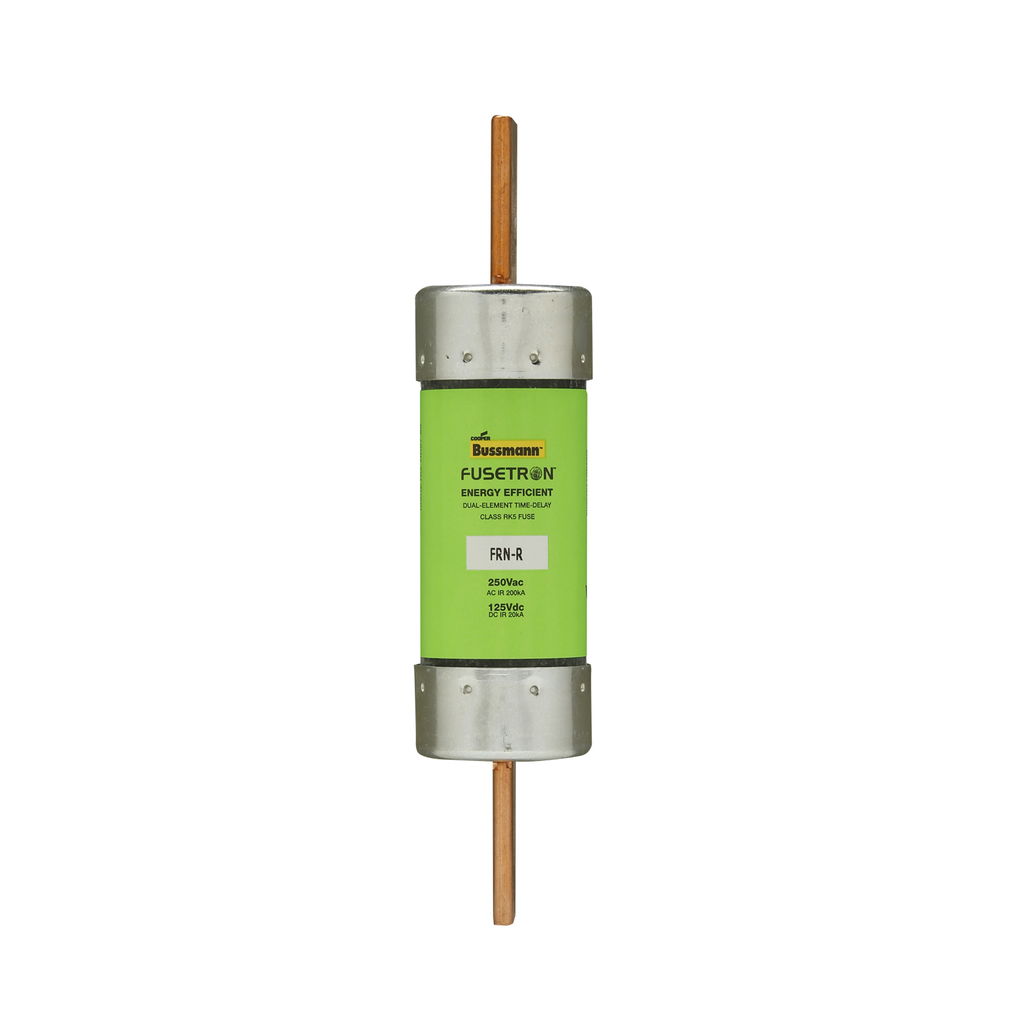

FRN-R Fusetron | Codale Electric Supply

UPC	05171210187
Product Description	DUAL-ELEMENT, FRN-R, CLASS RK5, 150 AMP
Codale Part No.	44455
Type	Current-limiting, time delay
Application	Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating	250 Vac, 125 Vdc
Length	.81 IN
Amperage Rating	150A
Connection Type	Blade end X blade end
Width	.81 IN
Height	3 IN
Interrupt Rating	200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter	1.56 IN
Weight	.8 LB
Class	Class RK5
Response Time	10s at 500%
Packaging Type	Standard
Catalog Description	FUSETRON DUAL-ELEMENT CLASS RK5
Product Short Description	FRN-R Fusetron
Item Long Description	FUSETRON DUAL-ELEMENT CLASS RK5
MDM Pkg GTiN	00051712101875
Length	.81 in
Width	.81 in
Size	1.56 In Diameter X 7.13 In Length
Voltage	125 Volt
Type	Current Limiting,Time Delay
Diameter	1.56 in
Applications	Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Height	.54 in
Weight	.5 lb
Standard	CE,CSA C22.2,UL 248-
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	RK5
Tc Connection	Blade End X Blade En
Amperage	150 Amp
Response Time	10 seconds at 500%
End Type	Blade
Interrupt Rating	20 kA
Element	Dual
Sub Brand	Fusetron
Blade Dimensions	2.1000 IN X 0.5400 I
MDM PRODUCT KEYWORD	FLNR150ID, FLNR150, TR150R
