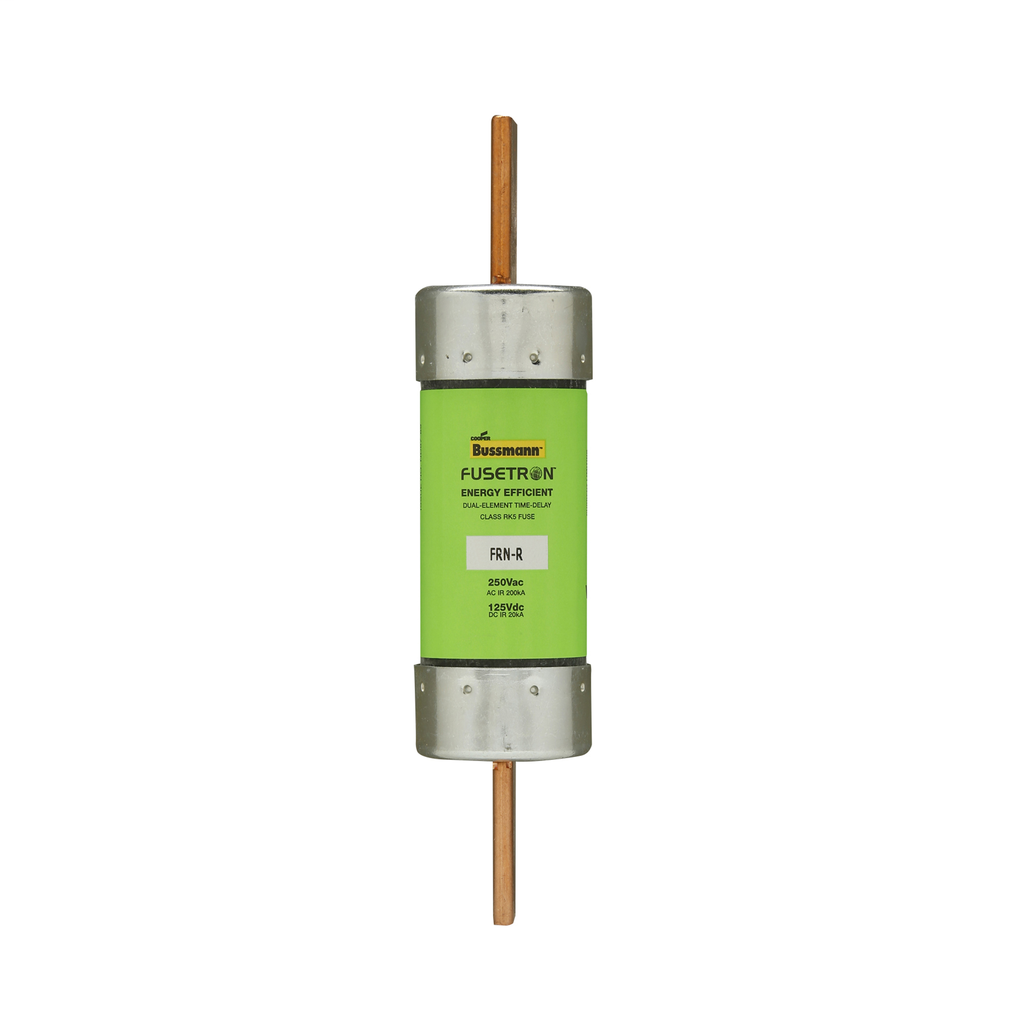

FRN-R Fusetron | Codale Electric Supply

UPC	05171250747
Product Description	DUAL-ELEMENT, FRN-R, CLASS RK5, 175 AMP
Codale Part No.	44457
Type	Current-limiting, time delay
Application	Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating	250 Vac, 125 Vdc
Length	.81 IN
Amperage Rating	175A
Connection Type	Blade end X blade end
Width	.81 IN
Height	3 IN
Interrupt Rating	200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter	1.56 IN
Weight	.8 LB
Class	Class RK5
Response Time	10s at 500%
Packaging Type	Standard
Catalog Description	FUSETRON DUAL-ELEMENT CLASS RK5
Product Short Description	FRN-R Fusetron
Item Long Description	Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 175A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
MDM Pkg GTiN	00051712507479
Length	2 in
Width	.81 in
Size	1.56 In Diameter X 7.13 In Length
Voltage	125 Volt
Type	Current Limiting,Time Delay
Diameter	1.56 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	.56 in
Weight	.5 lb
Standard	CE,CSA C22.2,UL 248-
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	RK5
Tc Connection	Blade end X blade en
Amperage	175 Amp
Response Time	10 seconds at 500%
End Type	Blade
Interrupt Rating	20 kA
Element	Dual
Sub Brand	Bussmann Series
Blade Dimensions	2.0000 IN X 0.5600 I
