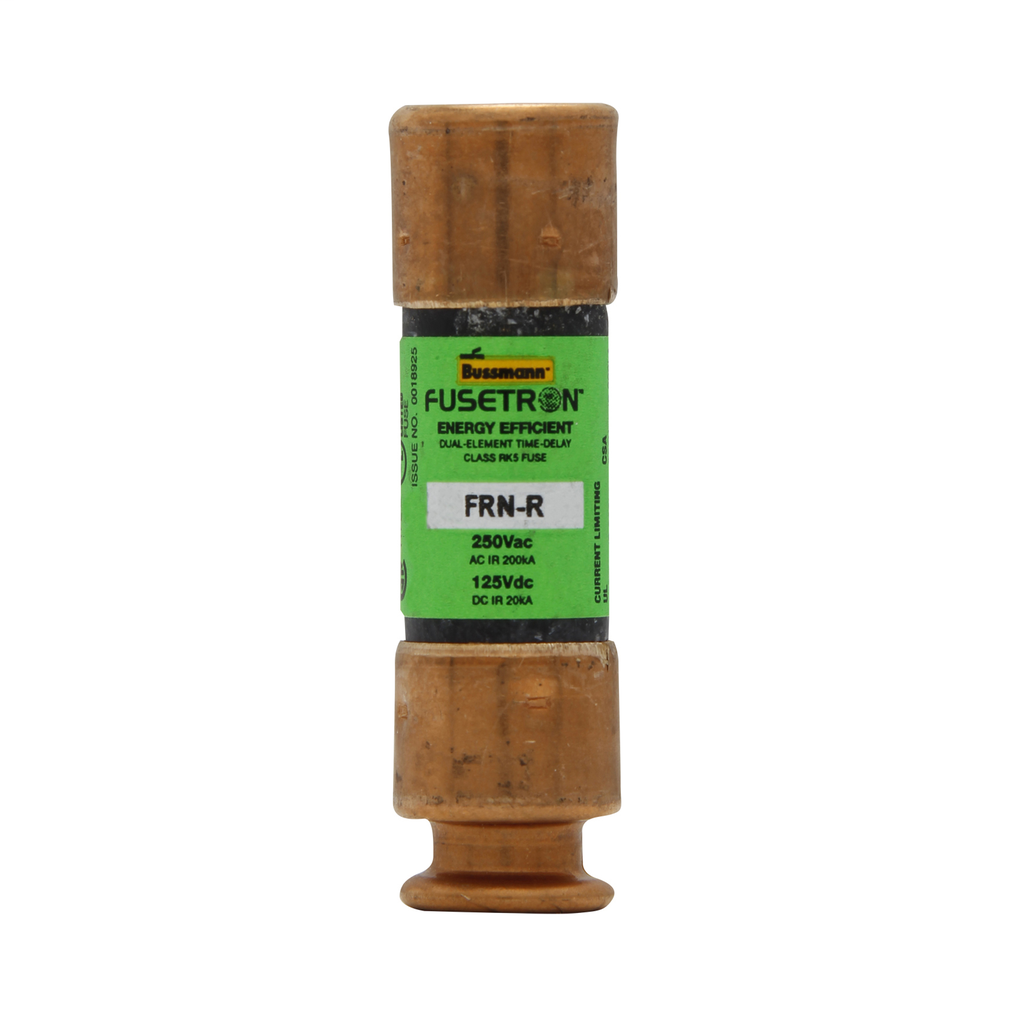

Bussmann Series FRN-R-1 Class RK5 Fusetron Dual Element
Product image thumbnail 0
Product image thumbnail 1
$8.89/ea
In Stock | 22 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRN-R-1
Codale Part # 44448

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
  • Type: Current-limiting, time delay
  • Number Of Elements: Dual
  • Connection: Ferrule end X ferrule end
  • Response Time: 8 S at 500%
  • Class: Class RK5
  • Voltage Rating: 250 Vac, 125 Vdc
  • Amperage Rating: 1A
  • Diameter: .56 IN
  • Packaging Type: Standard

General

  • UPC: 051712507080
  • Product Length/Depth: 2 IN
  • Product Height: .56 IN
  • Product Width: .56 IN
  • Product Weight: .5 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171250708
Codale Part No. 44448
Type Current-limiting, time delay
Voltage Rating 250 Vac, 125 Vdc
Length .56 IN
Amperage Rating 1A
Connection Type Ferrule end X ferrule end
Width .56 IN
Height 2 IN
Interrupt Rating 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter .56 IN
Weight .5 LB
Class Class RK5
Response Time 8 S at 500%
Packaging Type Standard
Item Long Description Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 1A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Ferrule end X ferrule end, Class RK5
MDM Pkg GTiN 00051712507080
Length 2 in
Width .56 in
Size 0.56 In Diameter X 2.00 In Length
Voltage 125 Volt
Type Current Limiting,Time Delay
Diameter .56 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 2 in
Weight .5 lb
Connection Type Ferrule
Family Brand Name Bussmann Series
Class RK-5
Tc Connection Ferrule end X ferrule end
Amperage 1 Amp
Response Time 10 S at 500%
End Type Ferrule
Interrupt Rating 20 kA
Sub Brand Bussmann Series
Blade Dimensions 2.0000 IN X 0.5600 IN X 0.5600 IN
