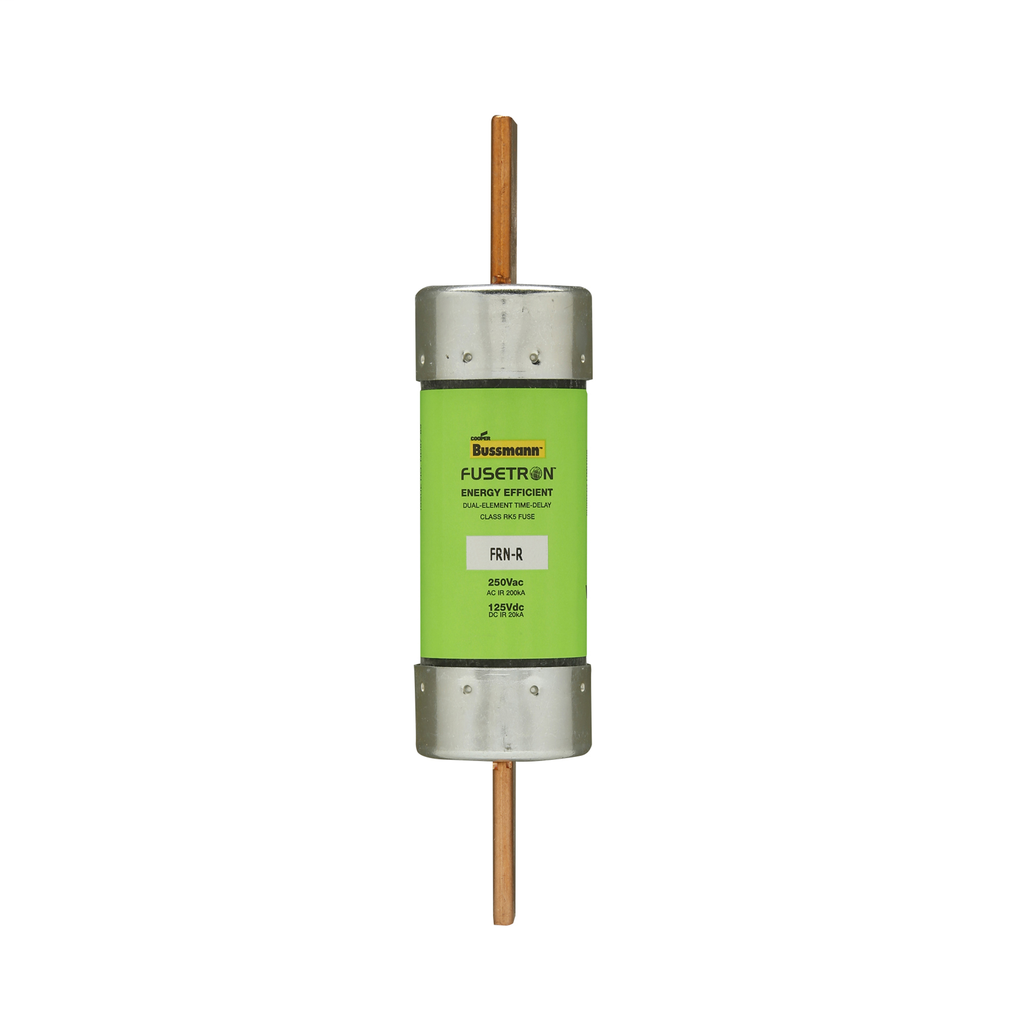

BUSSMANN FRNR200 250V DUAL-ELEMENT RK5 TIME-DELAY FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$40.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRN-R-200
Codale Part # 44461
BUSSMANN FRNR200 250V DUAL-ELEMENT RK5 TIME-DELAY FUSE

Overview

UPC 05171210189
Product Description DUAL-ELEMENT, FRN-R, CLASS RK5, 200 AMP
Codale Part No. 44461
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 250 Vac, 125 Vdc
Length 7.13 IN
Amperage Rating 200A
Connection Type Blade end X blade end
Width 1.56 IN
Height 1.56 IN
Interrupt Rating 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter 1.56 IN
Weight .9 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Catalog Description FUSETRON DUAL-ELEMENT CLASS RK5
Product Short Description FRN-R Fusetron
MDM Item Long Description 200A 250V Class RK5
MDM Pkg GTiN 00051712101899
Length 1 in
Size 1.56 In Diameter X 7.13 In Length
Voltage 250 Volt
Type Current Limiting,Time Delay
Diameter 1.56 in
Applications Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Height 1 in
Weight .048 lb
Connection Type Blade
Family Brand Name Eaton
Class RK-5
Tc Connection Blade End X Blade En
Amperage 200 Amp
Response Time 10 S at 500%
End Type Blade
Interrupt Rating 200 kA
Sub Brand Fusetron
