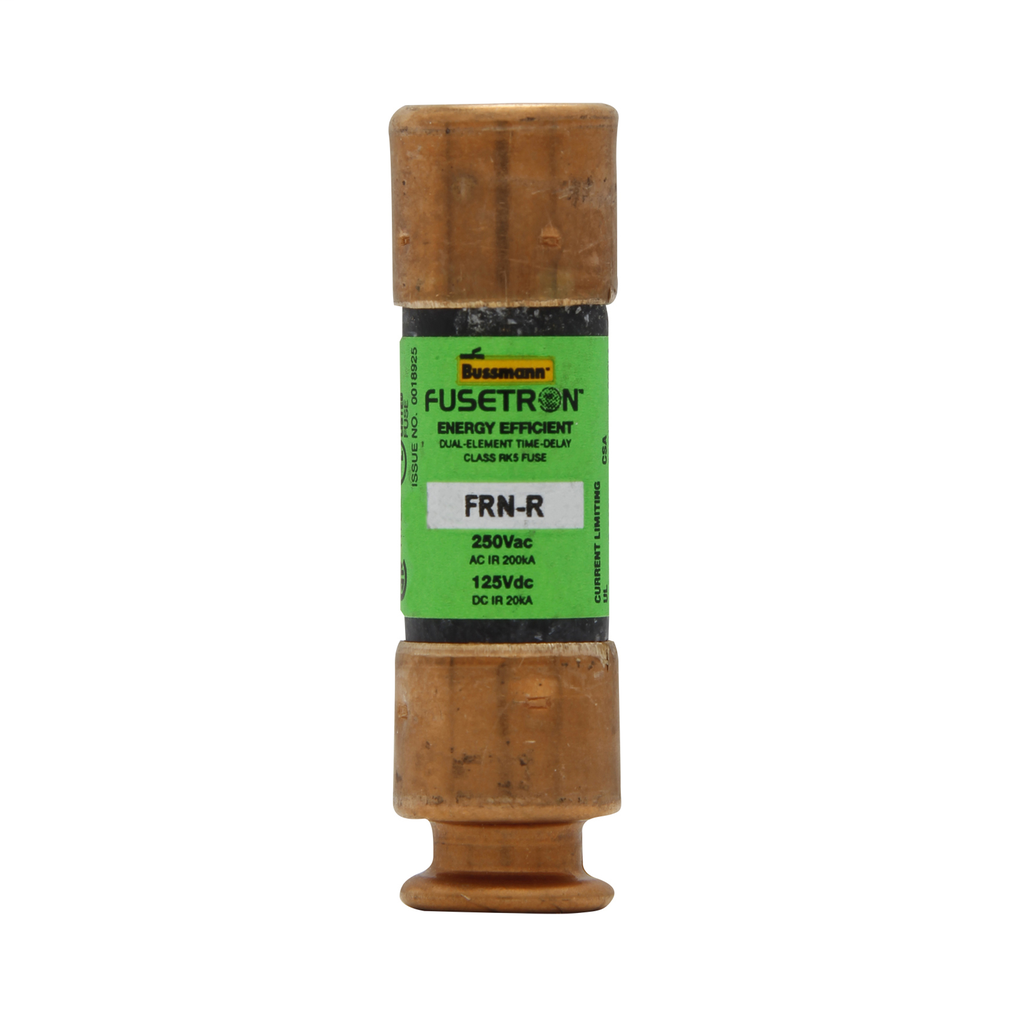

BUSSMANN FRNR20 250V DUAL-ELEMENT RK5 TIME-DELAY FUSE
Product image thumbnail 0
Product image thumbnail 1
$5.07/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRN-R-20
Codale Part # 44460
BUSSMANN FRNR20 250V DUAL-ELEMENT RK5 TIME-DELAY FUSE

Overview

UPC 05171210175
Product Description DUAL-ELEMENT, FRN-R, CLASS RK5, 20 AMP
Codale Part No. 44460
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 250 Vac, 125 Vdc
Length .56 IN
Amperage Rating 20A
Connection Type Ferrule end X ferrule end
Width .56 IN
Height 2 IN
Interrupt Rating 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter .56 IN
Weight .5 LB
Class Class RK5
Response Time 8s at 500%
Packaging Type Standard
Catalog Description FUSETRON DUAL-ELEMENT CLASS RK5
Product Short Description FRN-R Fusetron
MDM Item Long Description 20A 250V Class RK5 F
MDM Pkg GTiN 00051712101752
Length 1.56 in
Width .56 in
Size 0.56 In Diameter X 2.00 In Length
Voltage 250 Volt
Type Current Limiting,Time Delay
Diameter .56 in
Applications Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Height 1.56 in
Weight .9 lb
Standard CE,UL 248-12,CSA
Connection Type Ferrule
Family Brand Name Eaton
Class Class RK5
Tc Connection Ferrule End X Ferrul
Amperage 20 Amp
Response Time 10 seconds at 500%
End Type Ferrule
Interrupt Rating 20 kA
Element Dual
Sub Brand Fusetron
