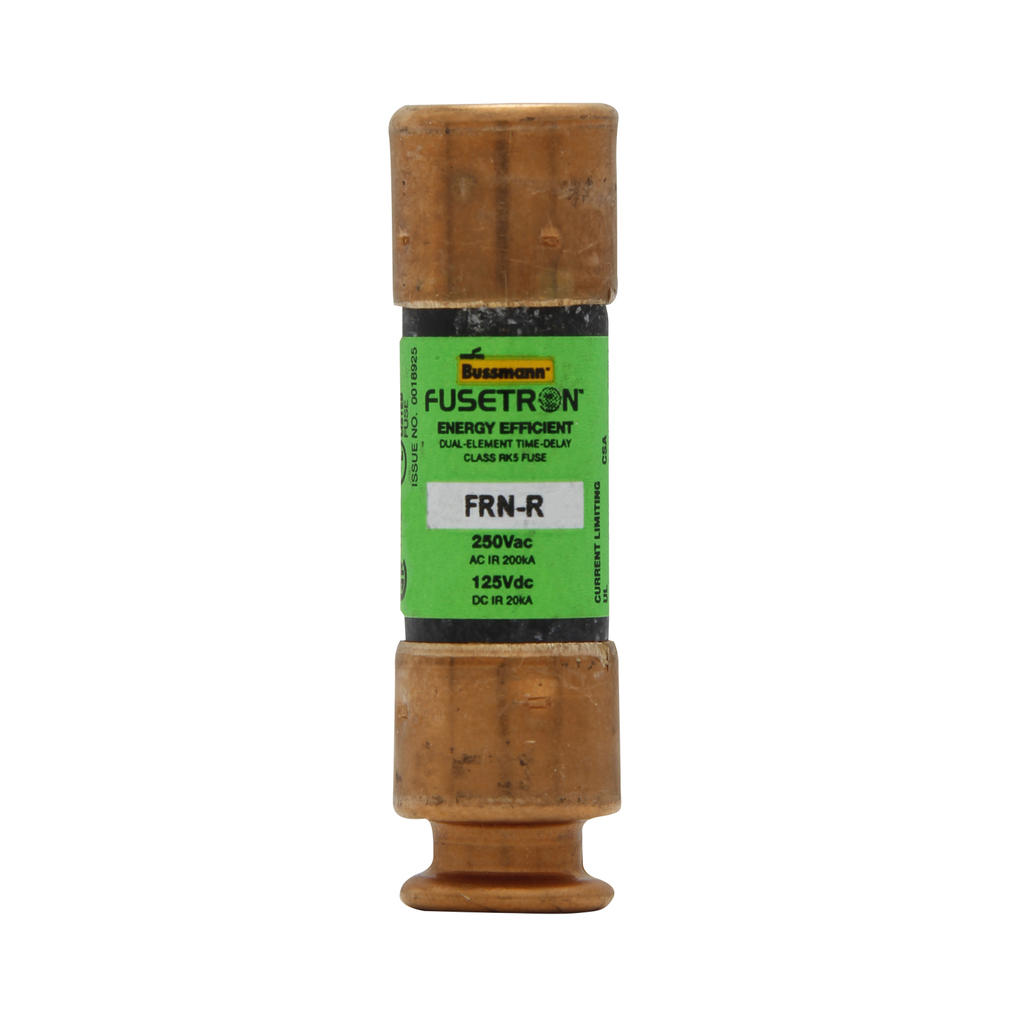

Manufacturer | Eaton Bussmann |
---|---|
Mfg Catalog # | FRN-R-30 |
Codale Part # | 44468 |
UPC | 05171210176 |
Product Description | DUAL-ELEMENT, FRN-R CLASS RK5, 30 AMP |
Codale Part No. | 44468 |
Type | Current-limiting, time delay |
Application | Combination starters, motor control centers, machinery disconnects, power panelboards |
Voltage Rating | 250 Vac, 125 Vdc |
Length | 2 IN |
Amperage Rating | 30A |
Connection Type | Ferrule end X ferrule end |
Width | .56 IN |
Height | .56 IN |
Interrupt Rating | 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc |
Diameter | .56 IN |
Weight | .04 LB |
Class | Class RK5 |
Response Time | 8s at 500% |
Packaging Type | Standard |
Catalog Description | FUSETRON DUAL-ELEMENT CLASS RK5 |
Product Short Description | FRN-R Fusetron |
Item Long Description | Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 30A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Ferrule end X ferrule end, Class RK5 - FRN-R-30 |
MDM Pkg GTiN | 00051712101769 |
Length | 3 in |
Size | 0.56 In Diameter X 2.00 In Length |
Voltage | 250 Volt |
Type | Current Limiting,Time Delay |
Diameter | .56 in |
Applications | Ind Facilities & Factories - Facility: Safety and Security Systems |
Height | .81 in |
Weight | 1.95 lb |
Connection Type | Ferrule |
Family Brand Name | Bussmann Series |
Class | RK-5 |
Tc Connection | Ferrule end X ferrul |
Amperage | 30 Amp |
Response Time | 10 S at 500% |
End Type | Ferrule |
Interrupt Rating | 20 kA |
Sub Brand | Bussmann Series |
Blade Dimensions | 3.0000 IN X 0.8100 I |
MDM PRODUCT KEYWORD | TR30R, FLNR030, ECNR30 |
