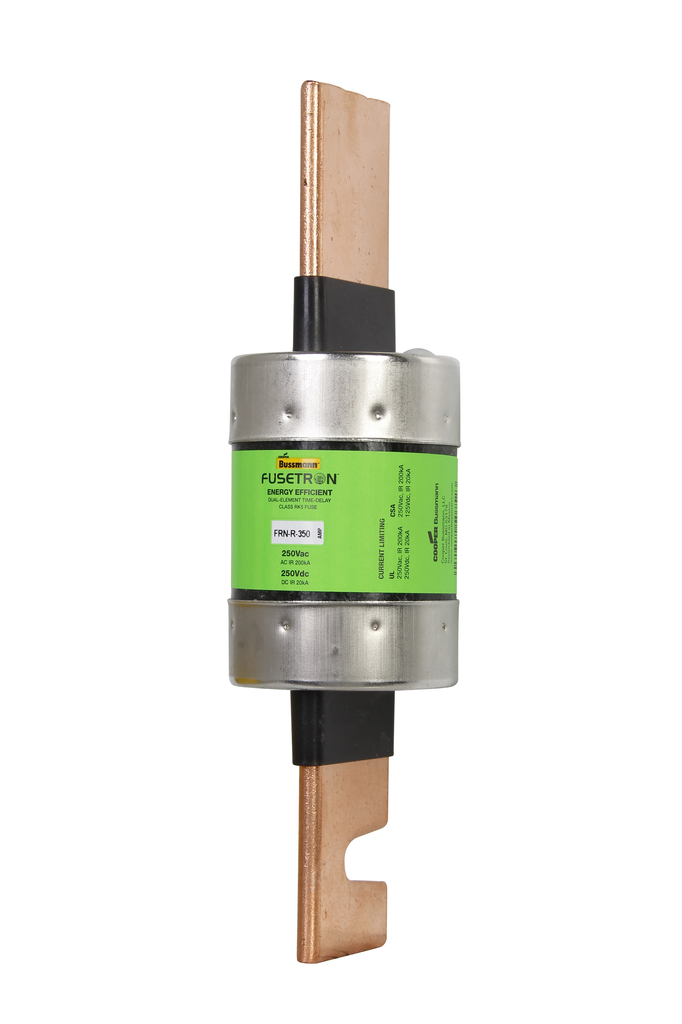

FRN-R Fusetron | Codale Electric Supply

UPC	05171250752
Codale Part No.	46253
Type	Current-limiting, time delay
Application	Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating	250 Vac, 125 Vdc
Length	.81 IN
Amperage Rating	350A
Connection Type	Blade end X blade end
Width	.81 IN
Height	3 IN
Interrupt Rating	200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter	2.38 IN
Weight	1.95 LB
Class	Class RK5
Response Time	10s at 500%
Packaging Type	Standard
Catalog Description	FUSETRON DUAL-ELEMENT
Product Short Description	FRN-R Fusetron
Item Long Description	Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 350A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
MDM Pkg GTiN	00051712507523
Length	3 in
Width	.81 in
Size	2.38 In Diameter X 8.63 In Length
Voltage	125 Volt
Type	Fuse
Diameter	2.38 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	.81 in
Weight	.11 lb
Standard	CSA C22.2,CE,UL 248-
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	RK-5
Tc Connection	Blade end X blade en
Amperage	350 Amp
Response Time	10 S at 500%
End Type	Blade
Interrupt Rating	200 kAIC at 250 Vac,
Element	Dual
Sub Brand	Bussmann Series
Blade Dimensions	3.0000 IN X 0.8100 I
