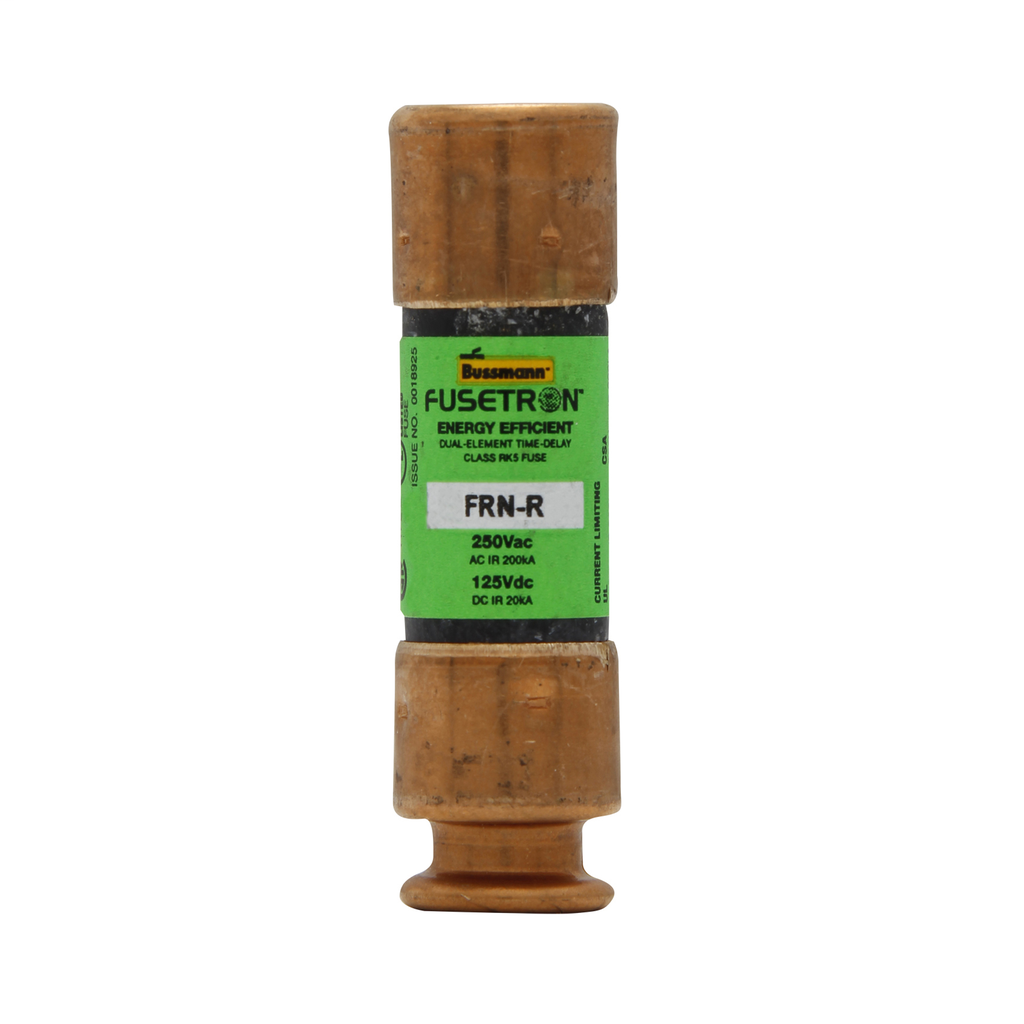

FRN-R Fusetron | Codale Electric Supply

UPC	05171250720
Product Description	DUAL-ELEMENT, FRN-R, CLASS RK5, 4 AMP
Codale Part No.	44471
Type	Current-limiting, time delay
Application	Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating	250 Vac, 125 Vdc
Length	.56 IN
Amperage Rating	4A
Connection Type	Ferrule end X ferrule end
Width	.56 IN
Height	2 IN
Interrupt Rating	200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter	.56 IN
Weight	.5 LB
Class	Class RK5
Response Time	8s at 500%
Packaging Type	Standard
Catalog Description	FUSETRON DUAL-ELEMENT CLASS RK5
Product Short Description	FRN-R Fusetron
Item Long Description	Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 4A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Ferrule end X ferrule end, Class RK5
MDM Pkg GTiN	00051712507202
Length	3 in
Width	.56 in
Size	0.56 In Diameter X 2.00 In Length
Voltage	125 Volt
Type	Current Limiting,Time Delay
Diameter	.56 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	.81 in
Weight	.1 lb
Standard	CE,CSA,UL 248-12
Connection Type	Ferrule
Family Brand Name	Bussmann Series
Class	RK5
Tc Connection	Ferrule end X ferrul
Amperage	4 Amp
Response Time	10 seconds at 500%
End Type	Ferrule
Interrupt Rating	20 kA
Element	Dual
Sub Brand	Bussmann Series
Blade Dimensions	3.0000 IN X 0.8100 I
MDM PRODUCT KEYWORD	TR4R, FLNR004
