FRN-R Fusetron

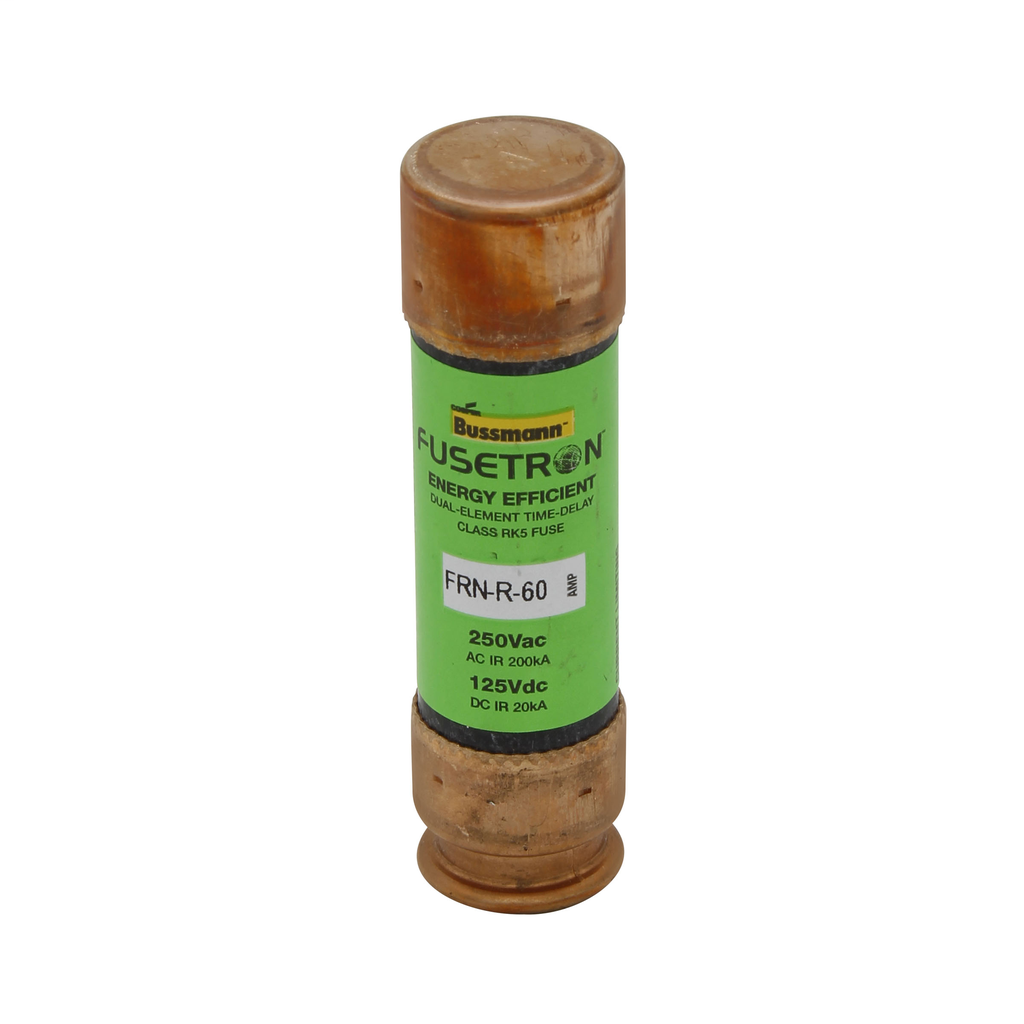

Product image thumbnail 0

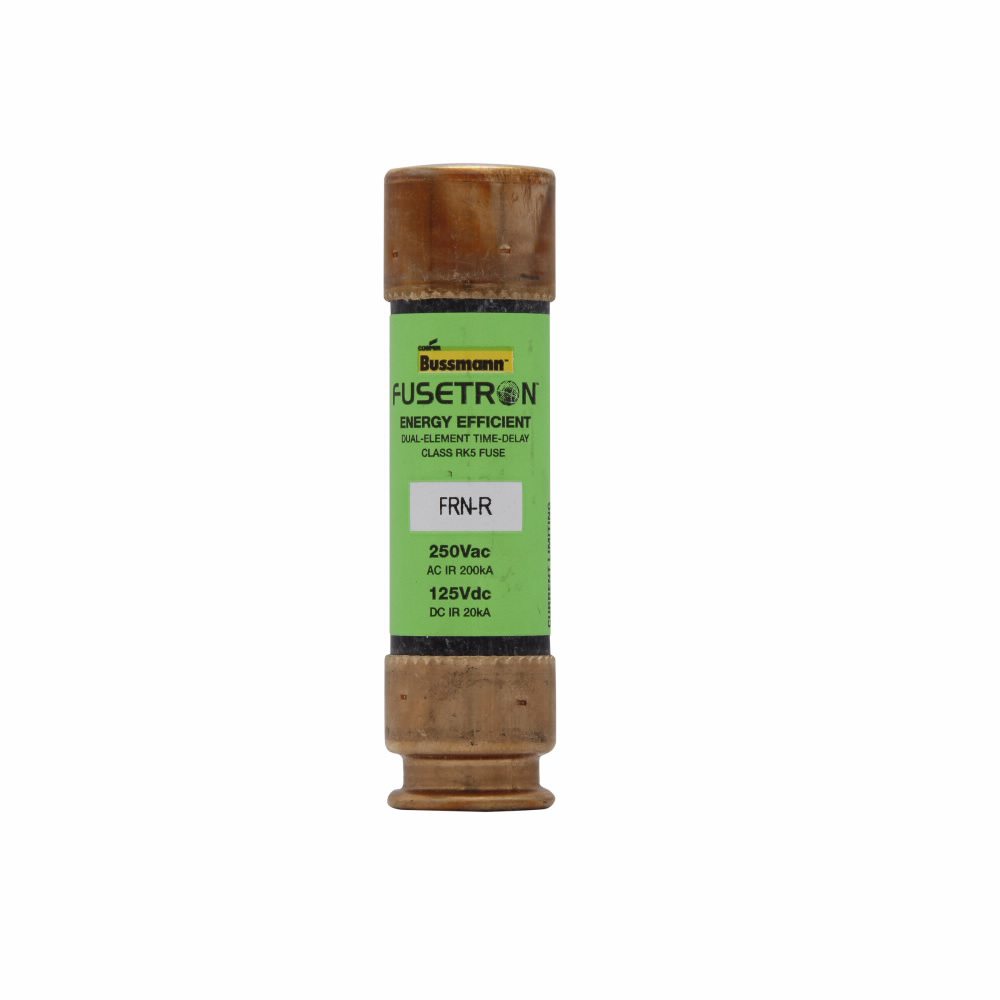

Product image thumbnail 1
$9.79/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRN-R-50
Codale Part # 44478
FRN-R Fusetron

Overview

UPC 05171210180
Product Description DUAL-ELEMENT, FRN-R, CLASS RK5, 50 AMP
Catalog Description FUSETRON DUAL-ELEMENT CLASS RK5
Codale Part No. 44478
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 250 Vac, 125 Vdc
Length .81 IN
Amperage Rating 50A
Connection Type Ferrule end X ferrule end
Width .81 IN
Height 3 IN
Interrupt Rating 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter .81 IN
Weight .1 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Product Short Description FRN-R Fusetron
Item Long Description Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 50A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Ferrule end X ferrule end, Class RK5 - FRN-R-50
MDM Pkg GTiN 00051712101806
Length 3 in
Width .81 in
Size 0.81 In Diameter X 3.00 In Length
Voltage 250 Volt
Type Current Limiting,Time Delay
Diameter .81 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .81 in
Weight 3.1 lb
Connection Type Ferrule
Family Brand Name Bussmann Series
Class RK-5
Tc Connection Ferrule end X ferrul
Amperage 50 Amp
Response Time 10 S at 500%
End Type Ferrule
Interrupt Rating 20 kA
Sub Brand Bussmann Series
Blade Dimensions 3.0000 IN X 0.8100 I
MDM PRODUCT KEYWORD FLNR050, TR50R, ECNR50, FLNR050ID
