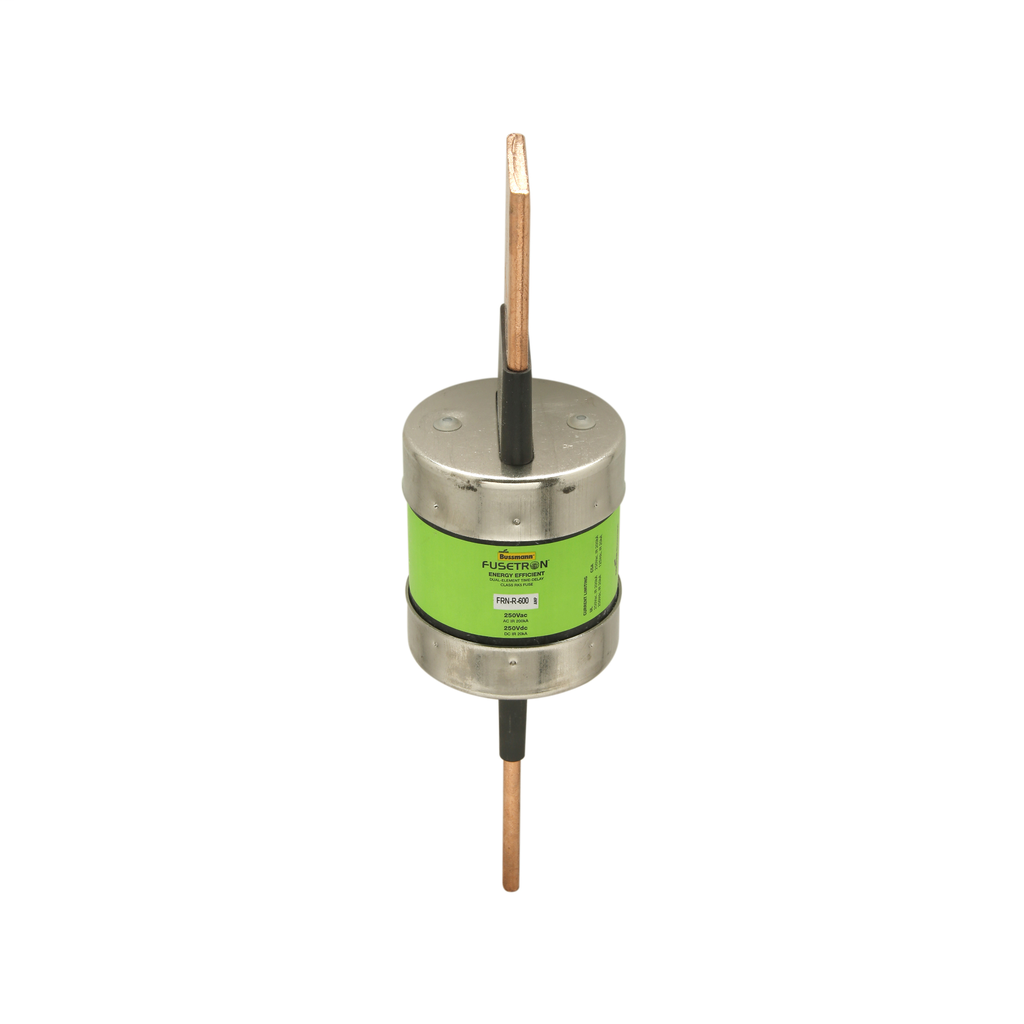

FRN-R Fusetron | Codale Electric Supply

UPC	05171250756
Product Description	DUAL-ELEMENT, FRN-R, CLASS RK5, 600 AMP
Codale Part No.	44481
Type	Current-limiting, time delay
Application	Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating	250 Vac, 125 Vdc
Length	10.38 IN
Amperage Rating	600A
Connection Type	Blade end X blade end
Width	2.59 IN
Height	2.59 IN
Interrupt Rating	200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
Diameter	2.88 IN
Weight	3.3 LB
Class	Class RK5
Response Time	10s at 500%
Packaging Type	Standard
Catalog Description	FUSETRON DUAL-ELEMENT
Product Short Description	FRN-R Fusetron
Item Long Description	Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 600A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
MDM Pkg GTiN	00051712507561
Length	10.38 in
Width	2.59 in
Size	2.88 In Diameter X 10.38 In Length
Voltage	125 Volt
Type	Current Limiting,Time Delay
Diameter	2.88 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	.81 in
Weight	.11 lb
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	RK-5
Tc Connection	Blade end X blade en
Amperage	600 Amp
Response Time	10 S at 500%
End Type	Blade
Interrupt Rating	20 kA
Sub Brand	Bussmann Series
Blade Dimensions	3.0000 IN X 0.8100 I
