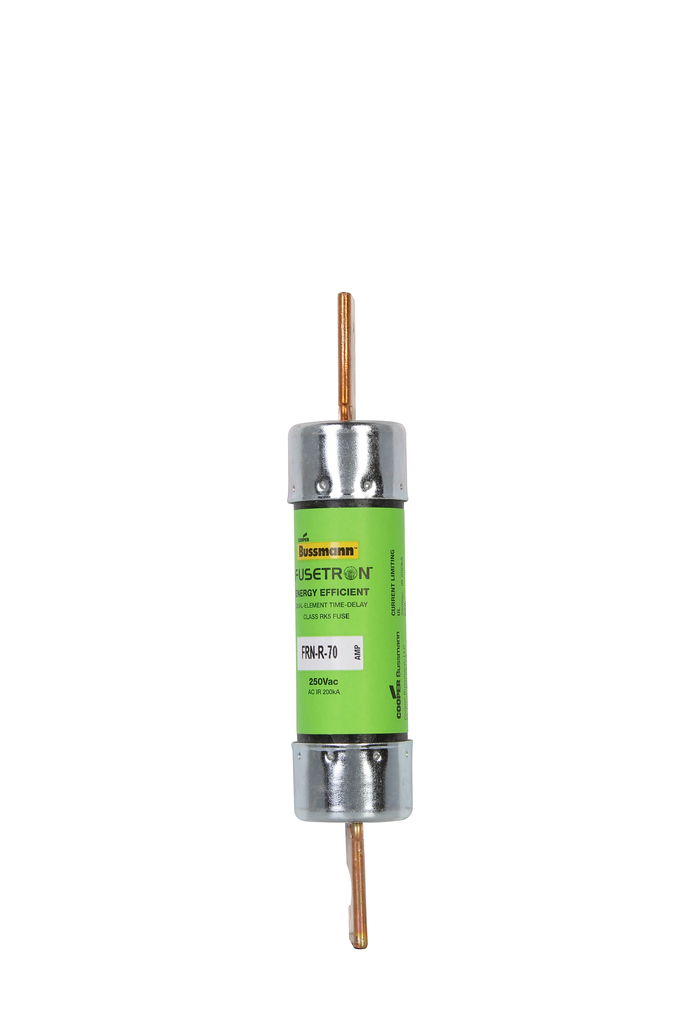

Manufacturer | Eaton Bussmann |
---|---|
Mfg Catalog # | FRN-R-70 |
Codale Part # | 44483 |
UPC | 05171250740 |
Product Description | DUAL-ELEMENT, FRN-R, CLASS RK5, 70 AMP |
Codale Part No. | 44483 |
Type | Current-limiting, time delay |
Application | Combination starters, motor control centers, machinery disconnects, power panelboards |
Voltage Rating | 250 Vac, 125 Vdc |
Length | .81 IN |
Amperage Rating | 70A |
Connection Type | Blade end X blade end |
Width | .81 IN |
Height | 3 IN |
Interrupt Rating | 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc |
Diameter | 1.06 IN |
Weight | .32 LB |
Class | Class RK5 |
Response Time | 10s at 500% |
Packaging Type | Standard |
Catalog Description | FUSETRON DUAL-ELEMENT CLASS RK5 |
Product Short Description | FRN-R Fusetron |
Item Long Description | Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 70A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5 |
MDM Pkg GTiN | 00051712507400 |
Length | 2 in |
Size | 1.06 In Diameter X 5.88 In Length |
Voltage | 250 Volt |
Type | Current Limiting,Time Delay |
Diameter | 1.06 in |
Applications | Ind Facilities & Factories - Facility: Safety and Security Systems |
Height | .56 in |
Weight | .5 lb |
Connection Type | Blade |
Family Brand Name | Bussmann Series |
Class | RK5 |
Tc Connection | Blade end X blade en |
Amperage | 70 Amp |
Response Time | 10 seconds at 500% |
End Type | Blade |
Interrupt Rating | 20 kA |
Sub Brand | Bussmann Series |
Blade Dimensions | 2.0000 IN X 0.5600 I |
MDM PRODUCT KEYWORD | FLNR070, TR70R, ECNR70, FLNR070ID |
Standard | CE,CSA C22.2,UL 248- |
Element | Dual |
