Manufacturer Eaton Bussmann
Mfg Catalog # FRS-R-150
Codale Part # 44492

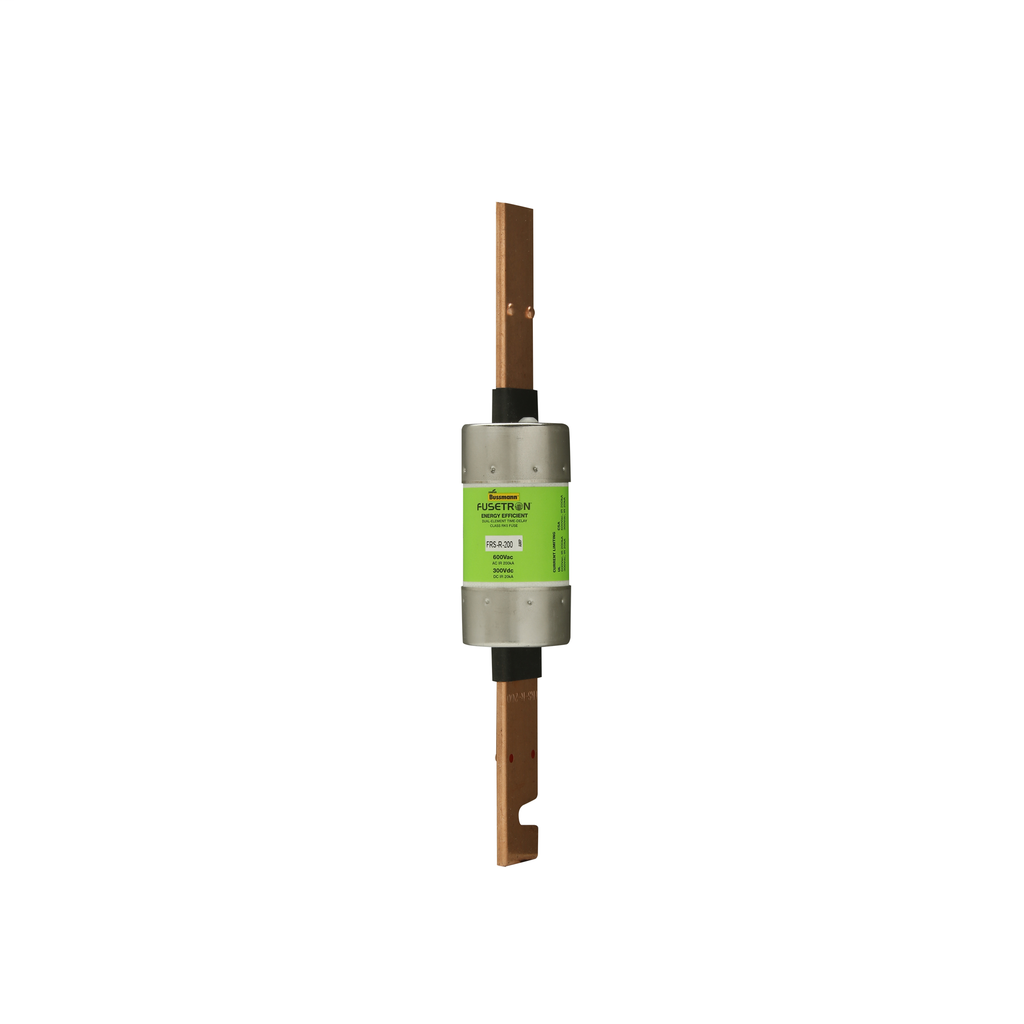

FRS-R Fusetron

Overview

UPC 05171250846
Product Description DUAL-ELEMENT, FRS-R, CLASS RK5, 150 AMP
Codale Part No. 44492
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 600 Vac, 300 Vdc
Length 1.61 IN
Amperage Rating 150A
Connection Type Blade end X blade end
Width 1.61 IN
Height 9.63 IN
Interrupt Rating 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
Diameter 1.61 IN
Weight 1.3 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Catalog Description FUSETRON DUAL ELEMENT FUSE CLASS RK5
Product Short Description FRS-R Fusetron
MDM Item Long Description FUSETRON DUAL ELEMEN
MDM Pkg GTiN 00051712508469
Length 1.61 in
Width 1.61 in
Size 1.61 In Diameter X 9.63 In Length
Voltage 600 Volt
Type Time Delay,Current Limiting
Diameter 1.61 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 9.63 in
Weight 1.3 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class RK5
Tc Connection Blade end X blade en
Amperage 150 Amp
Response Time 10 S at 500%
End Type Blade
Interrupt Rating 200 kA
Sub Brand Bussmann Series
Blade Dimensions 5.0000 IN X 0.8100 I
MDM PRODUCT KEYWORD FLSR150ID, FLSR150, TRS150R
