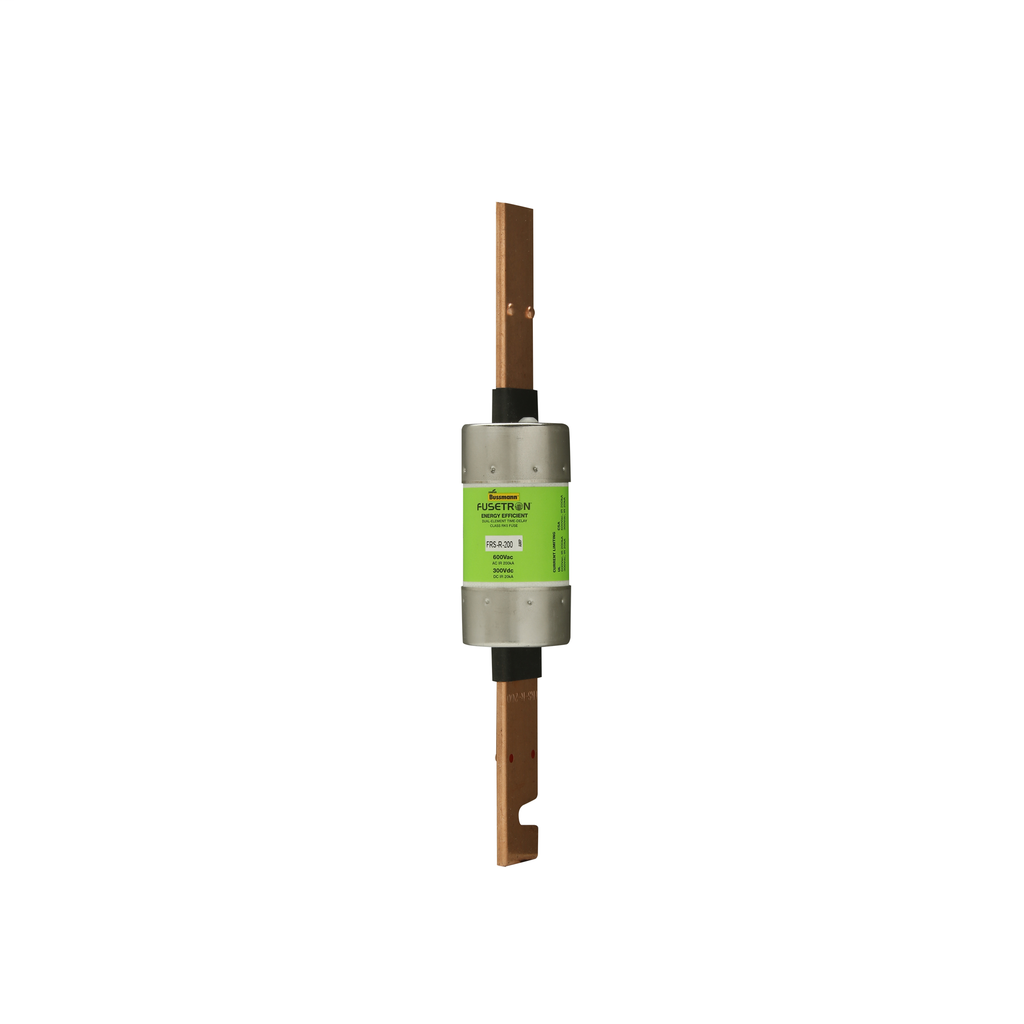

FRS-R Fusetron
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$79.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRS-R-175
Codale Part # 44493
FRS-R Fusetron

Overview

UPC 05171250847
Product Description DUAL-ELEMENT, FRS-R, CLASS RK5, 175 AMP
Codale Part No. 44493
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 600 Vac, 300 Vdc
Length 1.61 IN
Amperage Rating 175A
Connection Type Blade end X blade end
Width 1.61 IN
Height 9.63 IN
Interrupt Rating 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
Diameter 1.61 IN
Weight 1.3 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Catalog Description FUSETRON DUAL ELEMENT FUSE CLASS RK5
Product Short Description FRS-R Fusetron
Item Long Description Eaton Bussmann series FRS-R fuse, 600 Vac, 300 Vdc, 175A, 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
MDM Pkg GTiN 00051712508476
Length 5 in
Width 1.61 in
Size 1.61 In Diameter X 9.63 In Length
Voltage 600 Volt
Type Current Limiting,Time Delay
Diameter 1.61 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .81 in
Weight .15 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class RK-5
Tc Connection Blade end X blade en
Amperage 175 Amp
Response Time 10 S at 500%
End Type Blade
Interrupt Rating 20 kA
Sub Brand Bussmann Series
Blade Dimensions 5.0000 IN X 0.8100 I
