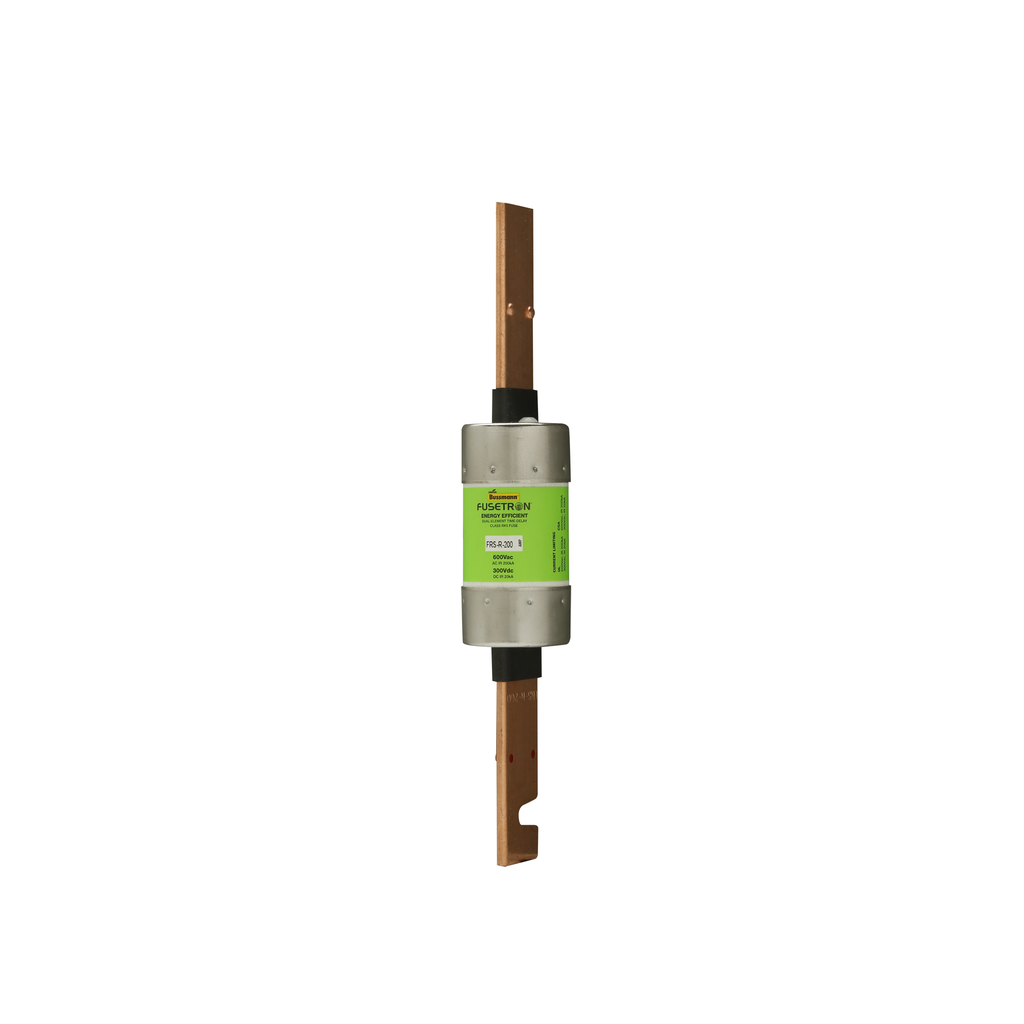

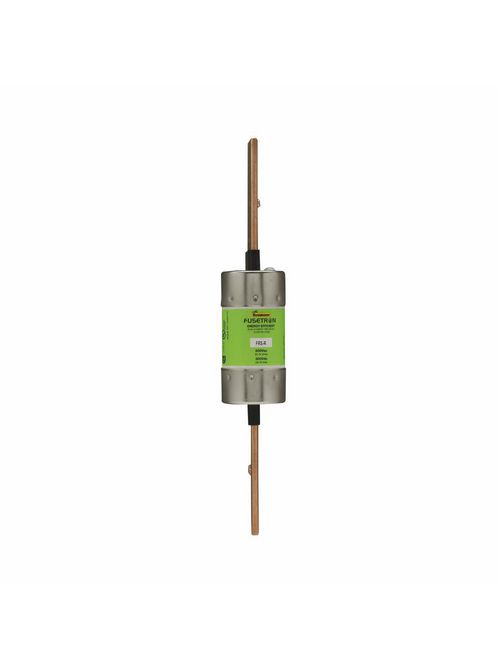

Bussmann Series FRS-R-200 Class RK5 Fusetron Dual Element Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$77.99/ea
In Stock | 49 available at 9 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRS-R-200
Codale Part # 44500

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
  • Type: Current-limiting, time delay
  • Number Of Elements: Dual
  • Connection: Blade end X blade end
  • Response Time: 10s at 500%
  • Class: Class RK5
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Combination starters, motor control centers, machinery disconnects, power panelboards
  • Amperage Rating: 200A
  • Diameter: 1.61 IN
  • Packaging Type: Standard

General

  • UPC: 051712508483
  • Product Length/Depth: 5 IN
  • Product Height: .81 IN
  • Product Width: .81 IN
  • Product Weight: .4 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171250848
Codale Part No. 44500
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 600 Vac, 300 Vdc
Length 1.61 IN
Amperage Rating 200A
Connection Type Blade end X blade end
Width 1.61 IN
Height 9.63 IN
Interrupt Rating 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
Diameter 1.61 IN
Weight 1.3 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Item Long Description Eaton Bussmann series FRS-R fuse, 600 Vac, 300 Vdc, 200A, 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
Length 5 in
Width 1.61 in
Size 1.61 In Diameter X 9.63 In Length
Voltage 300 Volt
Type Current Limiting,Time Delay
Diameter 1.61 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .81 in
Weight .4 lb
Standard CE,CSA,UL 248-12
Connection Type Blade
Family Brand Name Bussmann Series
Class RK5
Tc Connection Blade end x blade end
Amperage 200 Amp
Response Time 10 seconds at 500%
End Type Blade
Interrupt Rating 20 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 5.0000 IN X 0.8100 IN X 0.8100 IN
