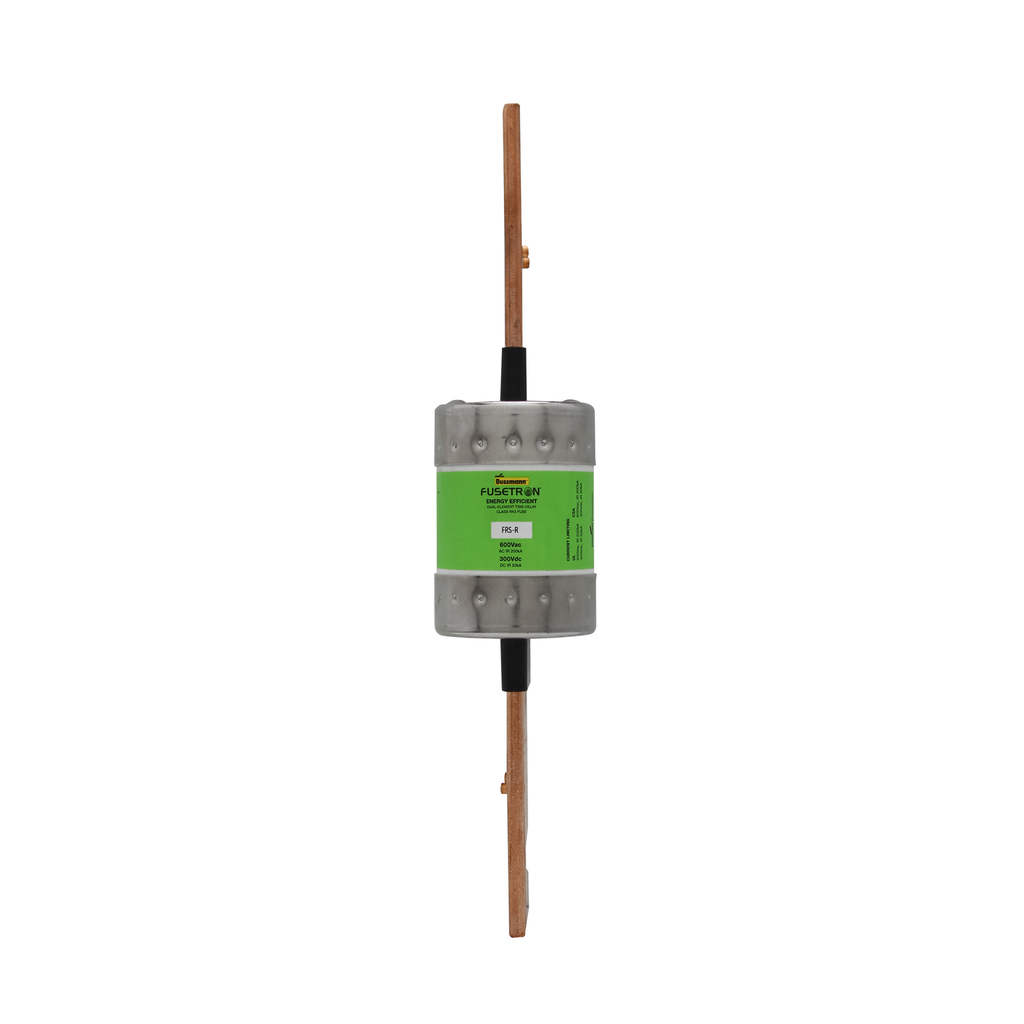

FRS-R Fusetron
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRS-R-250
Codale Part # 44181
FRS-R Fusetron


UPC 05171250850
Product Description DUAL-ELEMENT, FRS-R, CLASS RK5, 250 AMP
Codale Part No. 44181
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 600 Vac, 300 Vdc
Length 2.34 IN
Amperage Rating 250A
Connection Type Blade end X blade end
Width 2.34 IN
Height 11.63 IN
Interrupt Rating 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
Diameter 2.34 IN
Weight 2.25 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Product Short Description FRS-R Fusetron
Item Long Description Eaton Bussmann series FRS-R fuse, 600 Vac, 300 Vdc, 250A, 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
MDM Pkg GTiN 00051712508506
Length 2.34 in
Width 2.34 in
Size 2.34 In Diameter X 11.63 In Length
Voltage 300 Volt
Type Current Limiting,Time Delay
Diameter 2.34 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 11.63 in
Weight 2.25 lb
Standard CE,CSA,UL 248-12
Connection Type Blade
Family Brand Name Bussmann Series
Class Class RK5
Tc Connection Blade end X blade en
Amperage 250 Amp
Response Time 10 seconds at 500%
End Type Blade
Interrupt Rating 20 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 5.0000 IN X 0.8100 I
