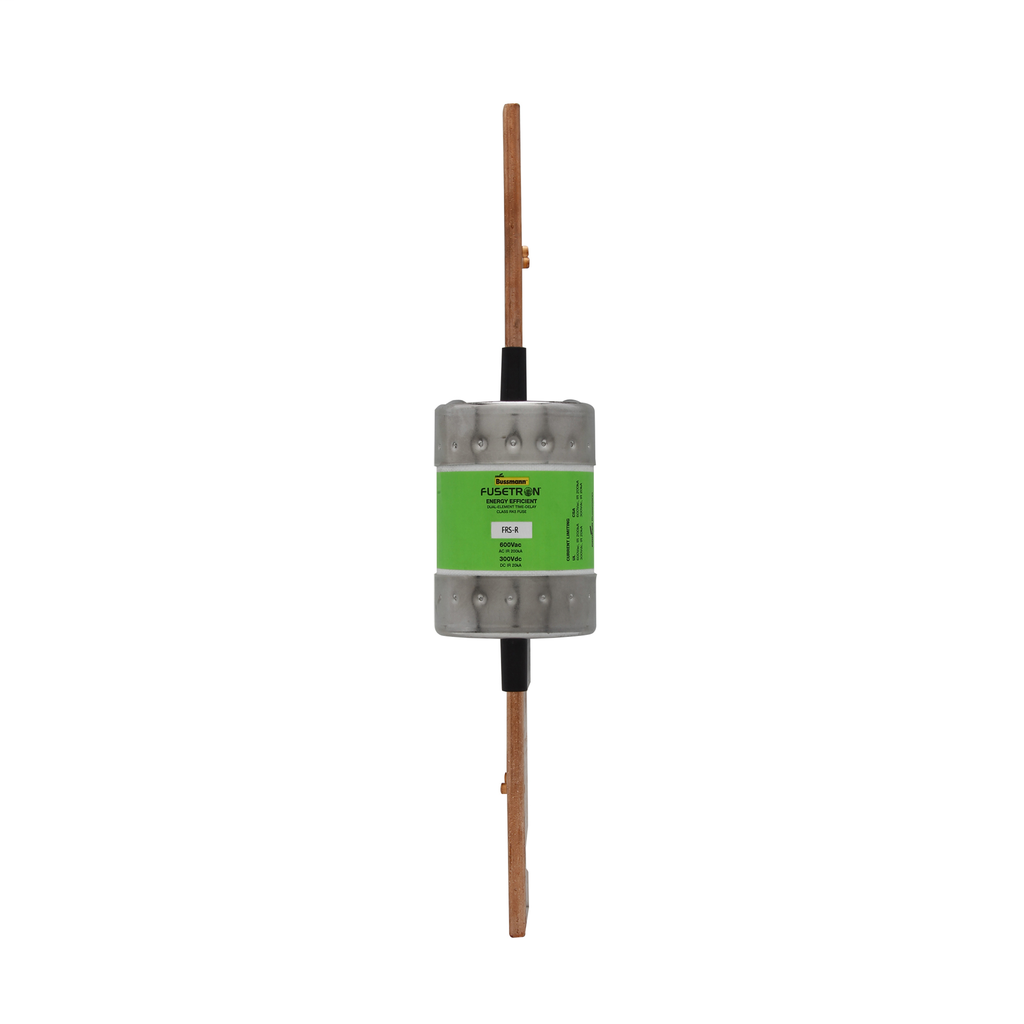

FRS-R Fusetron | Codale Electric Supply

UPC	05171250852
Product Description	DUAL-ELEMENT, FRS-R, CLASS RK5, 350 AMP
Codale Part No.	43914
Type	Current-limiting, time delay
Application	Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating	600 Vac, 300 Vdc
Length	2.34 IN
Amperage Rating	350A
Connection Type	Blade end X blade end
Width	2.34 IN
Height	11.63 IN
Interrupt Rating	200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
Diameter	2.34 IN
Weight	2.25 LB
Class	Class RK5
Response Time	10s at 500%
Packaging Type	Standard
Catalog Description	FUSETRON DUAL ELEMENT FUSE CLASS RK5
Product Short Description	FRS-R Fusetron
Item Long Description	Eaton Bussmann series FRS-R fuse, 600 Vac, 300 Vdc, 350A, 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
MDM Pkg GTiN	00051712508520
Length	5.5 in
Width	2.34 in
Size	2.34 In Diameter X 11.63 In Length
Voltage	300 Volt
Type	Current Limiting,Time Delay
Diameter	2.34 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	1.06 in
Weight	3 lb
Standard	CE,CSA,UL 248-12
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	RK5
Tc Connection	Blade end X blade en
Amperage	350 Amp
Response Time	10 seconds at 500%
End Type	Blade
Interrupt Rating	20 kA
Element	Dual
Sub Brand	Bussmann Series
Blade Dimensions	5.5000 IN X 1.0600 I
