Manufacturer | Eaton Bussmann |
---|---|
Mfg Catalog # | FRS-R-400 |
Codale Part # | 44512 |
UPC | 05171250853 |

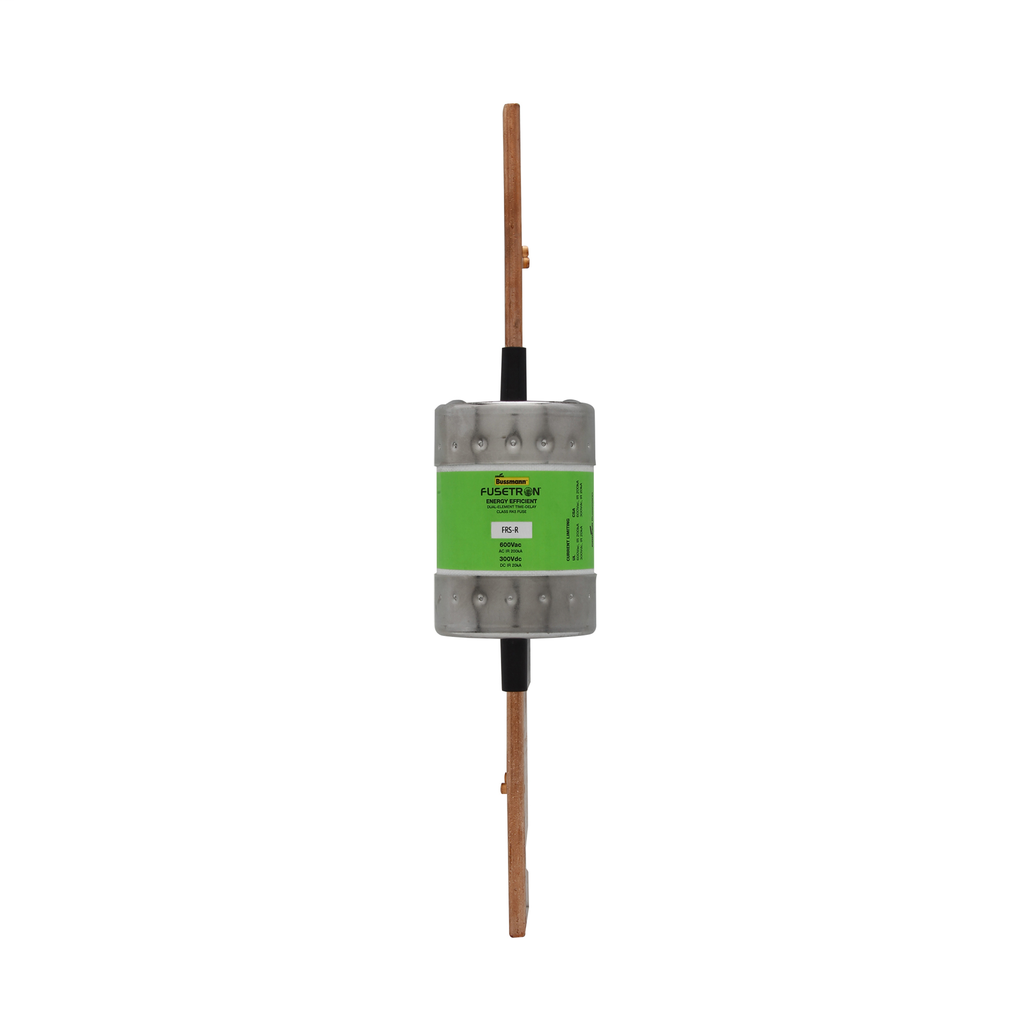

Product Description | DUAL-ELEMENT, FRS-R, CLASS RK5, 400 AMP |
Codale Part No. | 44512 |
Type | Current-limiting, time delay |
Application | Combination starters, motor control centers, machinery disconnects, power panelboards |
Voltage Rating | 600 Vac, 300 Vdc |
Length | 2.34 IN |
Amperage Rating | 400A |
Connection Type | Blade end X blade end |
Width | 2.34 IN |
Height | 11.63 IN |
Interrupt Rating | 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc |
Diameter | 2.34 IN |
Weight | 2.25 LB |
Class | Class RK5 |
Response Time | 10s at 500% |
Packaging Type | Standard |
Catalog Description | FUSETRON DUAL ELEMENT FUSE CLASS RK5 |
Product Short Description | FRS-R Fusetron |
Item Long Description | Eaton Bussmann series FRS-R fuse, 600 Vac, 300 Vdc, 400A, 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5 |
MDM Pkg GTiN | 00051712508537 |
Length | 5.5 in |
Width | 2.34 in |
Size | 2.34 In Diameter X 11.63 In Length |
Voltage | 300 Volt |
Type | Current Limiting,Time Delay |
Diameter | 2.34 in |
Applications | Ind Facilities & Factories - Facility: Safety and Security Systems |
Height | 1.06 in |
Weight | 3 lb |
Standard | CE,CSA,UL 248-12 |
Connection Type | Blade |
Family Brand Name | Bussmann Series |
Class | RK5 |
Tc Connection | Blade end X blade en |
Amperage | 400 Amp |
Response Time | 10 seconds at 500% |
End Type | Blade |
Interrupt Rating | 20 kA |
Element | Dual |
Sub Brand | Bussmann Series |
Blade Dimensions | 5.5000 IN X 1.0600 I |
