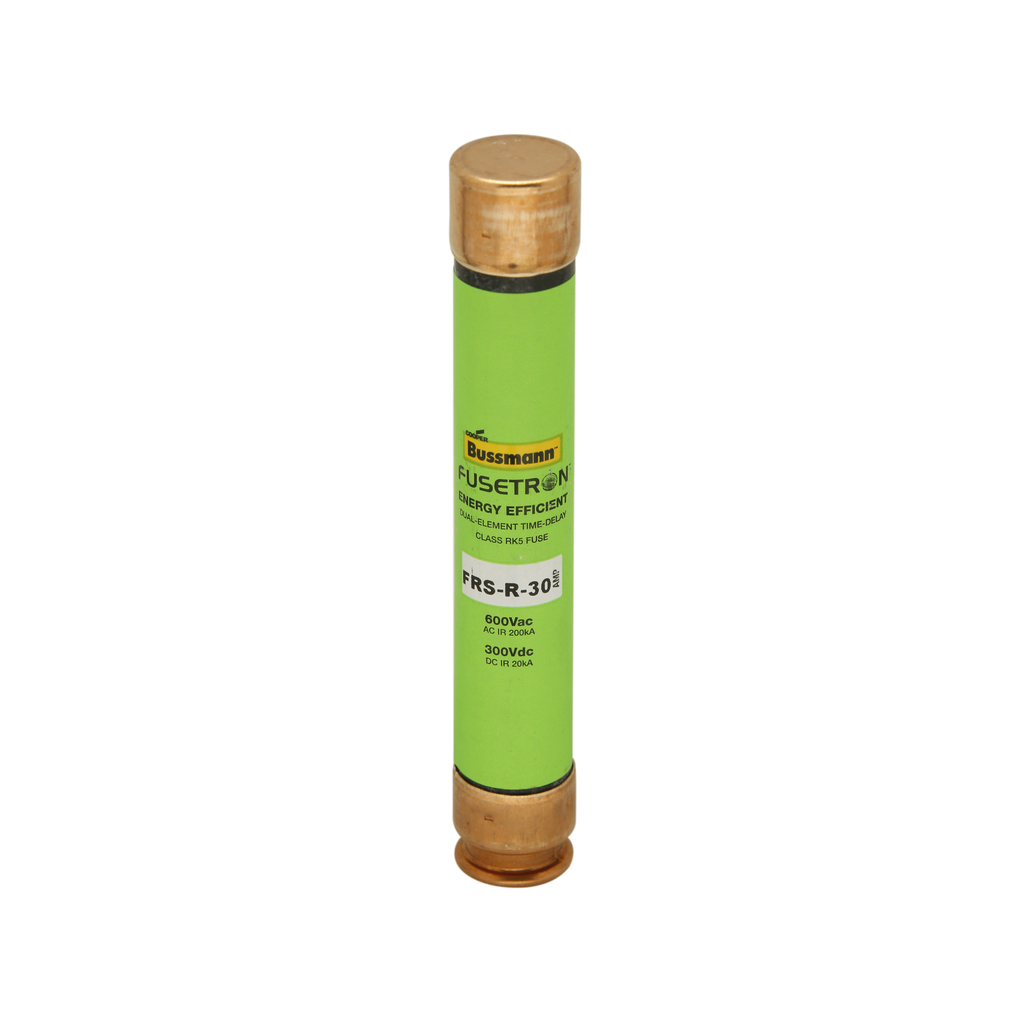

FRS-R Fusetron
Product image thumbnail 0
Product image thumbnail 1
$13.77/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRS-R-5
Codale Part # 44514
FRS-R Fusetron

Overview

UPC 05171250822
Product Description DUAL-ELEMENT, FRS-R, CLASS RK5, 5 AMP
Codale Part No. 44514
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 600 Vac, 300 Vdc
Length .81 IN
Amperage Rating 5A
Connection Type Ferrule end X ferrule end
Width .81 IN
Height 5 IN
Interrupt Rating 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
Diameter .81 IN
Weight .15 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Catalog Description FUSETRON DUAL ELEMENT FUSE CLASS RK5
Product Short Description FRS-R Fusetron
Item Long Description Eaton Bussmann series FRS-R fuse, 600 Vac, 300 Vdc, 5A, 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc, Non Indicating, Current-limiting, time delay, Ferrule end X ferrule end, Class RK5
MDM Pkg GTiN 00051712508223
Length 5.5 in
Width .81 in
Size 0.81 In Diameter X 5.00 In Length
Voltage 600 Volt
Type Current Limiting,Time Delay
Diameter .81 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 1.06 in
Weight .35 lb
Connection Type Ferrule
Family Brand Name Bussmann Series
Class RK-5
Tc Connection Ferrule end X ferrul
Amperage 5 Amp
Response Time 10 S at 500%
End Type Ferrule
Interrupt Rating 20 kA
Sub Brand Bussmann Series
Blade Dimensions 5.5000 IN X 1.0600 I
MDM PRODUCT KEYWORD TRS5R, FLSR005, FLSR005ID, ECSR5
