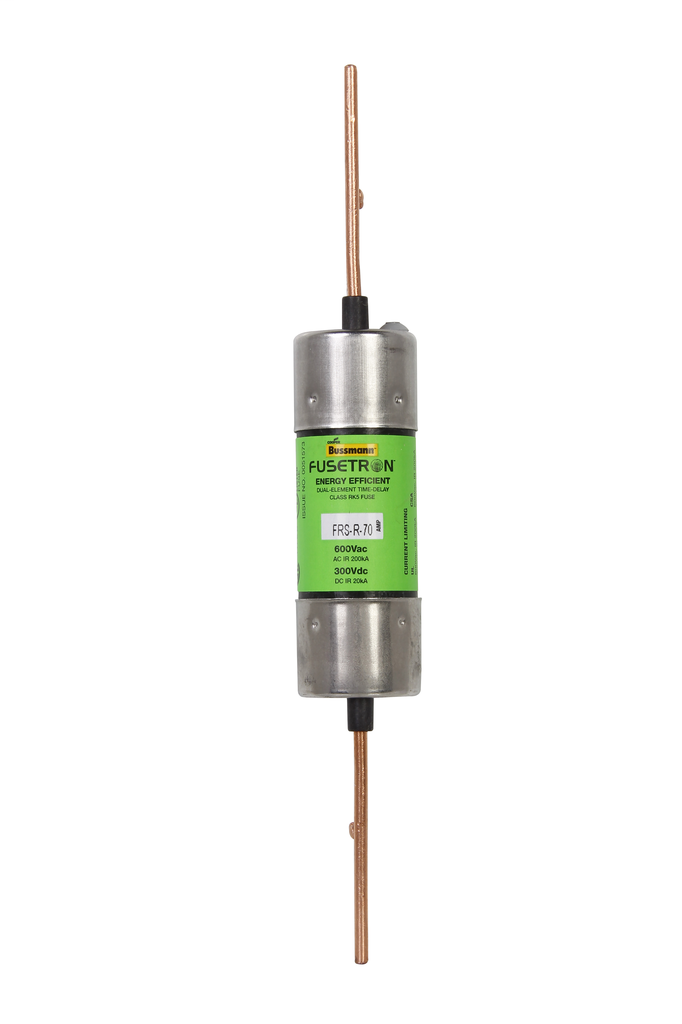

BUSSMANN FRSR70 600V DUAL-ELEMENT RK5 TIME-DELAY FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$45.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # FRS-R-70
Codale Part # 44521
BUSSMANN FRSR70 600V DUAL-ELEMENT RK5 TIME-DELAY FUSE

Overview

UPC 05171250840
Product Description DUAL-ELEMENT, FRS-R, CLASS RK5, 70 AMP
Codale Part No. 44521
Type Current-limiting, time delay
Application Combination starters, motor control centers, machinery disconnects, power panelboards
Voltage Rating 600 Vac, 300 Vdc
Length 1.11 IN
Amperage Rating 70A
Connection Type Blade end X blade end
Width 1.11 IN
Height 7.88 IN
Interrupt Rating 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
Diameter 1.11 IN
Weight .4 LB
Class Class RK5
Response Time 10s at 500%
Packaging Type Standard
Catalog Description FUSETRON DUAL ELEMENT FUSE CLASS RK5
Product Short Description FRS-R Fusetron
MDM Item Long Description 70A 600V Class RK5 F
MDM Pkg GTiN 00051712508407
Length 5 in
Width 1.11 in
Size 1.11 In Diameter X 7.88 In Length
Voltage 600 Volt
Type Current Limiting,Time Delay
Diameter 1.11 in
Applications Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Height .81 in
Weight .4 lb
Standard CE,UL 248-12,CSA
Connection Type Blade
Family Brand Name Eaton
Class Class RK5
Tc Connection Blade End X Blade En
Amperage 70 Amp
Response Time 10 seconds at 500%
End Type Blade
Interrupt Rating 200 kA
Element Dual
Sub Brand Fusetron
