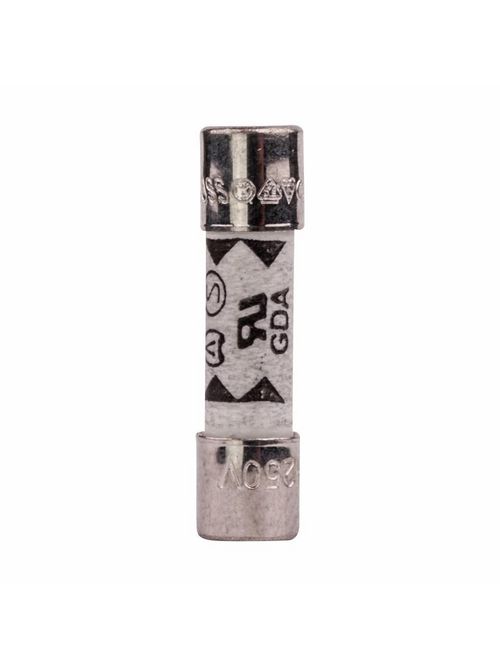

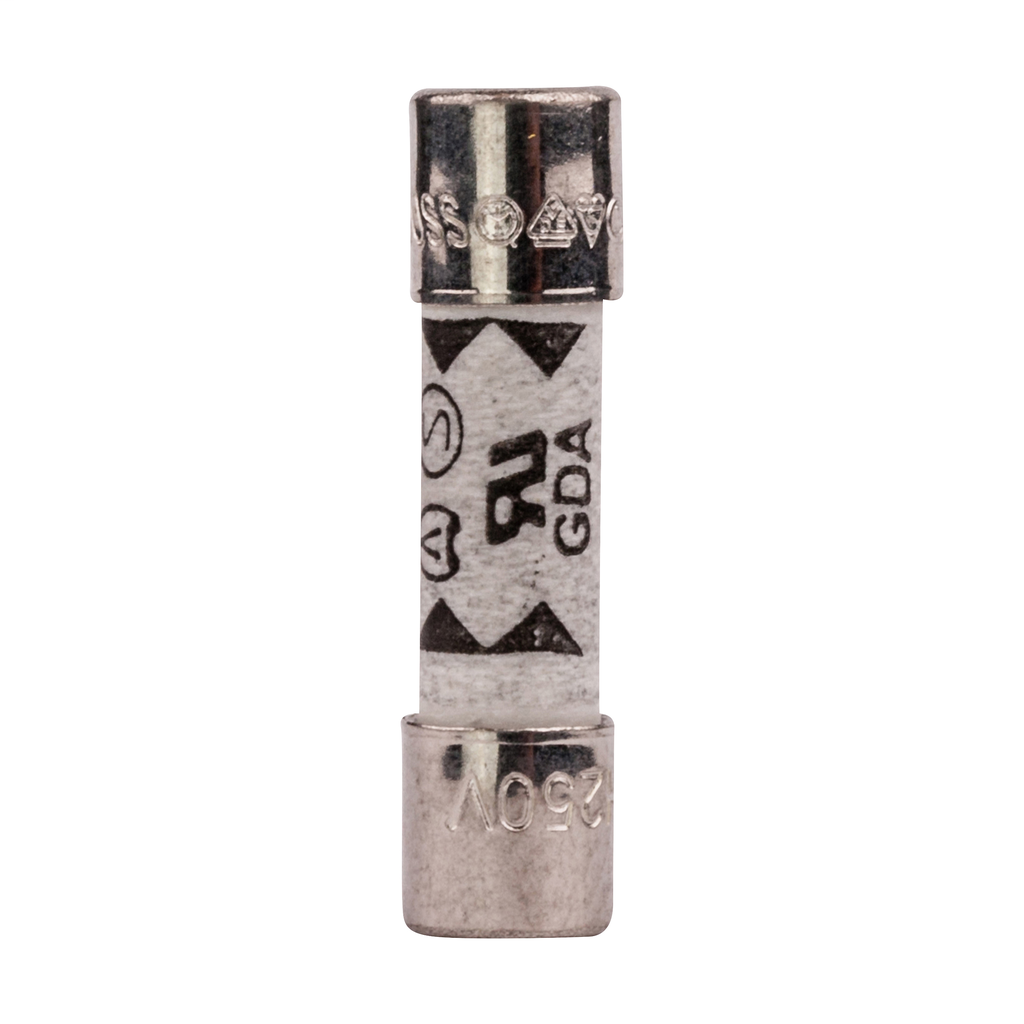

Bussmann Series GDA-5A 5 Amp Small Dimension Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # GDA-5A
Codale Part # 46022


  • Height: .787 IN
  • Length: .197 IN
  • Width: .197 IN
  • Weight: .01 LB
  • Type: Electronic, European (IEC)
  • Application: Electronic circuits
  • Voltage Rating: 250V
  • Amperage Rating: 5A
  • Interrupt Rating: 1.5 kAIC at 250 Vac
  • Connection: Ferrule end X ferrule end
  • Material Type: Ceramic tube with nickel-plated endcaps
  • Packaging Type: Standard
  • Frequency Rating Maximum: 50 HZ
  • Melting (L2T): Typical: 25A
  • Resistance: Typical DC cold: .019 ohms
  • Voltage Drop: Typical: 155 mV
  • Fuse Indicator: Non Indicating
  • Notes: High breaking capacity


UPC 05171243136
Codale Part No. 46022
Type Electronic, European (IEC)
Application Electronic circuits
Voltage Rating 250V
Length .197 IN
Amperage Rating 5A
Connection Type Ferrule end X ferrule end
Width .197 IN
Height .787 IN
Interrupt Rating 1.5 kAIC at 250 Vac
Weight .01 LB
Resistance Typical DC cold: .019 ohms
Packaging Type Standard
MDM Pkg GTiN 00051712431361
Length .197 in
Width .197 in
Size 5.20 mm Diameter X 20.00 mm Height
Voltage 250 Volt
Type Electronic, European (IEC)
Applications Electronic Circuits
Height .787 in
Weight .01 lb
Frequency 50 Hz
Connection Type Ferrule
Family Brand Name Bussmann Series
Tc Connection Ferrule End X Ferrule End
Amperage 5 Amp
End Type Ferrule
Interrupt Rating 1.5 kA
