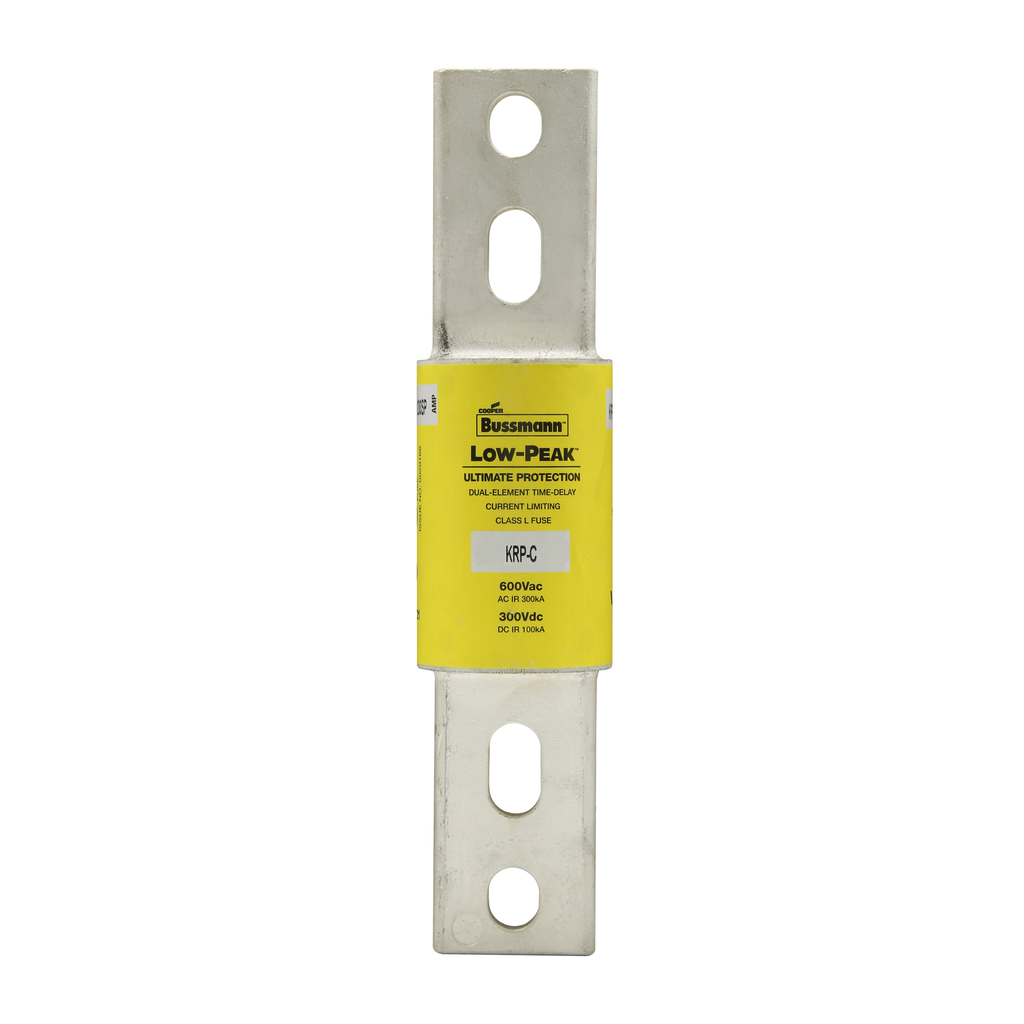

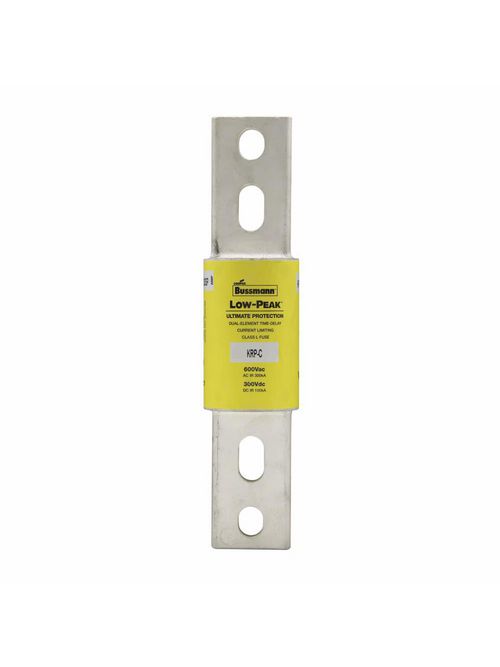

KRP-C Low Peak | Codale Electric Supply

UPC	05171260510
Codale Part No.	43995
Type	Current-limiting, Time-delay
Application	Large distribution switchboards, large machinery disconnects, power panelboards
Voltage Rating	600 Vac, 300 Vdc
Length	2.78 IN
Amperage Rating	1000A
Connection Type	Bolted blade end X bolted blade end
Width	2.78 IN
Height	1.75 IN
Interrupt Rating	300 kAIC at 600 Vac, 100 kAIC Vdc
Diameter	2.5 IN
Weight	4.15 LB
Class	Class L
Response Time	4 S at 500%
Packaging Type	Standard
Catalog Description	LOW-PEAK TIME-DELAY 300K
Product Short Description	KRP-C Low Peak
Item Long Description	Eaton Bussmann Series KRP-C Fuse, Current-limiting, Time-delay, 600 Vac, 300 Vdc, 1000A, 300 kAIC at 600 Vac, 100 kAIC Vdc, Class L, Bolted blade end X bolted blade end, 1700, 2.5, Inch, Non Indicating, 4 S at 500%
MDM Pkg GTiN	00051712605106
Length	10.75 in
Size	2.50 In Diameter X 10.75 In Length
Voltage	300 Volt
Type	Current Limiting,Time-Delay
Diameter	2.5 in
Material	Melamine Glass Tube
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	2.78 in
Weight	4.15 lb
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	Class L
Tc Connection	Bolted blade end x b
Amperage	1000 Amp
Response Time	4 sec at 500%
End Type	Blade,Bolted
Interrupt Rating	100 kA
Sub Brand	Bussmann Series
Blade Dimensions	10.7500 IN X 2.7800
