Manufacturer Eaton Bussmann
Mfg Catalog # KRP-C-1600SP
Codale Part # 43996

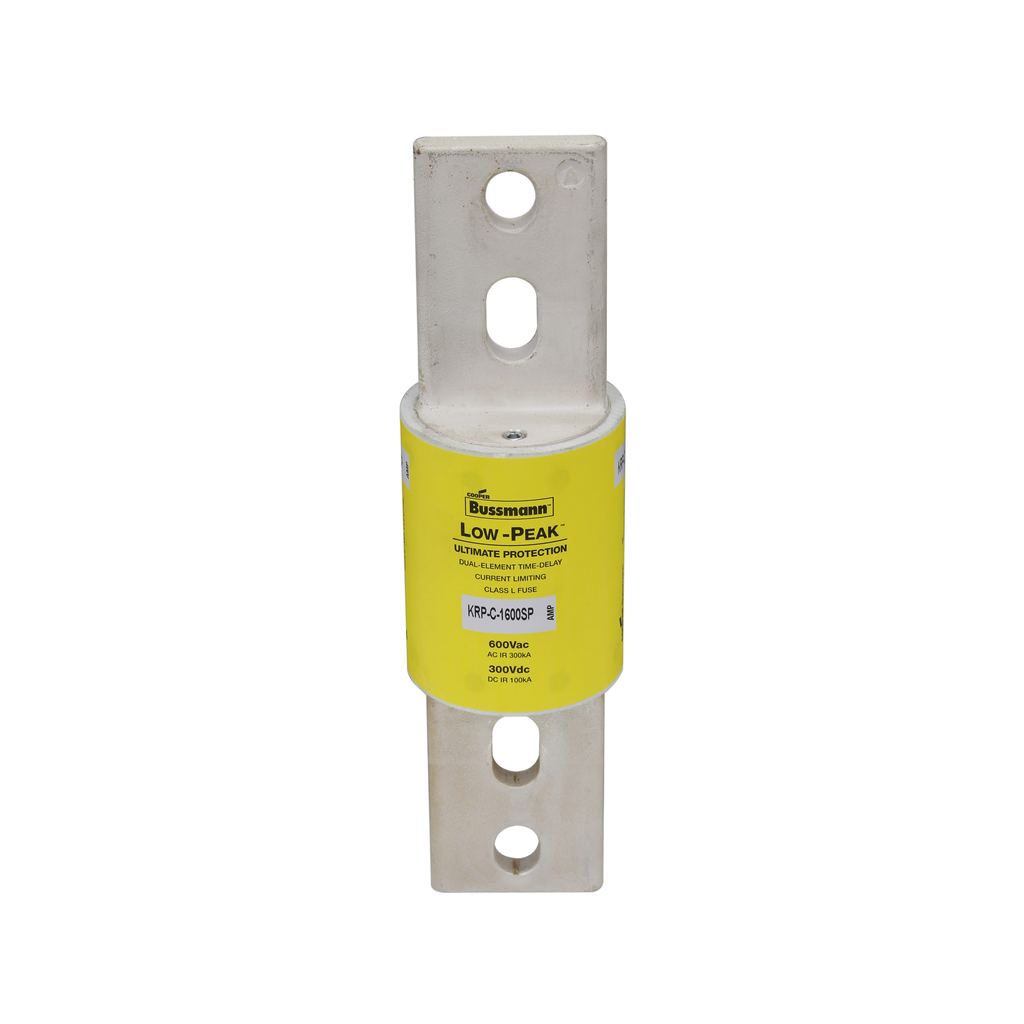

KRP-C Low Peak

Overview

UPC 05171260516
Codale Part No. 43996
Type Current-limiting, Time-delay
Application Large distribution switchboards, large machinery disconnects, power panelboards
Voltage Rating 600 Vac, 300 Vdc
Length 2.66 IN
Amperage Rating 1600A
Connection Type Bolted blade end X bolted blade end
Width 2.66 IN
Height 1.5 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC Vdc
Diameter 3 IN
Weight 5.72 LB
Class Class L
Response Time 4 S at 500%
Packaging Type Standard
Catalog Description LOW-PEAK TIME-DELAY 300K
Product Short Description KRP-C Low Peak
Item Long Description Eaton Bussmann Series KRP-C Fuse, Current-limiting, Time-delay, 600 Vac, 300 Vdc, 1600A, 300 kAIC at 600 Vac, 100 kAIC Vdc, Class L, Bolted blade end X bolted blade end, 1700, 3, Inch, Non Indicating, 4 S at 500%
MDM Pkg GTiN 00051712605168
Length 10.75 in
Width 2.66 in
Size 3.00 In Diameter X 10.75 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter 3 in
Material Melamine Glass Tube
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 3.03 in
Weight 5.72 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class L
Tc Connection Bolted blade end x b
Amperage 1600 Amp
Response Time 4 S At 500%
End Type Blade,Bolted
Interrupt Rating 100 kA
Sub Brand Bussmann Series
Blade Dimensions 10.7500 IN X 3.0300
