Manufacturer Eaton Bussmann
Mfg Catalog # KRP-C-800SP
Codale Part # 44257

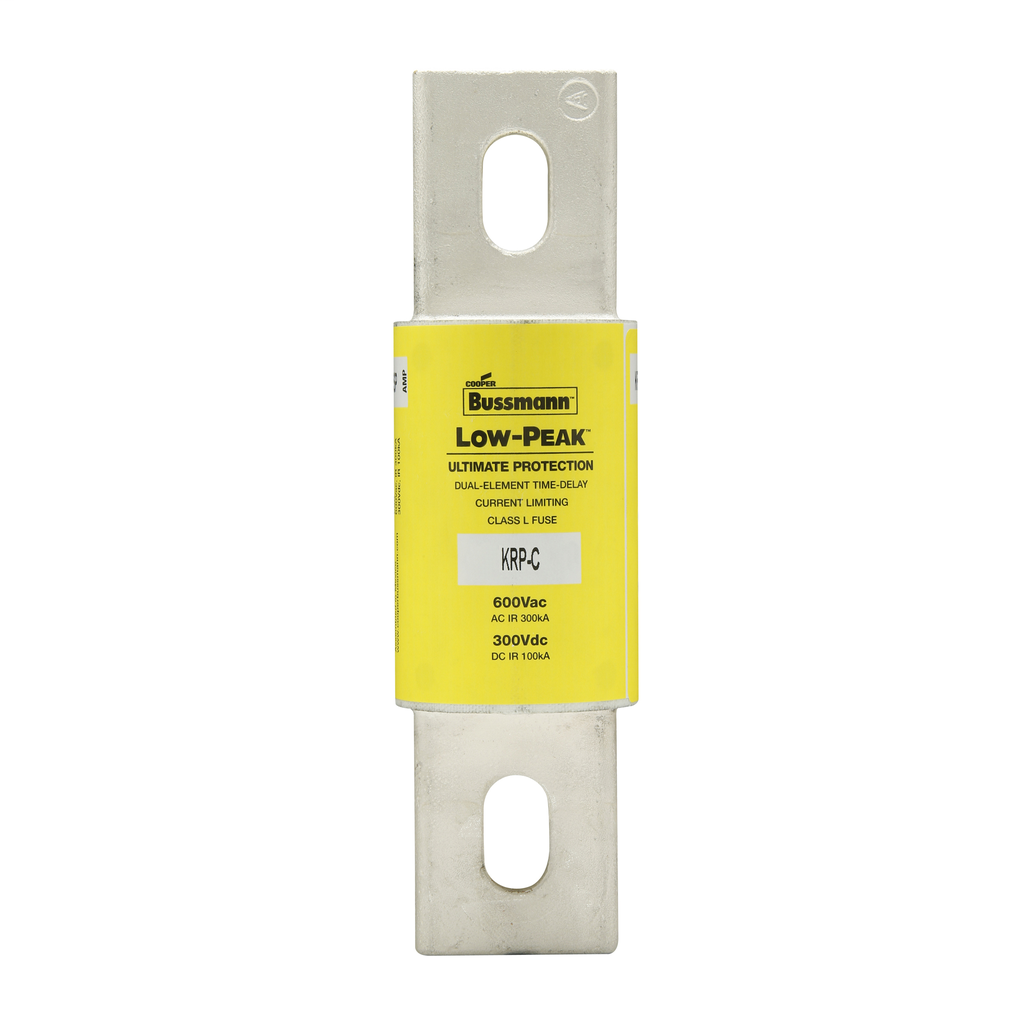

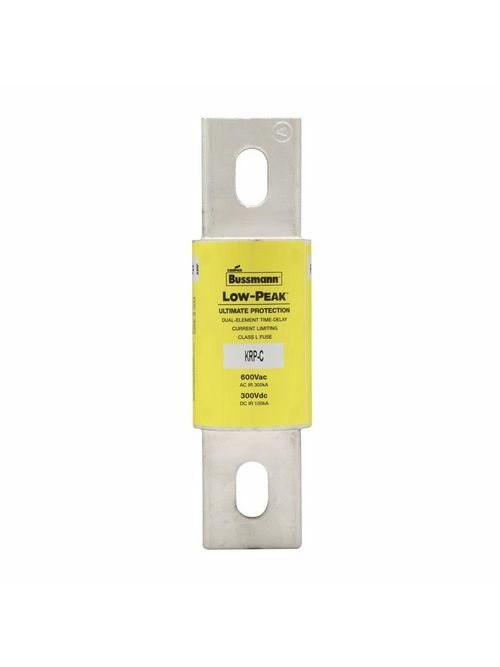

KRP-C Low Peak

Overview

UPC 05171260508
Product Description LOW-PEAK TIME-DELAY 300K, CLASS L
Codale Part No. 44257
Type Current-limiting, Time-delay
Application Large distribution switchboards, large machinery disconnects, power panelboards
Voltage Rating 600 Vac, 300 Vdc
Length 2.53 IN
Amperage Rating 800A
Connection Type Bolted blade end X bolted blade end
Width 2.53 IN
Height 8.63 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kA at 300 kAIC Vdc
Diameter 2.5 IN
Weight 3.8 LB
Class Class L
Response Time 4 S at 500%
Packaging Type Standard
Catalog Description LOW-PEAK TIME-DELAY 300K
Product Short Description KRP-C Low Peak
Item Long Description Eaton Bussmann Series KRP-C Fuse, Current-limiting, Time-delay, 600 Vac, 300 Vdc, 800A, 300 kAIC at 600 Vac, 100 kA at 300 kAIC Vdc, Class L, Bolted blade end X bolted blade end, 1700, 2.5, Inch, Non Indicating, 4 S at 500%
MDM Pkg GTiN 00051712605083
Length 8.63 in
Width 2.53 in
Size 2.50 In Diameter X 8.63 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter 2.5 in
Material Melamine Glass Tube
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 2.53 in
Weight 3.8 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class L
Tc Connection Bolted blade end x b
Amperage 800 Amp
Response Time 4 S At 500%
End Type Blade,Bolted
Interrupt Rating 100 kA
Sub Brand Bussmann Series
Blade Dimensions 8.6300 IN X 2.5300 I
