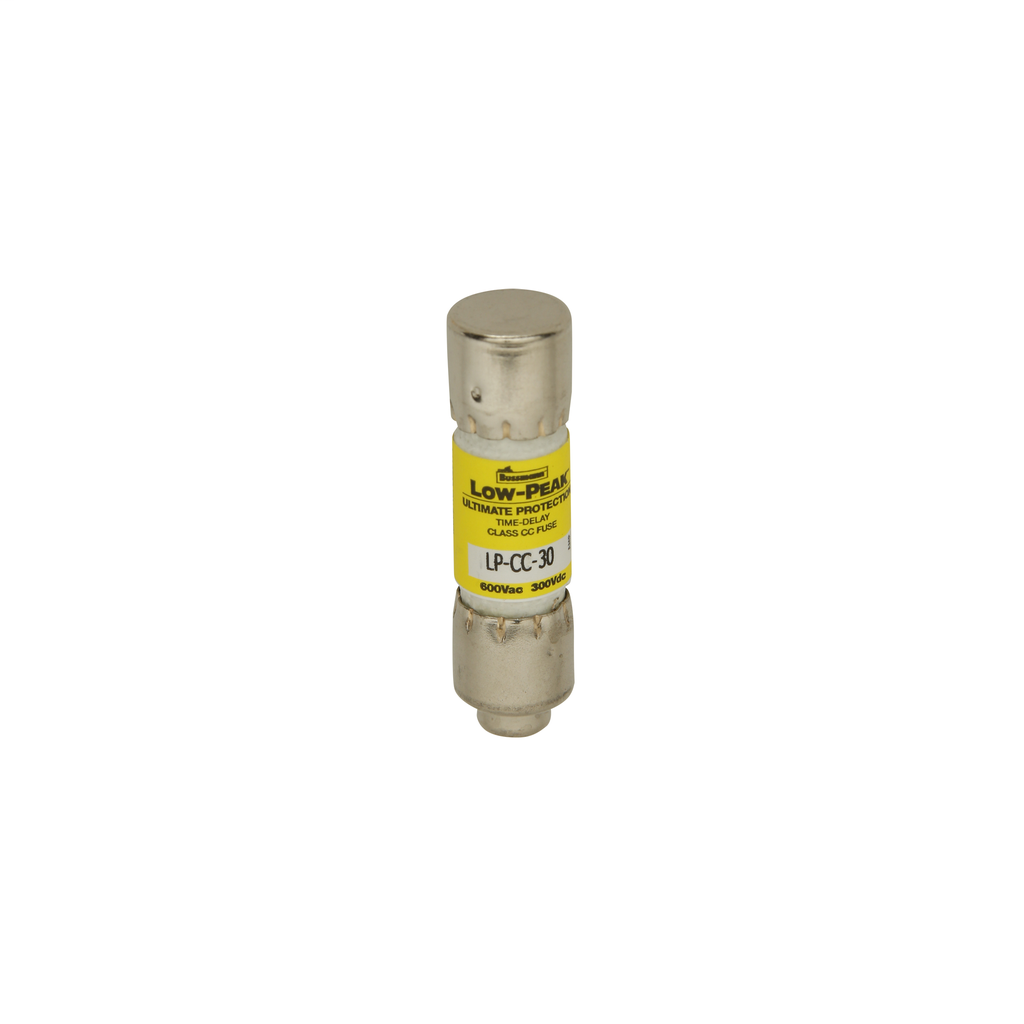

Low Peak Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # LP-CC-10
Codale Part # 44092
Low Peak Fuse


UPC 05171218024
Product Description LOW PEAK CC TIME DELAY
Codale Part No. 44092
Type Current-limiting, Time-delay
Application Specialized circuits and industrial control
Voltage Rating 600 Vac, 150 Vdc
Length .41 IN
Amperage Rating 10A
Connection Type Ferrule end X ferrule end
Width .41 IN
Height 1.5 IN
Interrupt Rating 200 kAIC at 600 Vac, 20 kAIC at 150 Vdc
Diameter .40625 IN
Weight .15 LB
Class Class CC
Response Time 12s at 200%
Packaging Type Standard
Catalog Description LOW PEAK CC TIME DELAY
Product Short Description Low Peak Fuse
Item Long Description Eaton Bussmann Series LP-CC Fuse,Low Peak Fuse,Current-Limiting,time delay,10 A,600 Vac,150 Vdc,200 kAIC at 600 Vac,20 kAIC at 150 Vdc,Class CC,12s at 200%,Dual element,Melamine tube,Ferrule end X ferrule end connection,RoHS Compliant
MDM Pkg GTiN 00051712180245
Length 1.5 in
Width .41 in
Size 13/32 In Diameter X 1-1/2 In Length
Voltage 600 Volt
Type Fuse
Diameter .406 in
Material Melamine tube
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .41 in
Weight .15 lb
Connection Type Ferrule
Family Brand Name Bussmann Series
Class CC
Tc Connection Ferrule end x ferrul
Amperage 10 Amp
Response Time 12 S at 200%
End Type Ferrule
Interrupt Rating 200 kAIC at 600 Vac2
Sub Brand Bussmann Series
Blade Dimensions 1.5000 IN X 0.4100 I
