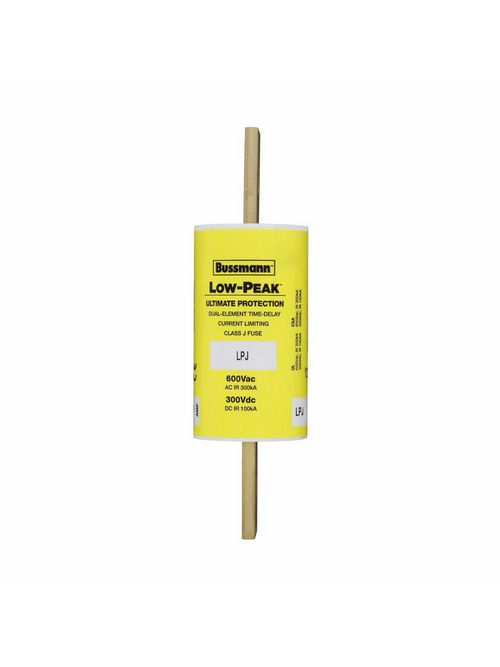

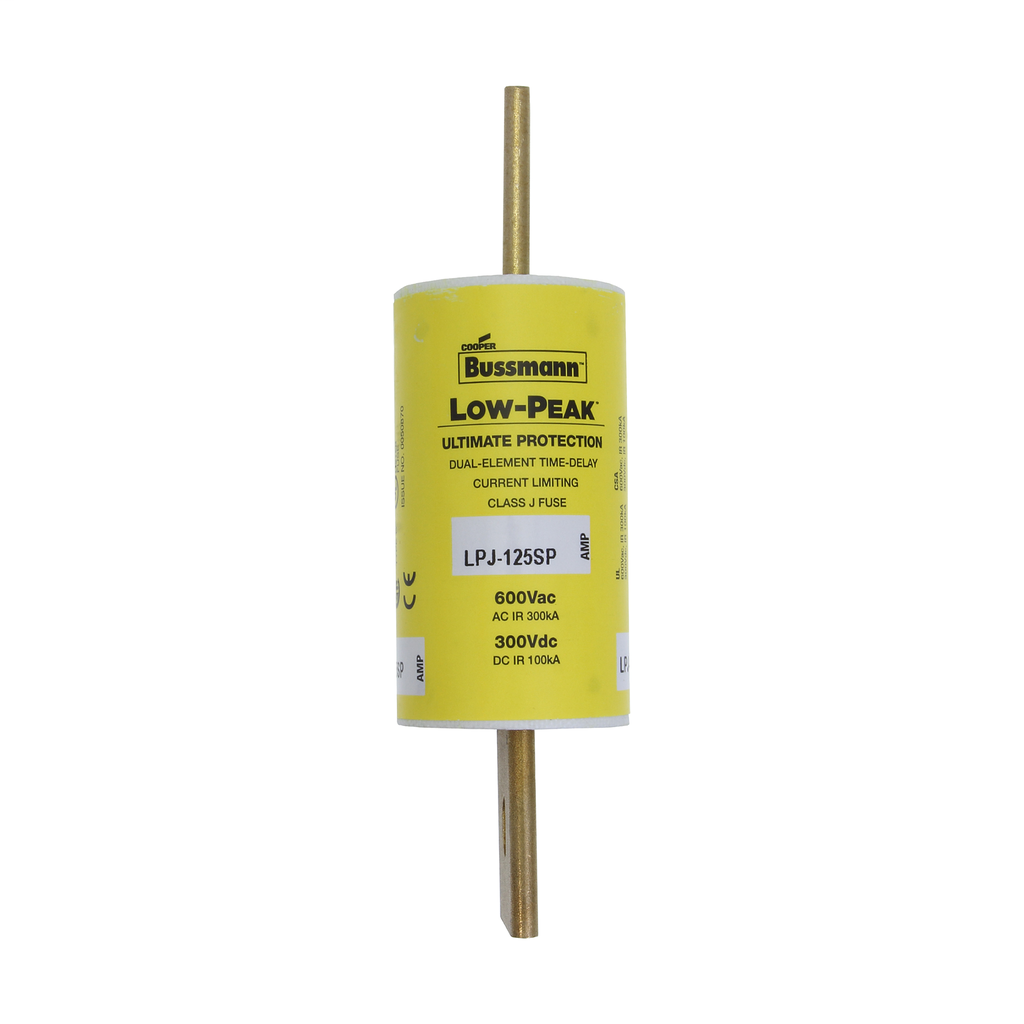

Bussmann Series LPJ-125SP Class J Low Peak Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$158.95/ea
In Stock | 19 available at 4 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # LPJ-125SP
Codale Part # 43952

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC Vdc
  • Type: Current-limiting, Time-delay
  • Number Of Elements: Dual
  • Connection: Bolted blade end X bolted blade end
  • Response Time: 10 S at 500%
  • Class: Class J
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Specialized circuits and industrial control
  • Amperage Rating: 125A
  • Diameter: 1.63 IN
  • Packaging Type: Standard

General

  • UPC: 051712523424
  • Product Length/Depth: 5.75 IN
  • Product Height: 2 IN
  • Product Width: .81 IN
  • Product Weight: .75 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171252342
Codale Part No. 43952
Type Current-limiting, Time-delay
Application Specialized circuits and industrial control
Voltage Rating 600 Vac, 300 Vdc
Length 1.5 IN
Amperage Rating 125A
Connection Type Bolted blade end X bolted blade end
Width 1.5 IN
Height 5.75 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC Vdc
Diameter 1.63 IN
Weight .75 LB
Class Class J
Response Time 10 S at 500%
Packaging Type Standard
Item Long Description Eaton Bussmann Series LPJ Fuse,LPJ Low Peak,Current-limiting,time delay,125 A,600 Vac,300 Vdc,300000 A at 600 Vac,100 kAIC Vdc,Class J,10s at 500% response time,Dual element,Non-indicating,Bolted blade end X bolted blade end connection
MDM Pkg GTiN 00051712523424
Length 5.75 in
Width 1.5 in
Size 1.63 In Diameter X 5.75 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter 1.63 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 2 in
Weight .75 lb
Standard CE,CSA C22.2,UL
Connection Type Blade
Family Brand Name Bussmann Series
Class J
Tc Connection Bolted blade end x bolted blade end
Amperage 125 Amp
Response Time 10 seconds at 500%
End Type Blade,Bolted
Interrupt Rating 100 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 5.7500 IN X 0.8100 IN X 2.0000 IN
