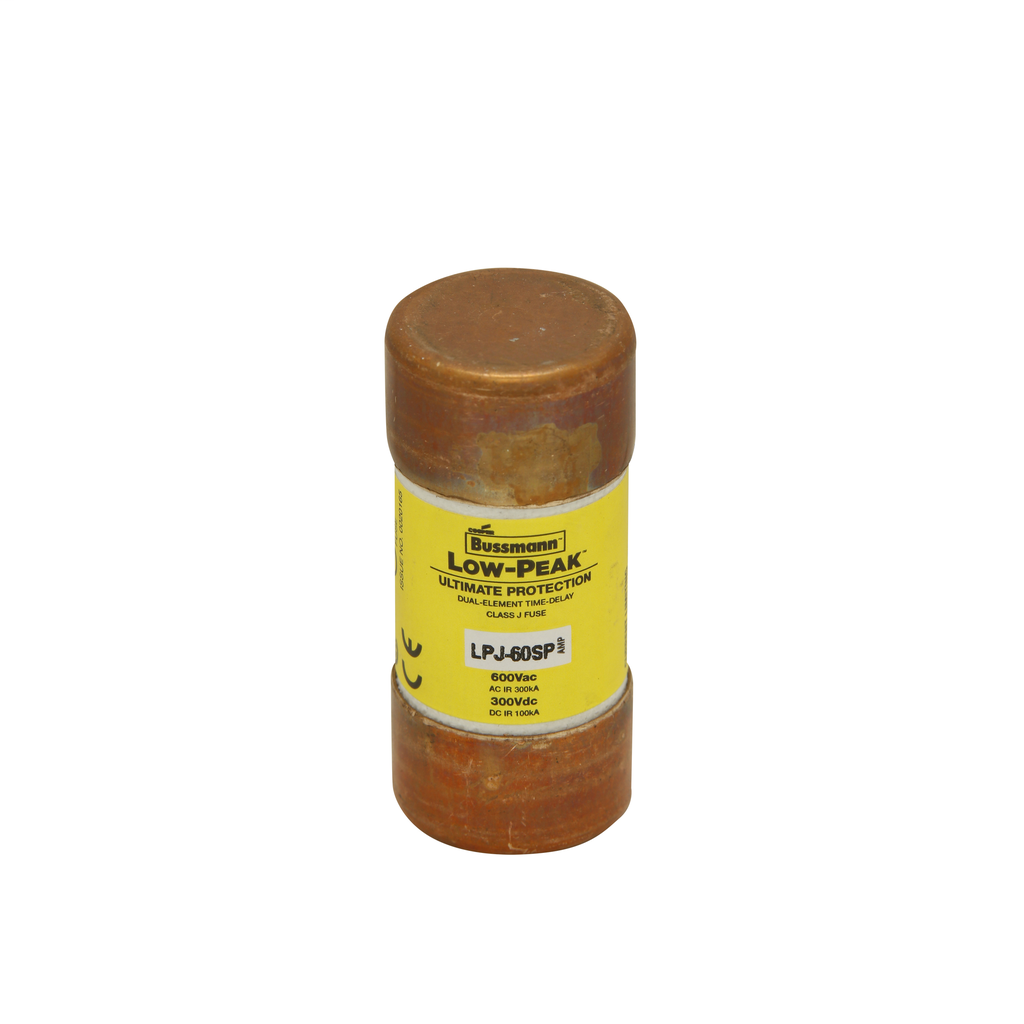

Manufacturer | Eaton Bussmann |
---|---|
Mfg Catalog # | LPJ-60SP |
Codale Part # | 43949 |
UPC | 05171252336 |
Codale Part No. | 43949 |
Type | Current-limiting, Time-delay |
Application | Specialized circuits and industrial control |
Voltage Rating | 600 Vac, 300 Vdc |
Length | 1.6 IN |
Amperage Rating | 60A |
Connection Type | Ferrule end X ferrule end |
Width | 1.6 IN |
Height | 2.38 IN |
Interrupt Rating | 300 kAIC at 600 Vac, 100 kAIC Vdc |
Diameter | 1.06 IN |
Weight | .19 LB |
Class | Class J |
Response Time | 10 S at 500% |
Packaging Type | Standard |
Item Long Description | Eaton Bussmann Series LPJ Fuse,LPJ Low Peak,Current-limiting,time delay,60 A,600 Vac,300 Vdc,300000 A at 600 Vac,100 kAIC Vdc,Class J,10s at 500% response time,Dual element,Non-indicating,Ferrule end X ferrule end connection,1.06 in dia. |
Length | 2.38 in |
Width | 1.6 in |
Size | 1.06 In Diameter X 2.38 In Length |
Voltage | 300 Volt |
Type | Current Limiting,Time-Delay |
Diameter | 1.06 in |
Applications | Ind Facilities & Factories - Facility: Safety and Security Systems |
Height | 1.06 in |
Weight | .19 lb |
Standard | CE,CSA C22.2,UL |
Connection Type | Ferrule |
Family Brand Name | Bussmann Series |
Class | J |
Tc Connection | Ferrule end X ferrule end |
Amperage | 60 Amp |
Response Time | 10 seconds at 500% |
End Type | Ferrule |
Interrupt Rating | 100 kA |
Element | Dual |
Sub Brand | Bussmann Series |
Blade Dimensions | 2.3800 IN X 1.0600 IN X 1.0600 IN |
