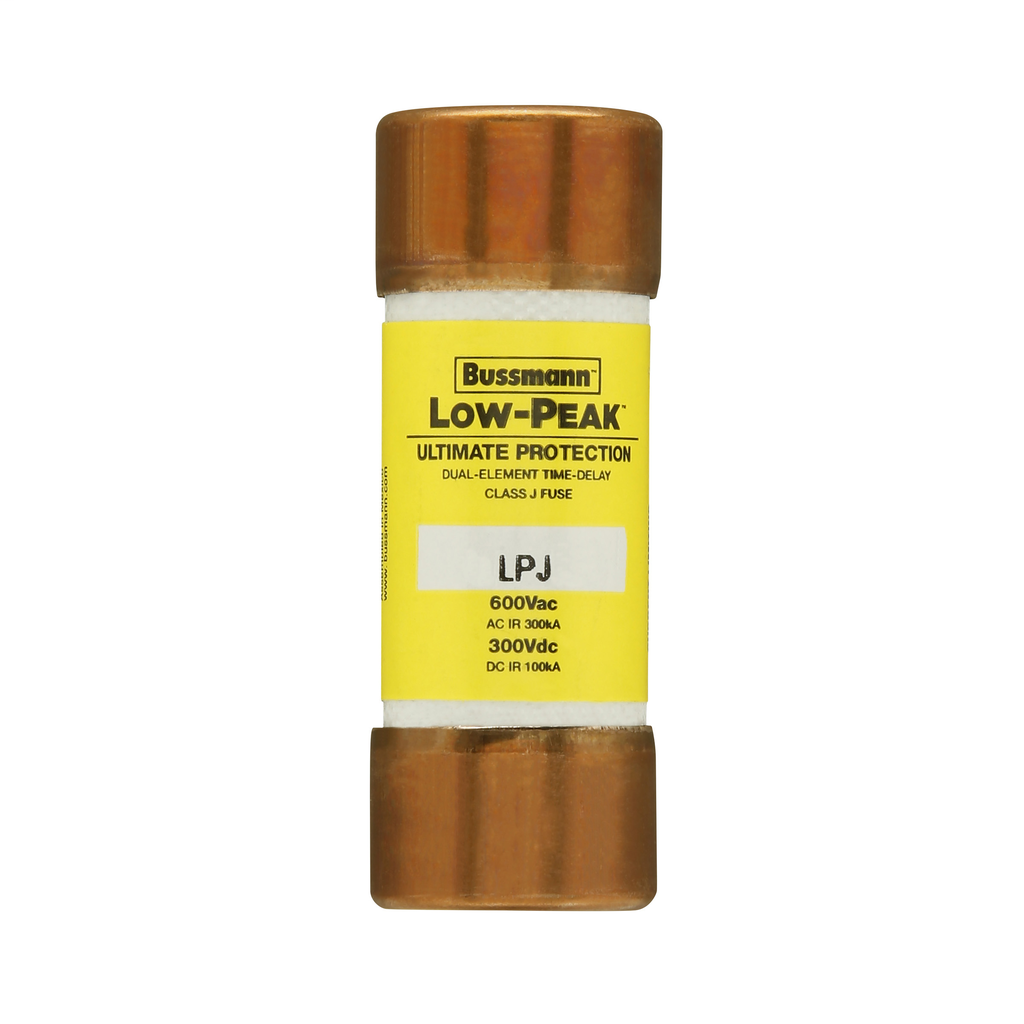

Bussmann Series LPJ-6SP Class J Low Peak Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
$24.57/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # LPJ-6SP
Codale Part # 43947

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC Vdc
  • Type: Current-limiting, Time-delay
  • Number Of Elements: Dual
  • Connection: Ferrule end X ferrule end
  • Response Time: 10 S at 500%
  • Class: Class J
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Specialized circuits and industrial control
  • Amperage Rating: 6A
  • Diameter: .81 IN
  • Packaging Type: Standard

General

  • UPC: 051712523264
  • Product Length/Depth: 2.25 IN
  • Product Height: .81 IN
  • Product Width: .81 IN
  • Product Weight: .19 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171252326
Codale Part No. 43947
Type Current-limiting, Time-delay
Application Specialized circuits and industrial control
Voltage Rating 600 Vac, 300 Vdc
Length .81 IN
Amperage Rating 6A
Connection Type Ferrule end X ferrule end
Width .81 IN
Height 2.25 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC Vdc
Diameter .81 IN
Weight .19 LB
Class Class J
Response Time 10 S at 500%
Packaging Type Standard
Item Long Description Eaton Bussmann Series LPJ Fuse,LPJ Low Peak,Current-limiting,time delay,6 A,600 Vac,300 Vdc,300000 A at 600 Vac,100 kAIC Vdc,Class J,10s at 500% response time,Dual element,Non-indicating,Ferrule end X ferrule end connection,0.81 in dia.
MDM Pkg GTiN 00051712523264
Length 2.25 in
Width .81 in
Size 0.81 In Diameter X 2.25 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter .81 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .81 in
Weight .19 lb
Standard CE,CSA C22.2,UL
Connection Type Ferrule
Family Brand Name Bussmann Series
Class J
Tc Connection Ferrule end X ferrule end
Amperage 6 Amp
Response Time 10 seconds at 500%
End Type Ferrule
Interrupt Rating 100 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 2.2500 IN X 0.8100 IN X 0.8100 IN
