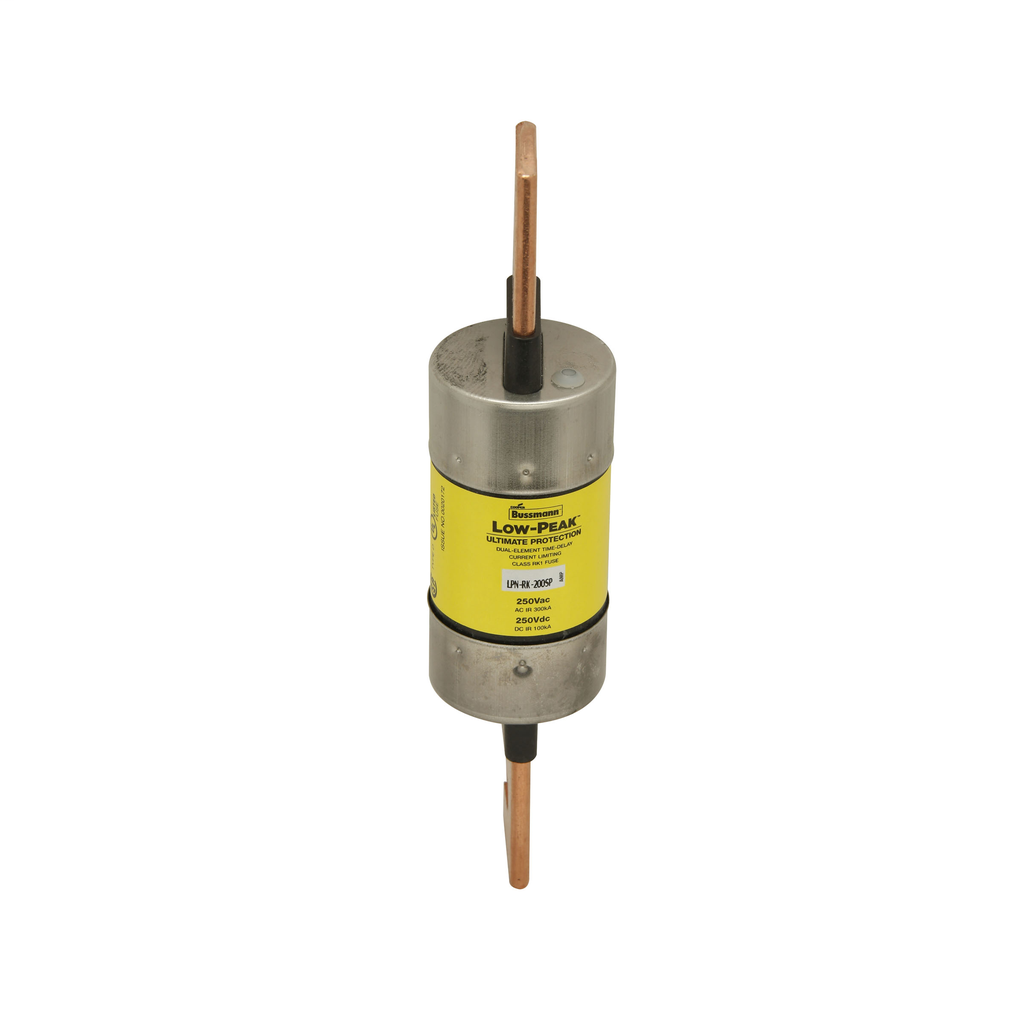

BUSSMANN LPNRK125SP 250V RK1 LOW PEAK DUAL-ELEMENT TIME-DELAY FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$89.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # LPN-RK-125SP
Codale Part # 44559
BUSSMANN LPNRK125SP 250V RK1 LOW PEAK DUAL-ELEMENT TIME-DELAY FUSE

Overview

UPC 05171253847
Codale Part No. 44559
Type Current-limiting, Time-delay
Application Large distribution switchboards, power panelboards, motor control centers
Voltage Rating 250 Vac, 250 Vdc
Length 4 IN
Amperage Rating 125A
Connection Type Blade end X blade end
Width 1 IN
Height 1 IN
Interrupt Rating 300 kAIC at 250 Vac, 100 kAIC at 250 Vdc
Diameter .61 IN
Weight .234 LB
Class Class RK1
Packaging Type Standard
Catalog Description LOW PEAK DUAL ELEMENT 125A 250V AC
Product Short Description Low Peak Fuse
MDM Item Long Description 125A 250V Class RK1
MDM Pkg GTiN 00051712538473
Length 7.13 in
Width 1 in
Size 0.61 In Diameter X 7.13 In Length
Voltage 250 Volt
Type Time-Delay,Current Limiting
Diameter .61 in
Applications Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
Height 1 in
Weight .69 lb
Standard CSA C22.2,CE,UL
Connection Type Blade
Family Brand Name Eaton
Class Class RK1
Tc Connection Blade End X Blade En
Amperage 125 Amp
Response Time 10 seconds at 500%
End Type Blade
Interrupt Rating 300 kA
Element Dual
Sub Brand Low-Peak
