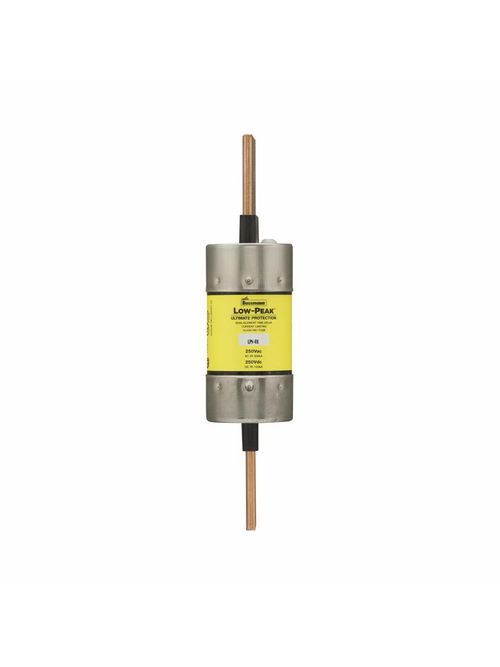

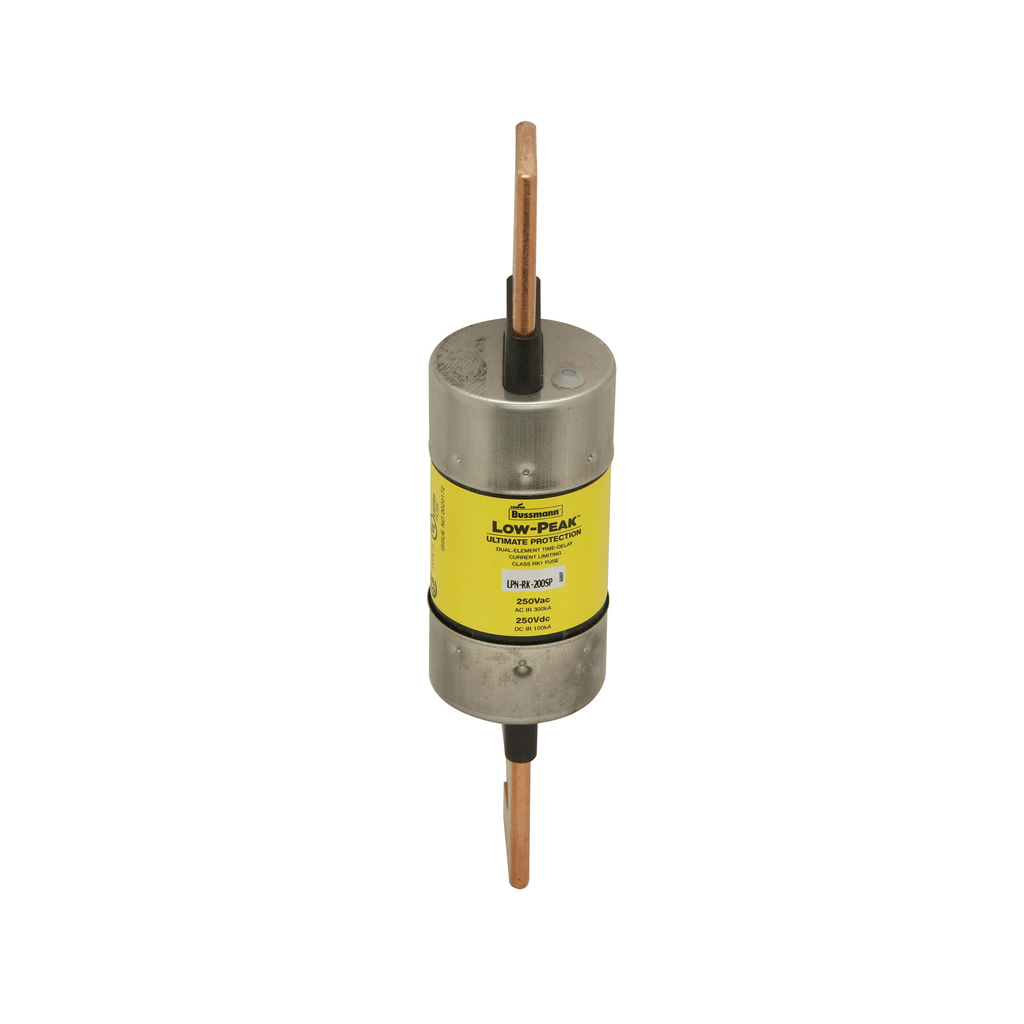

Low Peak Fuse | Codale Electric Supply

UPC	05171253850
Codale Part No.	44360
Type	Current-limiting, Time-delay
Application	Large distribution switchboards, power panelboards, motor control centers
Voltage Rating	250 Vac, 250 Vdc
Length	7.13 IN
Amperage Rating	200A
Connection Type	Blade end X blade end
Width	1.61 IN
Height	1.61 IN
Interrupt Rating	300 kAIC at 250 Vac, 100 kAIC at 250 Vdc
Diameter	.61 IN
Weight	.85 LB
Class	Class RK1
Packaging Type	Standard
Catalog Description	LOW PEAK DUAL ELEMENT
Product Short Description	Low Peak Fuse
Item Long Description	Eaton Bussmann Series LPN-RK Fuse,Low Peak Fuse,Current-Limiting,time delay,Electrically isolated end cap,200 A,250 Vac,250 Vdc,300 kAIC at 250 Vac,100 kAIC at 250 Vdc,Class RK1,Dual element,Blade end X blade end connection,1 unit
MDM Pkg GTiN	00051712538503
Length	7.13 in
Width	1.61 in
Size	0.61 In Diameter X 7.13 In Length
Voltage	250 Volt
Type	Current Limiting,Time-Delay
Diameter	.61 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	1.61 in
Weight	.69 lb
Standard	CE,CSA C22.2,UL
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	Class RK1
Tc Connection	Blade end x blade en
Amperage	200 Amp
Response Time	10 seconds at 500%
End Type	Blade
Interrupt Rating	100 kA
Element	Dual
Sub Brand	Bussmann Series
Blade Dimensions	7.1300 IN X 1.6100 I
