Manufacturer Eaton Bussmann
Mfg Catalog # LPN-RK-30SP
Codale Part # 44340

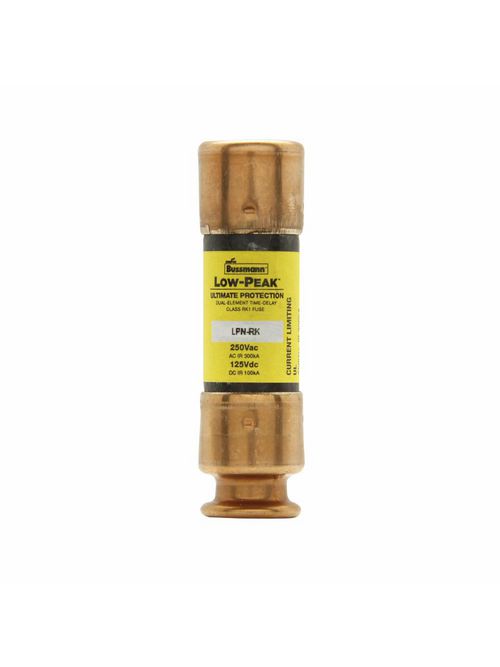

Low Peak Fuse

Overview

UPC 05171253836
Codale Part No. 44340
Type Current-limiting, Time-delay
Application Large distribution switchboards, power panelboards, motor control centers
Voltage Rating 250 Vac, 125 Vdc
Length 2 IN
Amperage Rating 30A
Connection Type Ferrule end X ferrule end
Width .56 IN
Height .56 IN
Interrupt Rating 300 kAIC at 250 Vac, 100 kAIC at 125 Vdc
Diameter .56 IN
Weight .5 LB
Class Class RK1
Response Time 8s at 500%
Packaging Type Standard
Catalog Description LOW PEAK DUAL ELEMENT
Product Short Description Low Peak Fuse
Item Long Description Eaton Bussmann Series LPN-RK Fuse, Low Peak Fuse, Current-Limiting, time delay, Electrically isolated end cap, 30 A, 250 Vac, 125 Vdc, 300 kAIC at 250 Vac, 100 kAIC at 125 Vdc, Class RK1, 8s at 500% response time, Dual element
MDM Pkg GTiN 00051712538367
Length 2 in
Width .56 in
Size 0.56 In Diameter X 2.00 In Length
Voltage 125 Volt
Type Current Limiting,Time-Delay
Diameter .56 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .56 in
Weight .5 lb
Standard CE,CSA C22.2,UL
Connection Type Ferrule
Family Brand Name Bussmann Series
Class Class RK1
Tc Connection Ferrule end x ferrul
Amperage 30 Amp
Response Time 8 seconds at 500%
End Type Ferrule
Interrupt Rating 100 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 2.0000 IN X 0.5600 I
