Manufacturer Eaton Bussmann
Mfg Catalog # LPS-RK-100SP
Codale Part # 44564

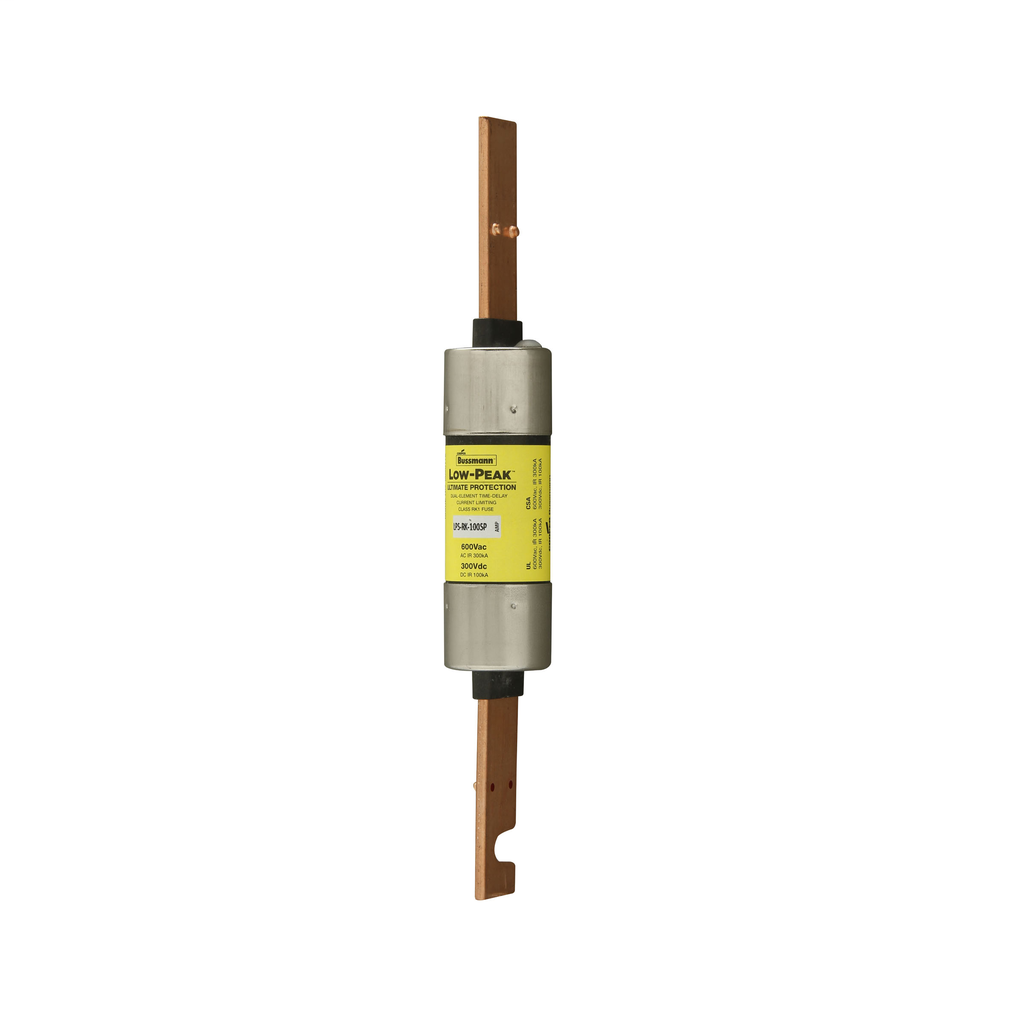

Low Peak Fuse

Overview

UPC 05171254845
Product Description LOW-PEAK DUAL ELEMENT
Codale Part No. 44564
Type Current-limiting, Time-delay
Application Large distribution switchboards, power panelboards, motor control centers
Voltage Rating 600 Vac, 300 Vdc
Length 7.88 IN
Amperage Rating 100A
Connection Type Blade end X blade end
Width 1.11 IN
Height 1.11 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Diameter 1.11 IN
Weight .4 LB
Class Class RK1
Packaging Type Standard
Catalog Description LOW-PEAK DUAL ELEMENT
Product Short Description Low Peak Fuse
Item Long Description Eaton Bussmann Series LPS-RK Fuse,Low Peak Fuse,Current-Limiting,time delay,Electrically isolated end cap,100 A,600 Vac,300 Vdc,300 kAIC at 600 Vac,100 kAIC at 300 Vdc,Class RK1,Dual element,Blade end X blade end connection,1 unit
MDM Pkg GTiN 00051712548458
Length 7.88 in
Width 1.11 in
Size 1.11 In Diameter X 7.88 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter 1.11 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 1.11 in
Weight 4 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class RK1
Tc Connection Blade end x blade en
Amperage 100 Amp
Response Time 10 S at 500%
End Type Blade
Interrupt Rating 100 kA
Sub Brand Bussmann Series
Blade Dimensions 7.8800 IN X 1.1100 I
MDM PRODUCT KEYWORD LLSRK100ID, LESRK100, LLSRK100, A6D100R
