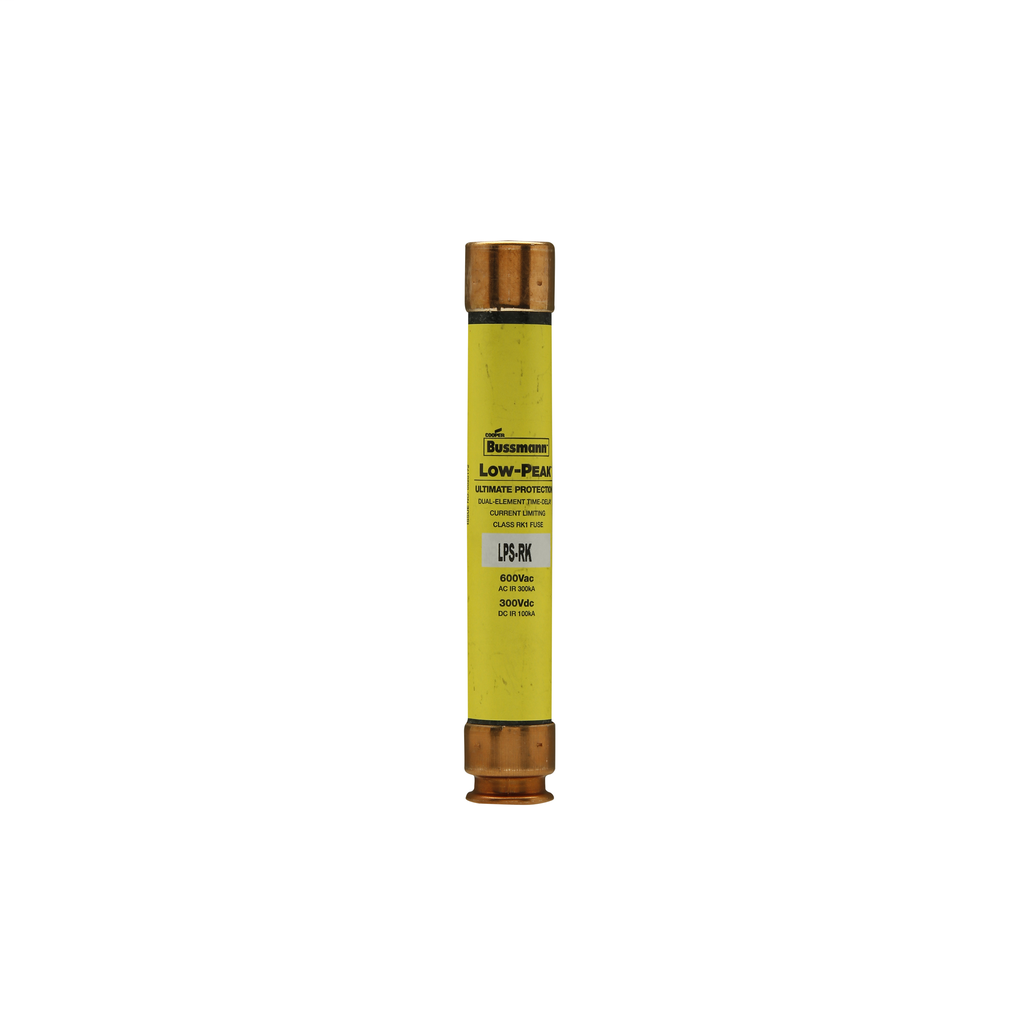

Low Peak Fuse | Codale Electric Supply

UPC	05171254834
Product Description	LOW-PEAK DUAL ELEMENT
Codale Part No.	44567
Type	Current-limiting, time delay
Application	Large distribution switchboards, power panelboards, motor control centers
Voltage Rating	600 Vac, 300 Vdc
Length	5 IN
Amperage Rating	20A
Connection Type	Ferrule end X ferrule end
Width	.81 IN
Height	.81 IN
Interrupt Rating	300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Diameter	.81 IN
Weight	.17 LB
Class	Class RK1
Response Time	10s at 500%
Packaging Type	Standard
Catalog Description	LOW-PEAK DUAL ELEMENT
Product Short Description	Low Peak Fuse
Item Long Description	Eaton Bussmann Series LPS-RK Fuse,Low Peak Fuse,Current-Limiting,time delay,20 A,600 Vac,300 Vdc,300 kAIC at 600 Vac,100 kAIC at 300 Vdc,Class RK1,10s at 500% response time,Dual element,Ferrule end X ferrule end connection,10 units
MDM Pkg GTiN	00051712548342
Length	5 in
Width	.81 in
Size	0.81 In Diameter X 5.00 In Length
Voltage	300 Volt
Type	Current Limiting,Time Delay
Diameter	.81 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	.81 in
Weight	1.6 lb
Standard	CE,CSA C22.2,UL
Connection Type	Ferrule
Family Brand Name	Bussmann Series
Class	Class RK1
Tc Connection	Ferrule end x ferrul
Amperage	20 Amp
Response Time	8 seconds at 500%
End Type	Ferrule
Interrupt Rating	100 kA
Element	Dual
Sub Brand	Bussmann Series
Blade Dimensions	5.0000 IN X 0.8100 I
MDM PRODUCT KEYWORD	LLSRK020, A6D20R, LESRK20, LLSRK020ID
