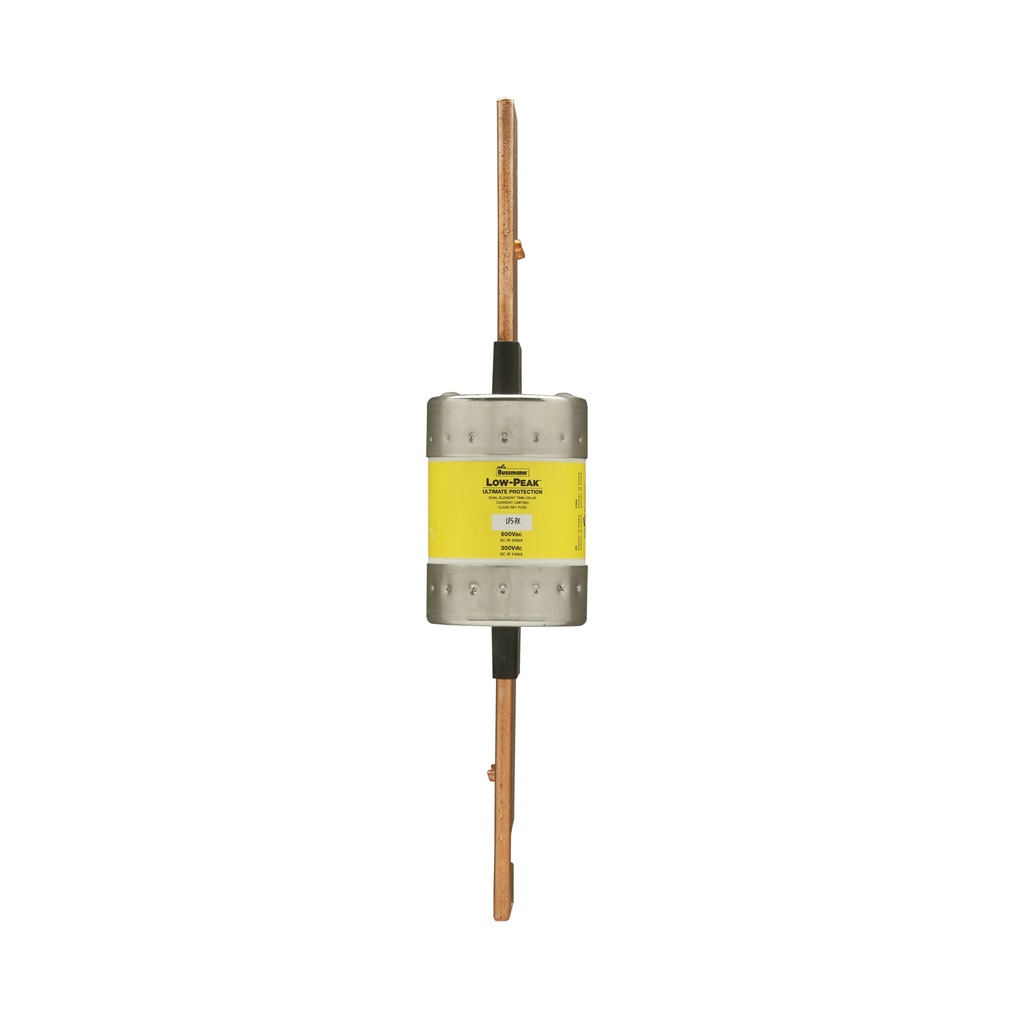

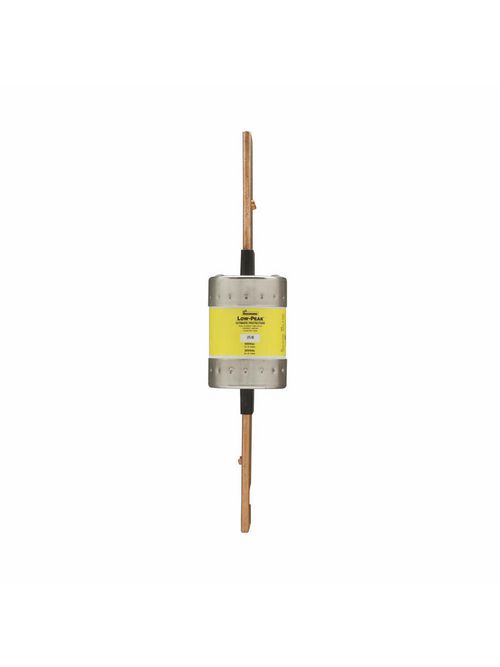

Bussmann Series LPS-RK-300SP Low Peak Dual Element Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$370.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # LPS-RK-300SP
Codale Part # 44571

Specifications

  • Fuse Indicator: Non Indicating
  • Special Features: Electrically isolated end cap
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
  • Number Of Elements: Dual
  • Connection: Blade end X blade end
  • Quantity: Carton: 1
  • Amperage Rating: 300 A
  • Type: Current-limiting, Time-delay
  • Class: Class RK1
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Large distribution switchboards, power panelboards, motor control centers
  • Diameter: 2.36 IN
  • Packaging Type: Standard

General

  • UPC: 051712548533
  • Product Length/Depth: 11.63 IN
  • Product Height: 2.36 IN
  • Product Width: 2.36 IN
  • Product Weight: 4.6 LB
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant

Overview

UPC 05171254853
Codale Part No. 44571
Type Current-limiting, Time-delay
Application Large distribution switchboards, power panelboards, motor control centers
Voltage Rating 600 Vac, 300 Vdc
Length 11.63 IN
Amperage Rating 300A
Connection Type Blade end X blade end
Width 2.36 IN
Height 2.36 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Diameter 2.36 IN
Weight 2.35 LB
Class Class RK1
Packaging Type Standard
Item Long Description Eaton Bussmann Series LPS-RK Fuse,Low Peak,Current-Limiting,time delay,Electrically isolated end cap,300 A,600 Vac,300 Vdc,300 kAIC at 600 Vac,100 kAIC at 300 Vdc,Class RK1,Dual element,Blade end X blade end connection,1 unit,LPS-RK1 series
Length 11.63 in
Size 2.36 In Diameter X 11.63 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter 2.36 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 2.36 in
Weight 4.6 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class RK1
Tc Connection Blade end x blade end
Amperage 300 Amp
Response Time 10 S at 500%
End Type Blade
Interrupt Rating 100 kA
Sub Brand Bussmann Series
Blade Dimensions 11.6300 IN X 2.3600 IN X 2.3600 IN
