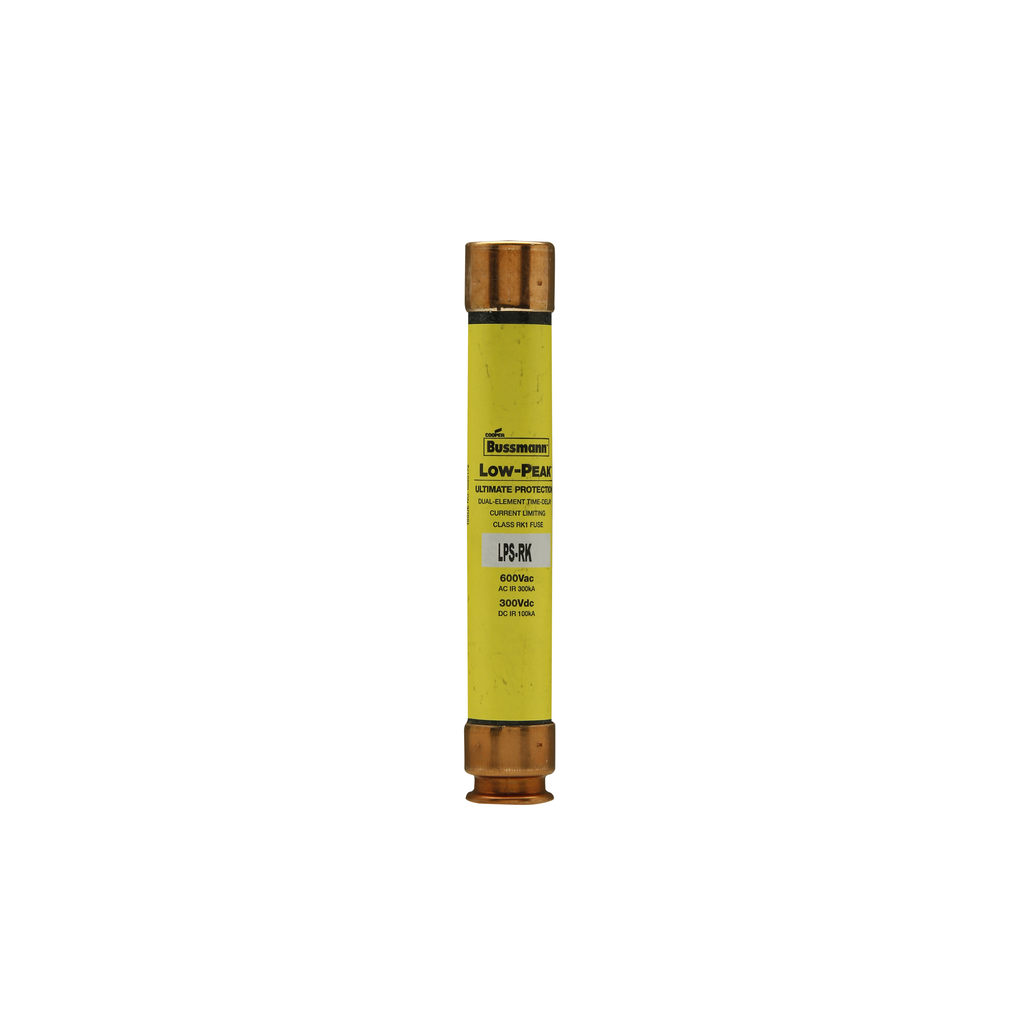

Low Peak Fuse
Product image thumbnail 0
Product image thumbnail 1
$25.17/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # LPS-RK-30SP
Codale Part # 44570
Low Peak Fuse

Overview

UPC 05171254836
Product Description LOW-PEAK DUAL ELEMENT
Codale Part No. 44570
Type Current-limiting, time delay
Application Large distribution switchboards, power panelboards, motor control centers
Voltage Rating 600 Vac, 300 Vdc
Length 5 IN
Amperage Rating 30A
Connection Type Ferrule end X ferrule end
Width .81 IN
Height .81 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Diameter .81 IN
Weight .17 LB
Class Class RK1
Response Time 10s at 500%
Packaging Type Standard
Catalog Description LOW-PEAK DUAL ELEMENT
Product Short Description Low Peak Fuse
Item Long Description Eaton Bussmann Series LPS-RK Fuse,Low Peak Fuse,Current-Limiting,time delay,30 A,600 Vac,300 Vdc,300 kAIC at 600 Vac,100 kAIC at 300 Vdc,Class RK1,10s at 500% response time,Dual element,Ferrule end X ferrule end connection,10 units
MDM Pkg GTiN 00051712548366
Length 5 in
Width .81 in
Size 0.81 In Diameter X 5.00 In Length
Voltage 300 Volt
Type Current Limiting,Time Delay
Diameter .81 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .81 in
Weight 1.6 lb
Standard CE,CSA C22.2,UL
Connection Type Ferrule
Family Brand Name Bussmann Series
Class Class RK1
Tc Connection Ferrule end x ferrul
Amperage 30 Amp
Response Time 8 seconds at 500%
End Type Ferrule
Interrupt Rating 100 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 5.0000 IN X 0.8100 I
