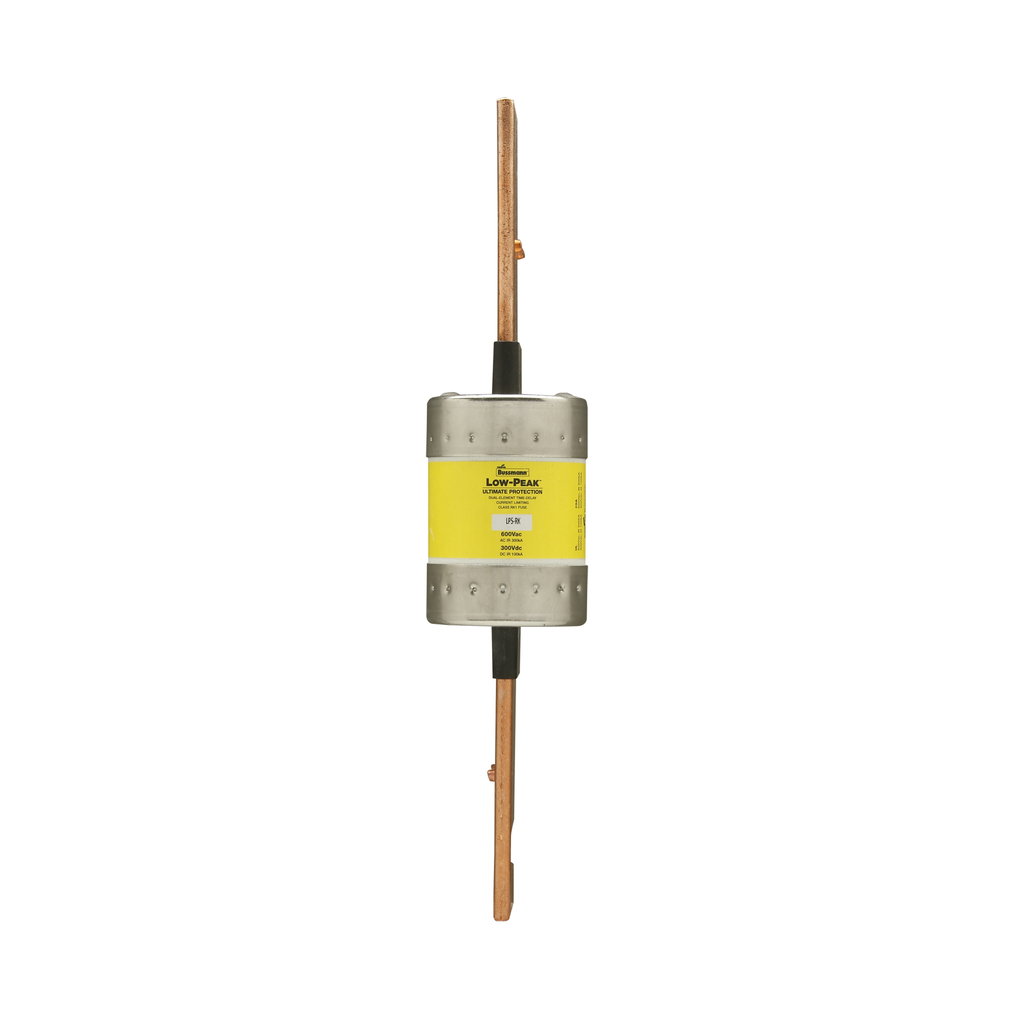

Low Peak Fuse

UPC	05171254855
Product Description	LOW-PEAK DUAL ELEMENT
Codale Part No.	44573
Type	Current-limiting, Time-delay
Application	Large distribution switchboards, power panelboards, motor control centers
Voltage Rating	600 Vac, 300 Vdc
Length	11.63 IN
Amperage Rating	400A
Connection Type	Blade end X blade end
Width	2.36 IN
Height	2.36 IN
Interrupt Rating	300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Diameter	2.36 IN
Weight	2.35 LB
Class	Class RK1
Packaging Type	Standard
Catalog Description	LOW-PEAK DUAL ELEMENT
Product Short Description	Low Peak Fuse
MDM Item Long Description	LOW-PEAK DUAL ELEMEN
MDM Pkg GTiN	00051712548557
Length	11.63 in
Width	2.36 in
Size	2.36 In Diameter X 11.63 In Length
Voltage	300 Volt
Type	Time-Delay,Current Limiting
Diameter	2.36 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	2.36 in
Weight	4.6 lb
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	Class RK1
Tc Connection	Blade end x blade en
Amperage	400 Amp
Response Time	10 S at 500%
End Type	Blade
Interrupt Rating	100 kA
Sub Brand	Bussmann Series
Blade Dimensions	11.6300 IN X 2.3600
