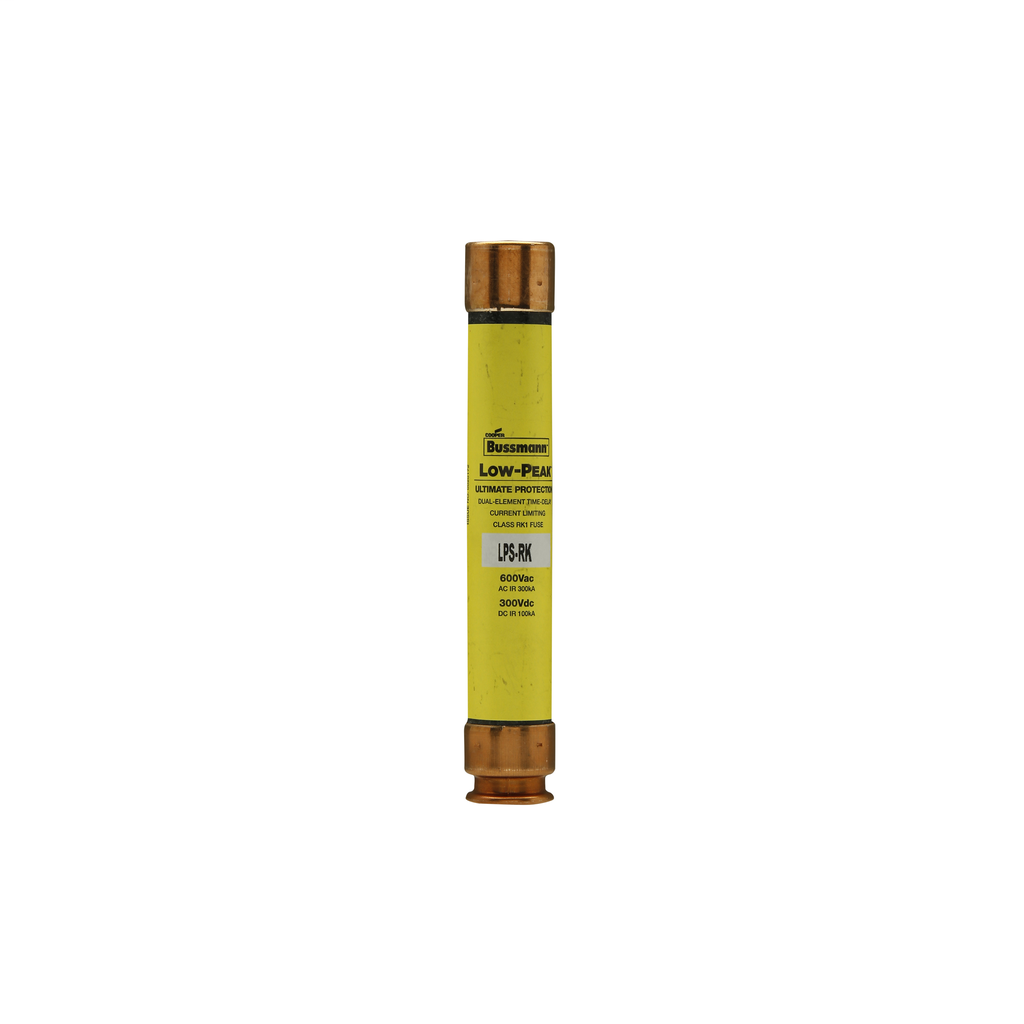

BUSSMANN LPSRK4SP 600V RK1 LOW PEAK DUAL-ELEMENT TIME-DELAY FUSE
Product image thumbnail 0
Product image thumbnail 1
$24.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # LPS-RK-4SP
Codale Part # 43982
BUSSMANN LPSRK4SP 600V RK1 LOW PEAK DUAL-ELEMENT TIME-DELAY FUSE

Overview

UPC 05171254821
Codale Part No. 43982
Type Current-limiting, time delay
Application Large distribution switchboards, power panelboards, motor control centers
Voltage Rating 600 Vac, 300 Vdc
Length 5 IN
Amperage Rating 4A
Connection Type Ferrule end X ferrule end
Width .81 IN
Height .81 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Diameter .81 IN
Weight .17 LB
Class Class RK1
Response Time 10s at 500%
Packaging Type Standard
Catalog Description LOW-PEAK DUAL ELEMENT
Product Short Description Low Peak Fuse
MDM Item Long Description 4A 600V Class RK1 Lo
MDM Pkg GTiN 00051712548212
Length 5 in
Width .81 in
Size 0.81 In Diameter X 5.00 In Length
Voltage 300 Volt
Type Current Limiting,Time Delay
Diameter .81 in
Applications Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
Height .81 in
Weight 1.6 lb
Standard CE,CSA C22.2,UL
Connection Type Ferrule
Family Brand Name Eaton
Class Class RK1
Tc Connection Ferrule End X Ferrul
Amperage 4 Amp
Response Time 8 seconds at 500%
End Type Ferrule
Interrupt Rating 300 kA
Element Dual
Sub Brand Low-Peak
