Manufacturer Eaton Bussmann
Mfg Catalog # LPS-RK-600SP
Codale Part # 44577

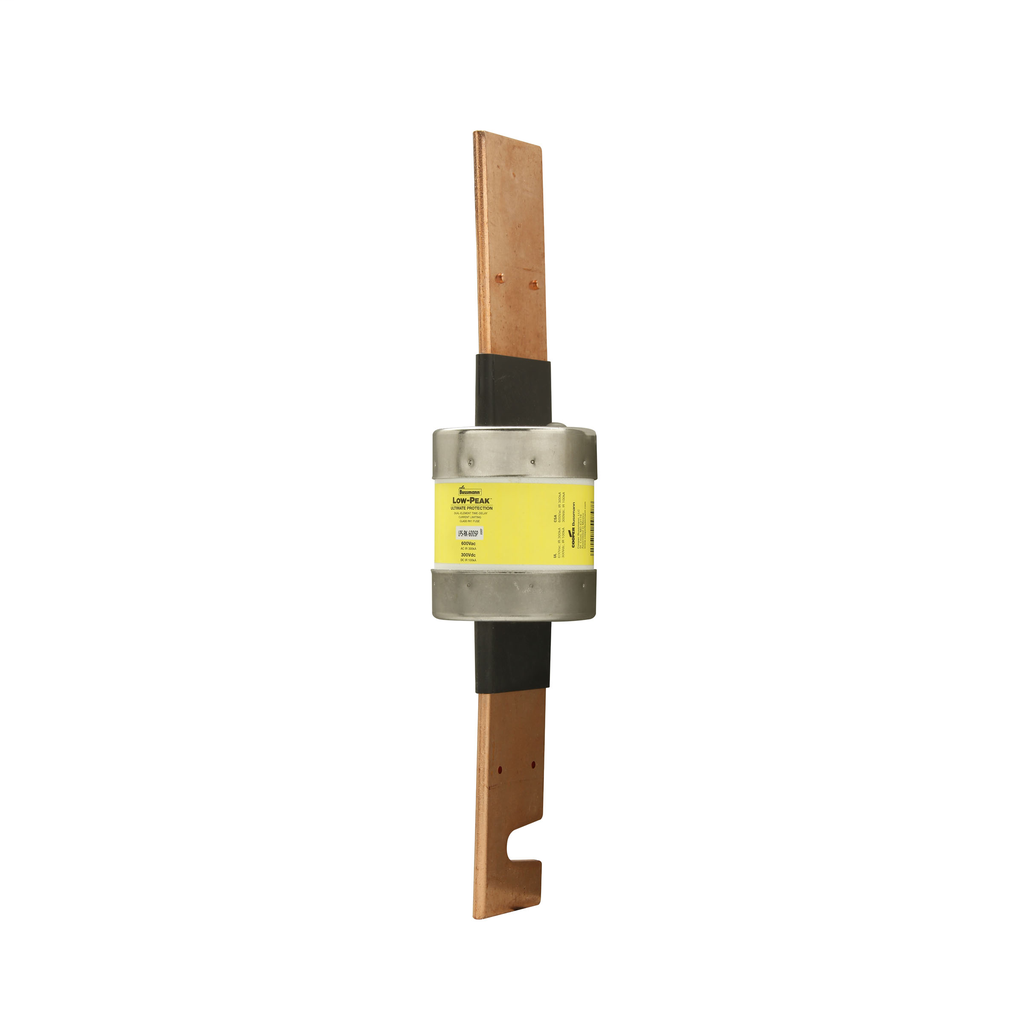

Low Peak Fuse


UPC 05171254858
Codale Part No. 44577
Type Current-limiting, Time-delay
Application Large distribution switchboards, power panelboards, motor control centers
Voltage Rating 600 Vac, 300 Vdc
Length 13.38 IN
Amperage Rating 600A
Connection Type Blade end X blade end
Width 2.88 IN
Height 2.88 IN
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Diameter 2.88 IN
Weight 3.6 LB
Class Class RK1
Packaging Type Standard
Catalog Description LOW-PEAK DUAL ELEMENT
Product Short Description Low Peak Fuse
Item Long Description Eaton Bussmann Series LPS-RK Fuse,Low Peak,Current-Limiting,time delay,Electrically isolated end cap,600 A,600 Vac,300 Vdc,300 kAIC at 600 Vac,100 kAIC at 300 Vdc,Class RK1,Dual element,Blade end X blade end connection,1 unit,LPS-RK1 series
MDM Pkg GTiN 00051712548588
Length 13.38 in
Width 2.88 in
Size 2.88 In Diameter X 13.38 In Length
Voltage 600 Volt
Type Current Limiting,Time-Delay
Diameter 2.88 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 2.88 in
Weight 5.6 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class RK1
Tc Connection Blade end x blade en
Amperage 600 Amp
Response Time 10 S at 500%
End Type Blade
Interrupt Rating 100 kA
Sub Brand Bussmann Series
Blade Dimensions 13.3800 IN X 2.8800
